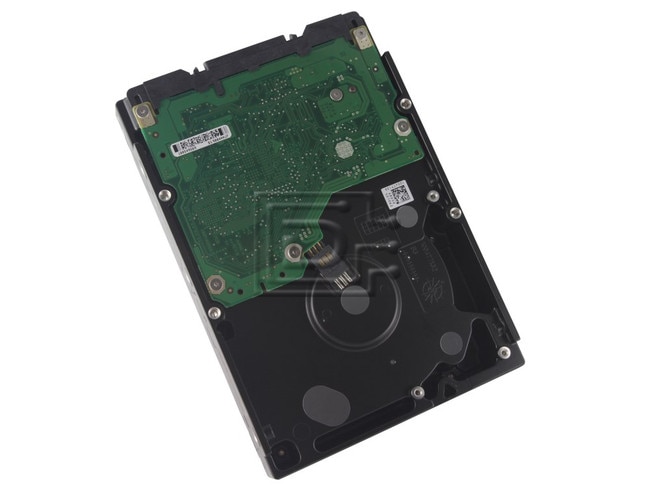

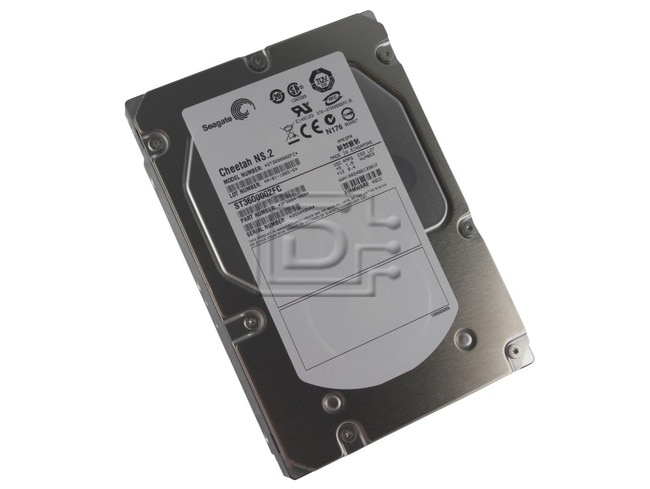

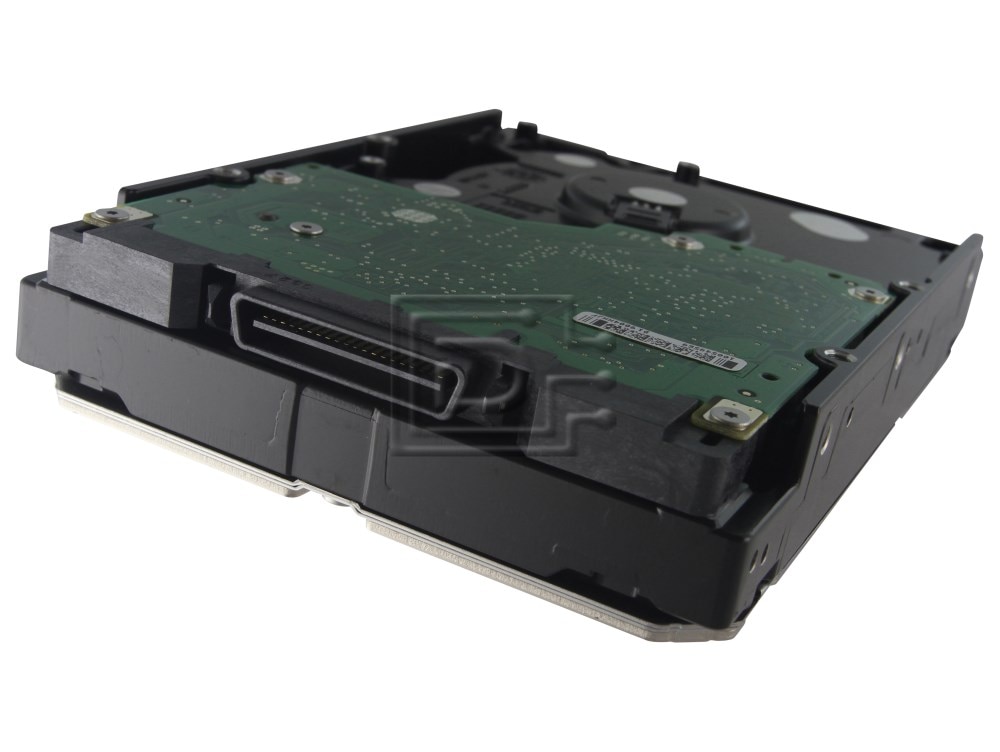

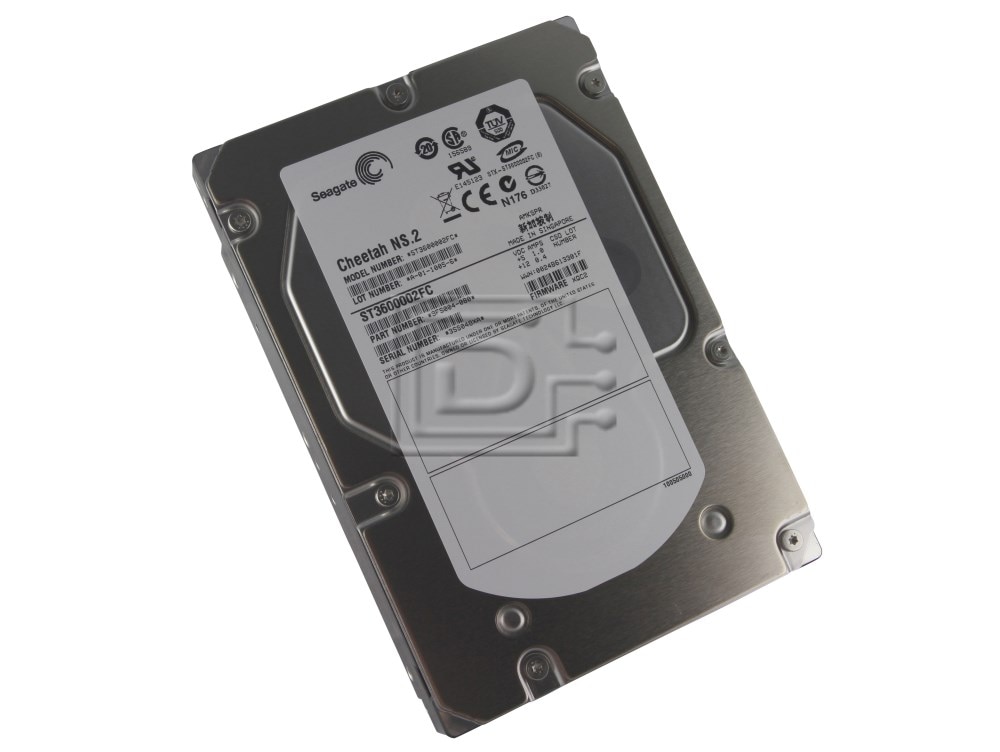

Seagate ST3600002FC 600GB Fibre / Fiber Channel Hard Drive
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 600GB |
| Speed: | 10K RPM |
| Interface Types: | Fibre Channel - Internal - Arbitrated Loop ASA II |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | FC-AL - 4Gbps |
| RAM: | 16MB |
Description
Seagate Cheetah NS.2 ST3600002FC 600GB 10K RPM 4Gbps Fibre / Fiber Channel Hard Drive - Refurbished
Seagate Cheetah NS.2 ST3600002FC 600GB 10000 RPM 4Gbps Fibre / Fiber Channel Hard Drive - Refurbished
Cheetah® NS.2
Lowest power, highest reliability for 3.5-inch Tier 1 solutions
Lowest Cost of Ownership
- The Seagate Cheetah NS.2 drive is the lowest-power, highest-capacity and highest-reliability solution for 3.5-inch Tier 1 requirements
- Lower watts/GB ratio helps achieve reduced power and cooling costs while optimizing capacity requirements
MTBF Improvement
- Seagate continues to focus on reliability and data protection. MTBF is increased to 1.6 million hours
- Enhanced error correction code better maintains performance throughout the life of the drive and reduces the probability of lost data
- Seagate-exclusive Background Media Scan proactively scans the media for potential defects during drive idle time. It enables incipient errors to be corrected before data is lost
- Our Quick and Robust Download feature loads new firmware in less than two seconds and built-in protection ensures no corruption in the event of a power failure during firmware switch
Compatibility
This drive is compatible with any of our Fibre / Fiber Channel adapters and also with any of our Fibre / Fiber hot-swap trays.
Specifications
| Specifications | |
|---|---|
| Model Number | ST3600002FC |
| Capacity | |
| Formatted 512 KB/Sector (GB) | 600 |
| Performance | |
| External Transfer Rate (MB/s) | 400 |
| Spindle Speed (RPM) | 10K |
| Average Latency (ms) | 3.00 |
| Seek Time | |
| - Average Read/Write (ms) | 3.8/4.4 |
| - Track-to-Track Read/Write (ms) | 0.2/0.2 |
| Transfer Rate | |
| Maximum Internal (Mb/s) | 1,840 |
| Typical Sustained (MB/s) | 150 |
| Cache, Multi-segmented (MB) | 16 |
| Configuration/Reliability | |
| Discs | 4 |
| Heads | 8 |
| Reliability Rating at Full 24x7 Operation (Annualised Failure Rate/MTBF hours) | 0.55%/1,600,000 |
| Power | |
| Typical Operating (W) | 10.07 |
| Idle (W) | 6.49 |
| Environmental | |
| Temperature, Operating (°C) | 5 to 55 |
| Temperature, Non-operating (°C) | -40 to 70 |
| Shock, Operating (Read Only): 2 ms (Gs) | 60 |
| Shock, Non-operating, 2 ms (Gs) | 300 |
| Acoustics, Idle (bels — sound power) | 3.3 |
| Vibration, Operating (Gs) | 1.0 |
| Vibration, Non-operating (Gs) | 3.0 |
| Physical | |
| Height (in/mm) | 1.0/25.4 |
| Width (in/mm) | 4.0/101.6 |
| Depth (in/mm) | 5.76/146.52 |
| Weight (lb/kg) | 1.51/0.686 |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 9FS004-080
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
Warranty
1 Year DiscTech Warranty
