Seagate Part #/MPN: ST360021A
DiscTech Item #: SGT-ST360021A-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Capacity: 60GB
Speed: 7,200RPM
Interface Types: IDE ATA 3.5in
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Average Seek Time: 9.5 / 10.5
Electrical Interface: EIDE Ultra ATA100 100MBps
On-Board Cache: 2MB

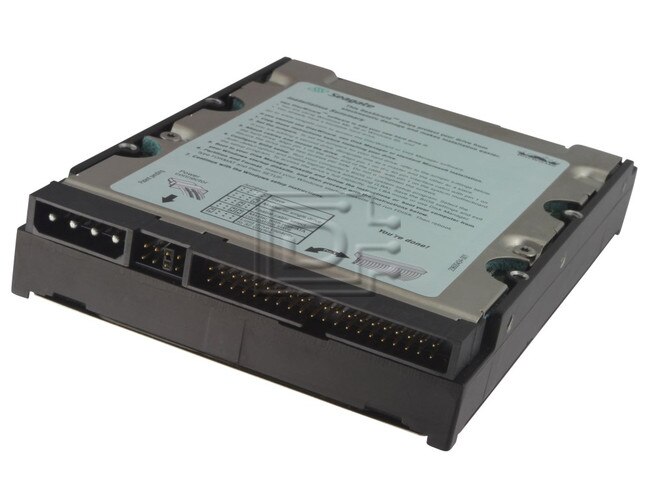

Seagate Barracuda ATA IV ST360021A 60GB 7.2K Ultra ATA-100 HDD - Refurbished
Alt MPN: 9T6001-103
Seagate Barracuda ATA IV ST360021A 60GB 7200 RPM Ultra ATA-100 Hard Drive - Refurbished
These drives provide the following key features:
- 7,200-RPM spindle speed and 2-Mbyte buffer combine for superior desktop performance
- High instantaneous (burst) data-transfer rates (up to 100 Mbytes persecond) using Ultra DMA mode 5
- Giant magnetoresistive (GMR) recording heads and EPRML technology, which provide the drives with increased areal density
- State-of-the-art cache and on-the-fly error-correction algorithms
- Full-track multiple-sector transfer capability without local processor intervention
- Quiet operation
- 350 Gs nonoperating shock
- The innovative, shock-absorbing SeaShield® cover protects the drive against electrostatic discharge (ESD) and other handling damage. It also includes installation instructions and jumper settings.
- SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
- The 3D Defense System™, which includes Drive Defense, Data Defense and Diagnostic Defense, offers the industry’s most comprehensive protection for disc drives.
- Support for S.M.A.R.T. drive monitoring and reporting
- Support for Read Multiple and Write Multiple commands
- Support for autodetection of master/slave drives that use cable select (CSEL)
Compatibility:
This drive is compatible with any server that accepts 3.5" x 1" (LFF) ATA-100 drives.
| PERFORMANCE SPECIFICATIONS | |
|---|---|
| Model Number | ST360021A |
| Capacity | 60GB |
| Guaranteed sectors | 117,231,408 |
| Bytes per sector | 512 |
| Default sectors per track | 63 |
| Default read/write heads | 16 |
| Default cylinders | 16,313 |
| Physical read/write heads | 3 |
| Discs | 2 |
| Recording density BPI (bits/inch max) | >540,000 |
| Track density TPI (tracks/inch max) | 58,000 |
| Areal density (Mbits/inch max) | 31,300 |
| Spindle speed (RPM) | 7,200 |
| Internal data-transfer rate OD (Mbits/sec max) | 555 |
| I/O data-transfer rate | 100 |
| ATA data-transfer modes supported | PIO mode 0-4 Multiword DMA modes 0-3 Ultra DMA modes 0-5 |
| Cache buffer | 2 Mbytes |
| Height (mm max) | 26.1 |
| Width (mm max) | 101.8 |
| Length (mm max) | 147.0 |
| Weight (typical) | 635 grams (1.4 lb) |
| Average latency (msec) | 4.16 |
| Power-on to ready (sec typical) | 10 sec |
| Standby to ready (sec typical) | 10 sec |
| Startup current (typical) 12V (peak) | 2.8 amps |
| Track-to-track seek (msec typical) | 1.0 (read) 1.2 (write) |
| Average seek time (msec typical) | 9.5 |
| Average seek, read (msec typical) | 9.5 |
| Average seek, write (msec typical) | 10.5 |
| Seek power (typical) | 13.0 watts |
| Read/write power (typical) | 12.5 watts |
| Idle mode (typical) | 9.8 watts |
| Standby mode | 1.15 watts (typical 1.3 watts (max) |
| Sleep mode | 0.9 watts (typical) 1.1 watts (max) |
| Voltage tolerance (including noise) | 5V +/- 5% 12V +/- 10% |
| Ambient temperature | 0° to 60°C (op.) -40° to 70°C (nonop.) |
| Temperature gradient (°C per hour max) | 20°C (op) 30°C (nonop) |
| Relative humidity (op and nonop) | 5% to 90% (op) 5% to 95% (nonop) |
| Relative humidity gradient | 30% per hour max |
| Wet bulb temperature (°C max) | 30 (op) 40 (nonop) |
| Altitude, operating | -198.12 m to 3,048 m (-650 ft to 10,000+ ft) |
| Altitude, nonoperating (meters below mean sea level, max) | -198.12 m to 12,192 m (-650 ft to 40000+ ft) |
| Shock, operating (GS max at 2 msec) | 63 |
| Shock, nonoperating (GS max at 2 msec) | 350 Gs |
| Vibration, operating | 0.5 Gs (0 to peak, 22-350 Hz) |
| Vibration, nonoperating | 5 Gs (0 to peak, 22-350 Hz) |
| Drive acoustics Sound power (bels) FDB: Idle Quiet seek Performance seek | 2.5 (typical), 2.7 (max) 2.8 (typical, 3.0 (max) 3.3 (typical), 3.6 (max) |
| Nonrecoverable read errors | 1 per 10e14 bits read |
| Mean time between failures (power-on-hours) | 600,000 |
| Contact start-stop cycles (25°C, 40% relative humidity) | 50,000 |
| SeaShield | Yes |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 9T6001-103
