Seagate Part #/MPN: ST3750640AS
DiscTech Item #: SGT-ST3750640AS-NP-OE-DEL
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 750GB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: Up to 78
Average Seek Time: 4.16
Electrical Interface: SATA 300 - 3.0Gbps
On-Board Cache: 16MB

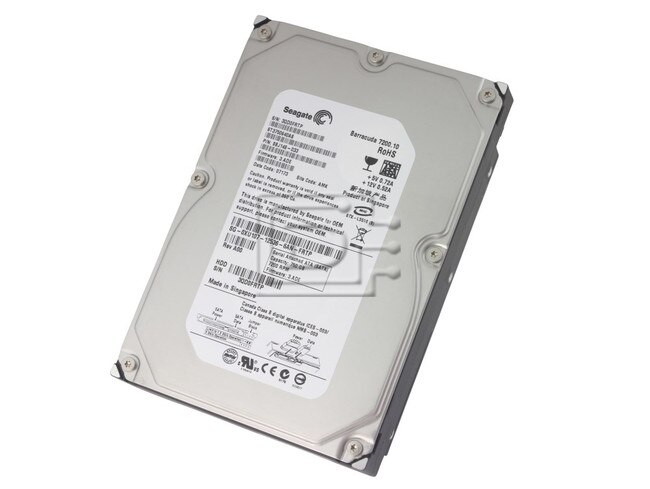

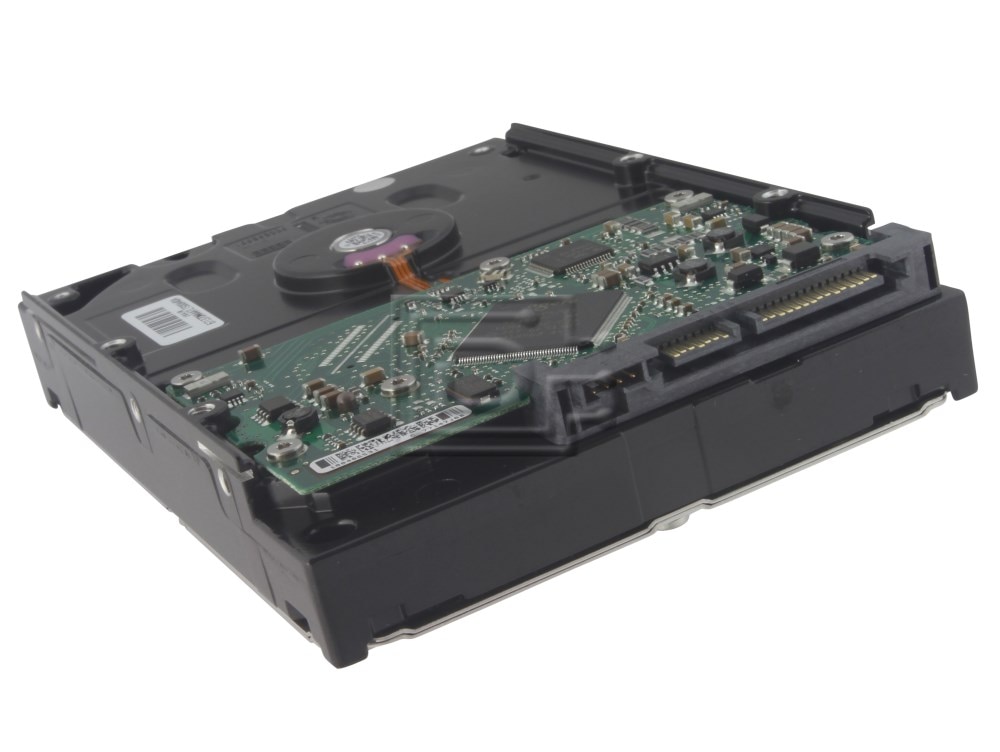

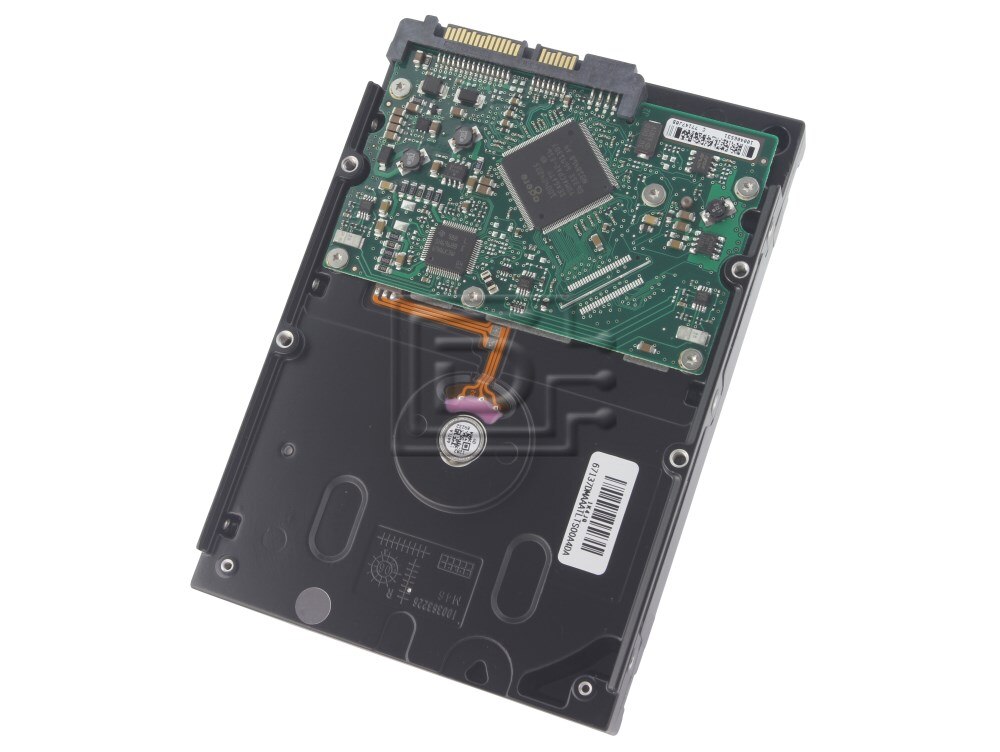

Seagate Barracuda 7200.10 750GB 7.2K SATA Hard Drive ST3750640AS - New Pull OEM
Seagate Barracuda 7200.10 750GB 7.2K SATA Hard Drive ST3750640AS - Brand New OEM
With up to 750GB of pure digital storage in a single drive, the Barracuda 7200.10 is the largest, most reliable disc drive around. New perpendicular recording technology supports vertically stored data bits, enabling increased areal density and dependability for workstations and performance PCs. Additionally, the Barracuda 7200.10 is available in SATA 3Gb/s, SATA 1.5Gb/s and ATA/100 interfaces.
Dell PN: XU107
SEAGATE TECHNOLOGY LLC 1-800-SEAGATE http://www.seagate.com (C)opyright 2006 ST-3750640AS (Barracuda 7200.10 750, Serial ATA NCQ) ÉÍÍÍÍÍÍÍÍÍÍÍ» º REAR VIEW º ÈÍÍÍÍÍÍÍÍÍÍͼ ÚÄÄTop (HDA)ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ~~~ÄÄÄÄÄÄ¿ ³ ³ ³ ³ ³ ________ ³ ÀÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ/ \ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ~~~ÄÄÄÄÄÄÙ ÍÍÍÚÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÌÍÍÚÑÑÑÑÑÑÑÌÍÍ͵ú ú ú úÆÍÍÍÍÍ~~~ÍÍÍÍÍÍÍ Ó 1Ó Ó 1Ó ³ ³ ÀÂÙ ³ ³ ³ ³ ÀÄ Limit external transfer ³ ³ ³ ³ rate to 1.5 Gbits/sec ³ ³ ÀÄÁÄÄÄÄ Reserved ³ ³ ³ ÀÄÄ Signal connector (7 pins) ÀÄÄÄÄÄÄÄÄÄÄÄ Power Connector (15 pins) P11 is Ground or LED signal. If grounded, drive does not use deferred spin. ST-3750640AS Barracuda 7200.10 FORMATTED CAPACITY (GB) __________________750.1 ACTUATOR TYPE ____________________________VOICE COIL HEADS ______PHYSICAL______________________8 DISCS (3.5 in) ___________________________4 MEDIA TYPE _______________________________THIN FILM HEAD TYPE ________________________________GMR RECORDING METHOD _________________________Perpendicular INTERNAL TRANSFER RATE (Mbits/sec) _______up to 1030 SUSTAINED TRANSFER RATE (Mbytes/sec)______up to 78 EXTERNAL TRANSFER RATE (Mbytes/sec) ______up to 300 PIO/DMA/UDMA MODE (max) __________________4/2/6 SPINDLE SPEED (RPM) ______________________7200 AVERAGE LATENCY (mSEC) ___________________4.16 BUFFER ___________________________________16MB Read/Write Multiple, Read Look-Ahead, Multi-Segmented INTERFACE ________________________________SATA 2.0 w/NCQ SECTORS PER DRIVE (LBA mode) _____________1,465,149,168 KTPI (KTRACKS PER INCH Avg) ______________133 BPI (KBITS PER INCH) _____________________up to 915 AVERAGE ACCESS (ms seek/read/write) ______/<8.5/<10.0 SINGLE TRACK SEEK (ms seek/read/write) ___/<0.8/<1.0 MAX FULL SEEK (ms seek/read/write) _______// ANNUALIZED FAILURE RATE (AFR) ____________0.34% SHOCK (G's, 11ms/2ms): operating (Read/Write) __________/68 abnormal ________________________ nonoperating ____________________/300 ACOUSTICS (bels) fluid bearing (typ/max-quiet/max-perf) _2.5//3.2 POWER DISSIPATION (watts) ________________ POWER REQUIREMENTS: +12V START-UP (amps) _2.8 POWER MANAGEMENT (Watts): ACTIVE _______________13.0 IDLE _________________9.3 STANDBY (typ/max) ____0.8/ Physical: Height (inches/mm): 1.028/26.1 Width (inches/mm): 4.00/101.6 Depth (inches/mm): 5.78/146.99 Weight (lb/g): 1.59/720 Set CMOS hard drive setup to Auto-Detect with LBA mode enabled. New INT13 Extensions and LBA mode in BIOS and FAT32 or NTFS-based file systems are required to acheive full capacity. FAT32 file system can create single partitions and logical drives up to 2TB. ======================== Windows XP Service Pack 1 and Windows 2000 Service Pack 3 with 48-bit LBA Address drivers are required for native support of ATA (IDE) disc drives greater than 137GB. Windows 98, Windows Millennium and Windows NT 4.x all have 137GB native limitations supporting ATA (IDE) disc drives. Third-party device drivers may be available from motherboard or host adapter manufacturers for these legacy Windows operating systems. Already low-level formatted at the factory. Seagate reserves the right to change, without notice, product offerings or specifications. (04/26/2006)
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 0XU107 XU107
Weight: 1.8 lb
Warranty: 1 Year DiscTech
