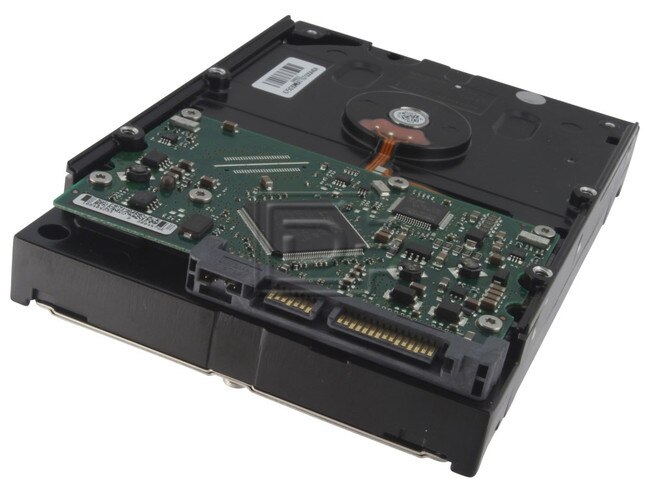

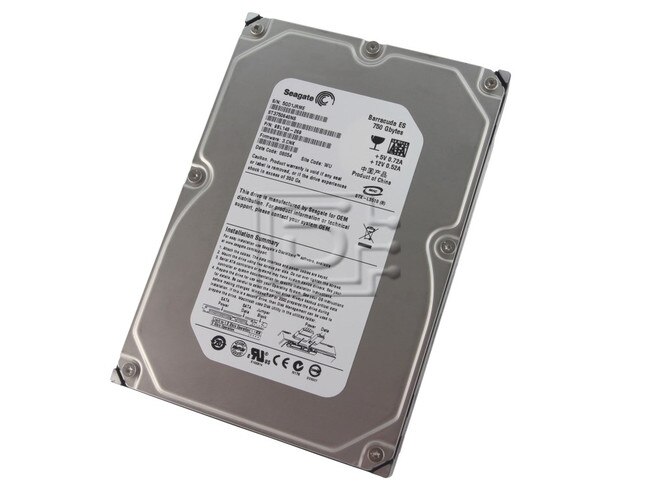

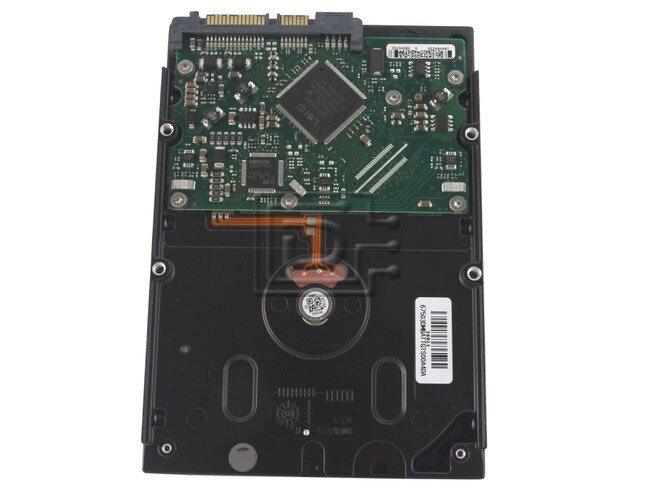

Seagate ST3750640NS SATA Hard Drive
- Brand NewCondition Levels Explained
The product is brand new.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 750GB |
| Speed: | 7.2K RPM |
| Interface Types: | SATA |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SATA 300 - 3Gbps |
| RAM: | 16MB |
Description
Seagate Barracuda ES ST3750640NS 750GB 7.2K Enterprise SATA Hard Drive - Brand New
The Seagate® Barracuda® ES enterprise hard drive is the industry’s most reliable, highest capacity 7200-RPM hard drive for 24 x 7, multidrive, business-critical applications. The Barracuda ES hard drive is built with perpendicular recording technology for maximum capacity, reliability and cost-effectiveness.
- * 7200-RPM spin speed
* 16-MB cache buffer
* Perpendicular recording technology for maximum capacity and reliability
* Native command queuing (NCQ) for enhanced performance
* Highest reliability rating for 24 x 7 operation
* Serial ATA (SATA) interface
* Best-in-class rotational vibration (RV) tolerance
* Multidrive firmware maximizes system availability
Compatibility:
This drive is compatible with any computer / server that accepts SATA hard drives.
Specifications
| Specifications | 750 GB |
|---|---|
| Model Number | ST3750640NS |
| Interface | SATA 3.0Gb/s |
| Cache | 16 MBytes |
| Capacity | 750 GB |
| Guaranteed Sectors | 1,465,149,168 |
| PHYSICAL | |
| Height (max) | 26.1 mm (1.028 inches) |
| Width (max) | 101.6 mm (4.000 inches) |
| Length (max) | 146.99 mm (5.787 inches) |
| Weight (typical) | 720 grams (1.59 pounds) |
| COMPLIANCE | |
| European Union Restriction of Hazardous Substances | Y |
| PERFORMANCE | |
| Spindle Speed | 7200 rpm |
| Native Command Queuing | Y |
| Average latency | 4.16 msec |
| Random read seek time | 8.50 msec |
| Random write seek time | 9.50 msec |
| Maximum interface transfer rate | 300 Mbytes/sec. |
| RELIABILITY | |
| MTBF | 1,200,000 hours |
| Annual Failure Rate | 0.73 % |
| Unrecoverable read errors | 1 in 10^14 |
| POWER | |
| Average idle current | 9.30 watts |
| Average seek power | 12.60 watts |
| Standby power | 0.80 watts |
| Sleep power | 0.807 watts |
| Maximum start current, DC | 2.80 amps |
| ENVIRONMENT | |
| Ambient Temperature | |
| Operating | 5 to 55 degrees C |
| Nonoperating | -40 to 70 degrees C |
| Maximum operating temperature change | 20 degrees C per hour |
| Maximum nonoperating temperature change | 30 degrees C per hour |
| Maximum operating case temperature | 69 degrees C |
| Relative Humidity | |
| Operating | 5 to 90 % |
| Nonoperating | 5 to 95 % |
| Maximum allowable humidity change | 30 % per hour |
| Altitude | |
| Operating altitude (min) | -60.96 meters (-200 feet) |
| Operating altitude (max) | 3,048 meters (10,000 feet) |
| Nonoperating altitude (min) | -60.96 meters (-200 feet) |
| Nonoperating altitude (max) | 12,192 meters (40,000 feet) |
| Shock | |
| Operating Shock (max) | 63 Gs at 2 msec |
| Nonoperating Shock (max) | 300 Gs at 2 msec |
| Vibration | |
| Operating vibration | 0.25 Gs at 5-22 Hz |
| Operating vibration | 0.50 Gs at 22-350 Hz |
| Operating vibration | 0.25 Gs at 350-500 Hz |
| Nonoperating vibration | 0.25 Gs at 5-22 Hz |
| Nonoperating vibration | 5.0 Gs at 22-350 Hz |
| Nonoperating vibration | 1.0 Gs at 350-500 Hz |
| ACOUSTICS | |
| Acoustics (Idle Volume) | 2.7 bels |
| Acoustics (Seek Volume) | 3.2 bels |
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
Brand New
Warranty
1 Year DiscTech Warranty
