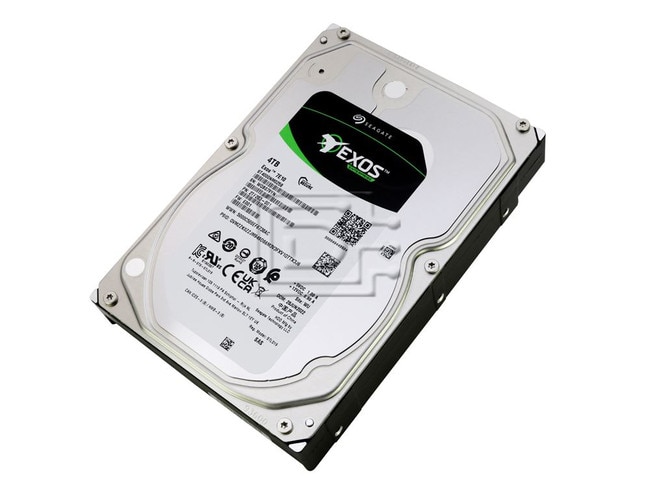

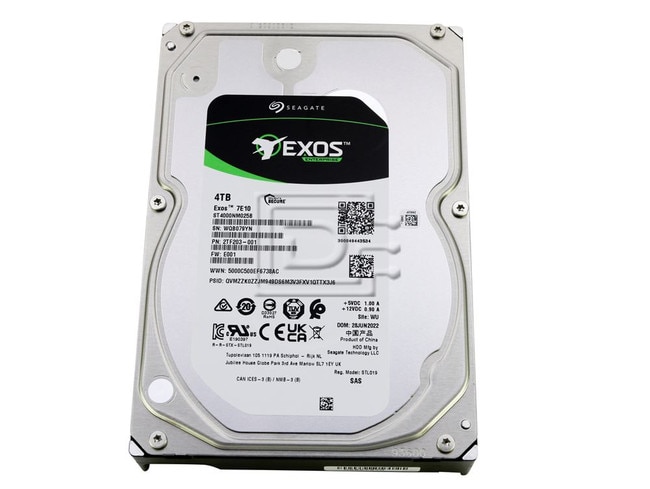

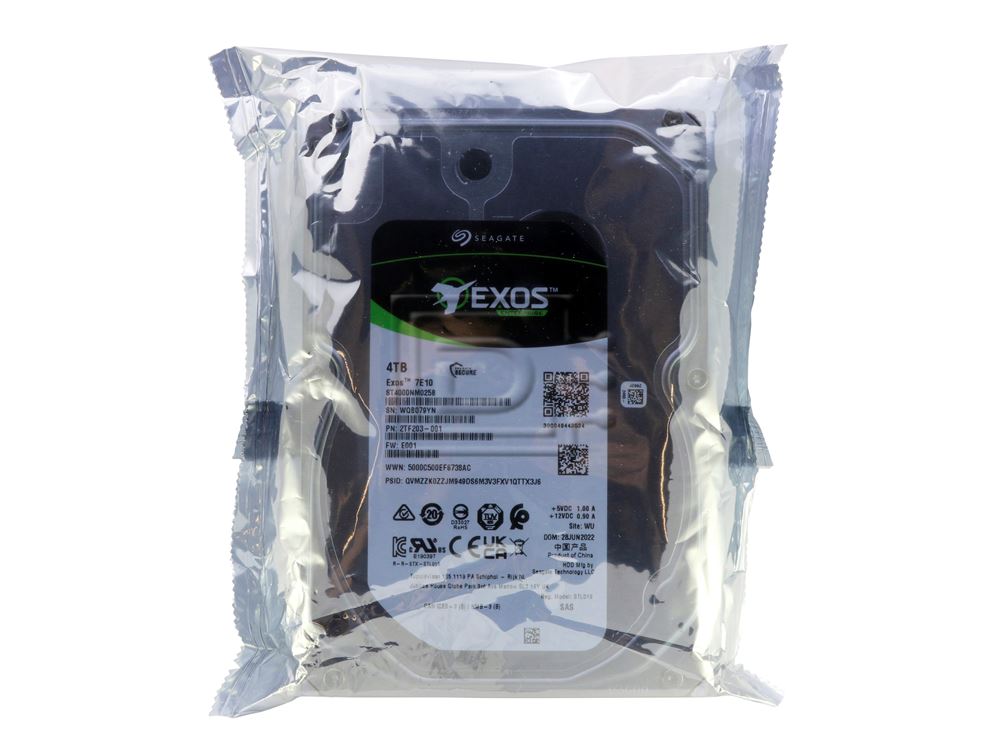

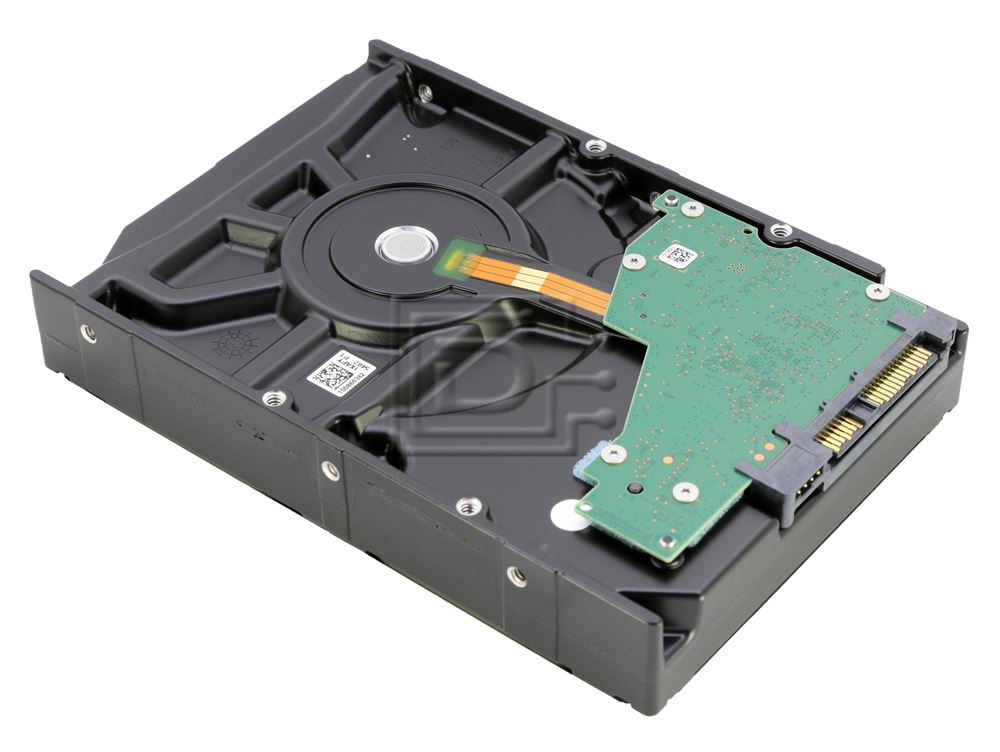

Seagate ST4000NM025B EXOS 7E10 4TB 3.5" LFF 12Gbps SAS 7.2K RPM Enterprise 512e Hard Disk
- Brand NewCondition Levels Explained
The product is brand new.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 5 Year ManufacturerWarrantyProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
| Capacity: | 4TB |
| Speed: | 7.2K RPM |
| Interface Types: | SAS |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SAS-3 12Gbps |
| RAM: | 256MB |
Description
Seagate ST4000NM025B EXOS 7E10 4TB 3.5" LFF 12Gbps SAS 7.2K RPM Enterprise 512e/4Kn FastFormat HDD - Brand New
Seagate ST4000NM025B EXOS 7E10 4TB 3.5" LFF 12Gbps SAS 7.2K RPM Enterprise 512e/4Kn FastFormat HDD - Brand New
Capacity-Optimised Enterprise Hard Drive for Bulk-Data Applications
- Highest-capacity large form factor enterprise drive – 50% more capacity over generation with 4TB – for demanding data growth.
- Fastest high capacity HDD with best-in-class random and sequential read/write performance.
- Eighth-generation drive technology for reliable access to bulk storage of unstructured data.
- 12Gb/s SAS interface for easy integration into replicated and RAID storage systems.
- Enhanced error correction, super parity and end-to-end SAS-based data integrity for accurate data storage
- Industry-leading rotational vibration tolerance ensures consistent performance.
- Improved power and cooling efficiencies with low power and consumption and on-demand PowerChoice™ technology based on T10/T13 power management standards.
- Engineered for 24x7 workloads of 550TB/yr – 10x that of desktop drives.
- Robust performance with processors, ramp load technology, top-cover-attached motor and humidity sensor for optimum performance in all chassis.
Best-Fit Applications
- Hyperscale applications
- High-capacity RAID storage
- Mainstream enterprise external storage arrays (SAN, NAS, DAS)
- Cloud data centers – replicated bulk data storage
- Enterprise backup and restore – D2D, virtual tape
- Centralized surveillance
Compatibility
This drive is compatible with any server that accepts 3.5" x 1.0" (LFF Hard Drive) 4TB SAS drives.
Specifications
| Drive Model | ST4000NM025B |
|---|---|
| Capacity | 4TB/4000GB |
| Model Series | EXOS 7E10 |
| Interface | SAS 12Gb/s |
| Features | |
| Protection Information (T10 DIF) | Yes |
| Humidity Sensor | Yes |
| Super Parity | Yes |
| Low Halogen | Yes |
| PowerChoice™ Technology | Yes |
| Cache, Multisegmented (MB) | 256 |
| Reliability/Data Integrity | |
| Mean Time Between Failures (MTBF) | 2.0M |
| Reliability Rating @ Full 24x7 Operation (AFR) | 0.44% |
| Nonrecoverable Read Errors per Bits Read | 1 sector per 10E15 |
| Power-On Hours per Year | 8760 (24x7) |
| Sector Size (Bytes per Sector) | 512, 520, 528 |
| Performance | |
| Spindle Speed (RPM) | 7,200 |
| Interface Access Speed (Gb/s) | 12.0 |
| Max Sustained Transfer Rate OD (MB/s) | Up to 250 |
| Average Latency (ms) | 4.16 |
| Interface Ports | Dual |
| Rotation @ 1500 Hz (rad/s) | 12.5 |
| Power Consumption | |
| Idle Power, Average (W) | 6.59 |
| Typical Operating, Random Read (W) | 10.8 |
| Power Supply Requirements | +12V and +5V |
| Environmental | |
| Temperature, Operating (°C) | 5 to 60 |
| Vibration, NonoperatingL 10Hz to 500Hz (Grms) | 4.9 |
| Shock, Operating, 2ms (Read/Write) (Gs) | 70/40 |
| Shock, Nonoperating, 1ms and 2ms (Gs) | 300 |
| Physical | |
| Height (mm/in) | 26.1/1.028 |
| Width (mm/in) | 101.85/4.010 |
| Depth (mm/in) | 147.0/5.878 |
| Weight (g/lb) | 650/1.43 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.8 lb
Warranty: 5 Year Manufacturer
Condition
Brand New
Warranty
5 Year Manufacturer Warranty
