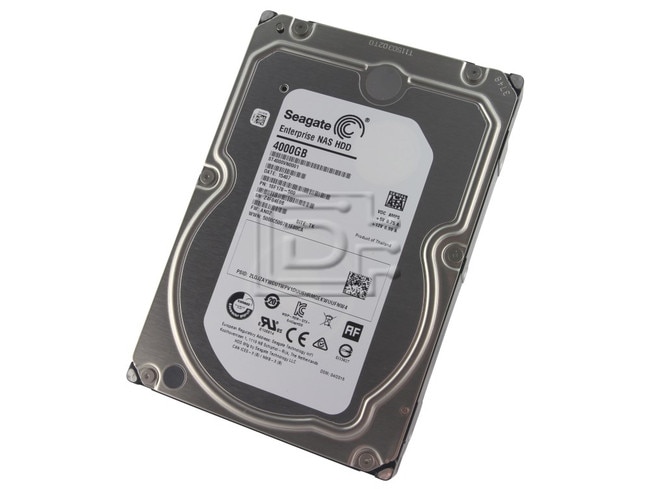

Seagate ST4000VN0001 4000GB Enterprise SATA Hard Drive

Seagate Part #/MPN: ST4000VN0001

DiscTech Item #: SGT-ST4000VN0001-BN-5Y


$229.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$229.00

Enterprise Grade

Capacity: 4TB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 180

Average Seek Time: 12.0/12.0

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 128MB

Seagate ST4000VN0001 4TB / 4000GB 3.5in LFF 6.0Gbps Enterprise NAS SATA Hard Drive 128MB Cache - Brand New

Alt MPN: 1SF178-500

NAS HDD - Best-Performing, Highest-Capacity Storage for 1- to 8-Bay NAS Systems

  • Seagate® NAS HDDs are built and tested to provide industry-leading performance for small NAS systems.
  • NASWorks™ technology supports customized error recovery controls, power management and vibration tolerance for optimal performance and reliability in a 1- to 8-bay solution with 20 users or less.
  • NAS error recovery controls optimize drive health by helping to ensure drives are not dropped from the NAS and sent into a RAID rebuild.
  • Improved vibration tolerance and emission in multi-drive systems with dual-plane balance.
  • Advanced power management supports multiple power profiles for low-power, 24×7 performance.
  • Quiet drive operation enhances customer experience in living room or office environments.

Best-Fit Applications

  • Home/SOHO NAS desktop towers
  • Desktop RAID
  • Backup and disaster recovery
  • Print and file servers
  • Multimedia server/storage
  • Archival
  • Virtualization
  • Small-business file sharing
  • Backup servers

Compatibility: This drive is compatible with any Computers and server that accepts 3.5"x1" (LFF) SATA hard drives.

SPECIFICATIONS
Model NumberST4000VN0001
Capacity4TB/4000GB
Interface OptionsSATA 6Gb/s
Halogen FreeYes
NASWORKS
Number of Drive Bays Supported1 to 8
Dual-Plane BalanceYes
Vibration Tolerance for NASYes
NASWorks Error Recovery ControlYes
PERFORMANCE
Cache, Multisegmented (MB)128
SATA Transfer Rates Supported (Gb/s)6.0
Power-On or Standby to Ready (typical, sec)<17
Max Sustained Data Transfer Rate OD (MB/s)180
VOLTAGE (PER DRIVE)
Voltage Tolerance, Including Noise (5V)±5%
Voltage Tolerance, Including Noise (12V)±10%
POWER MANAGEMENT (PER DRIVE)
Startup Current (12V, A max)2.0
Operating Average (W)4.8
Idle Average (W)3.95
Standby/Sleep Mode (typical, W)0.5
ENVIRONMENTAL (PER DRIVE)
Temperature(°C)
Operating (ambient min)
Operating (drive case max)
Nonoperating ambient

0
70
-40 to 70
Temperature Gradient, Operating/Nonoperating (°C per hour max)20/30
Shock
Operating: 2ms (max, Gs)
Nonoperating: 2ms (max, GS)

80
300
Acoustics
Idle (typical, bels)
Operational (typical, bels)

2.3
2.5
RELIABILITY (PER DRIVE)
Load/Unload600,000
Nonrecoverable Read Errors per Bits Read, Max1 per 10e14
Power-On Hours8760
Mean Time Between Failures (MTBF, hours)1,000,000
PHYSICAL (PER DRIVE)
Height (in/mm, max)1.028/26.11
Width (in/mm, max)4.0/101.6
Depth (in/mm, max)5.787/146.99
Weight (lb/g)1.345/610

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 1SF178-500

Weight: 1.8 lb

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
