Seagate Part #/MPN: ST4000VX007
DiscTech Item #: SGT-ST4000VX007-BN-3Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:3 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Capacity: 4TB
Speed: 5,900RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 4Kn
Sustained Throughput: 190
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 64MB
Wattage/VA: 5.5W

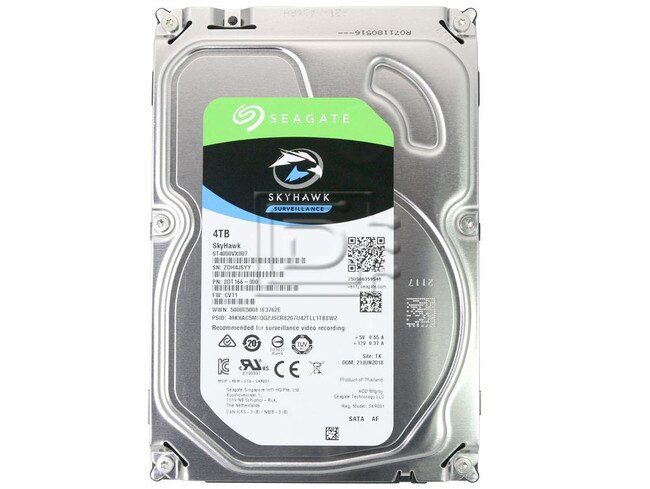

Seagate SkyHawk ST4000VX007 4TB 3.5in 6Gbps Serial ATA / SATA Surveillance HDD - Brand New
Seagate SkyHawk ST4000VX007 4TB / 4000GB 3.5" 6.0 Gb/s Serial Attached Technology Attachment Surveillance Hard Disk Drive - Brand New
SKYHAWK SURVEILLANCE
Smart. Safe. Secure.
Seagate Surveillance-Optimized Storage
Only Seagate has been making drives specifically for surveillance storage for ten years. SkyHawk™ is built to keep systems in the field longer and reduce the need for post-deployment support.
Key Advantages
- ImagePerfect™ firmware supports 24×7 surveillance-optimized workloads tuned to record ~90% of the time and play back video footage the remaining 10%, and supports more cameras recording at higher resolutions than traditional drives.
- Workload rating of 180TB/year allows SkyHawk to perform reliably in write-intensive surveillance systems—3× the workload rating of a desktop-class drive.
- NVR-ready design allows drives to maintain performance in RAID and multi-drive systems, giving customers the flexibility to grow with the booming NVR market and scale their systems when more storage is needed.
- ATA streaming support sustains recordings from up to 64 HD cameras for smooth, uninterrupted footage.
- Up to 10TB or over 2000 hours of HD video storage supports an increased number of cameras and helps to ensure longer data retention periods are met.
- 1M hours MTBF represents an improved total cost of ownership (TCO) with reduced maintenance costs.
- Lower power consumption means a reduction in heat emissions, which improves reliability in surveillance solutions.
- Tarnish-resistant components help protect drive from environmental elements, increasing field reliability.
Best-Fit Applications
- Network video recorders (NVR)
- Embedded surveillance DVRs (SDVR)
- Hybrid surveillance DVRs
- Surveillance DVRs
Compatibility:
This drive is compatible with any server that accepts 3.5inx1.0in LFF SATA Drive.
| SkyHawk Surveillance | |
|---|---|
| Model Number | ST4000VX007 |
| Capacities | 4TB / 4000GB |
| Interface | SATA 6Gb/s |
| FEATURES AND PERFORMANCE | |
| Drive Bays Supported | 8+ |
| Cameras Supported | Up to 64 |
| Max Sustained Transfer Rate OD (MB/s) | 190 |
| Cache (MB) | 64 |
| RELIABILITY/DATA INTEGRITY | |
| Tarnish Resistant | Yes |
| Load/Unload Cycles | 300,000 |
| Nonrecoverable Read Errors Rate, Max | 1 per 10E14 |
| Power-On Hours per year | 8760 |
| Workload Rate Limit (WRL) | 180 |
| Mean Time Between Failures (MTBF) (hours) | 1M |
| POWER MANAGEMENT | |
| Startup Current, Typical (12V, A) | 1.8 |
| Average Operating Power (W) | 5.5 |
| Idle Average (W) | 3.2 |
| Standby Mode/Sleep Mode, Typical (W) | 0.25/0.25 |
| Voltage Tollerance (5V) | ±5% |
| Voltage Tolerance (12V) | ±10% |
| ENVIRONMENTAL/TEMPERATURE | |
| Operating (ambient, min °C) | 0 |
| Operating (drive case, max °C) | 70 |
| Nonoperating (ambient, min °C) | -40 |
| PHYSICAL | |
| Height (mm/in, max) | 26.11/1.028 |
| Width (mm/in, max) | 101.85/4.01 |
| Depth (mm/in, max) | 146.99/5.787 |
| Weight (g/lb, typical) | 635/1.40 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 2 lb
Warranty: 3 Year Manufacturer
Brand New
The product is brand new.
3 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
