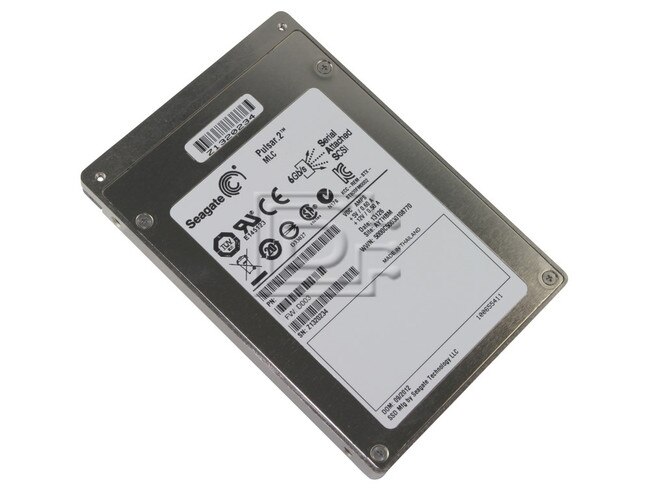

Seagate ST400FM0002 400GB SAS SSD

Seagate Part #/MPN: ST400FM0002

DiscTech Item #: SGT-ST400FM0002-BN-OE


$2,549.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$2,549.00

Enterprise Grade

Capacity: 400GB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx7mm Fits All laptops

Sector Size: 512 / 512e

Sustained Throughput: 370

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

SSD Type: MLC

Seagate ST400FM0002 400GB 2.5in 6Gbps Pulsar.2 SAS High Endurance MLC SSD -Brand New

Seagate ST400FM0002 400GB 2.5" 6.0 Gbps Pulsar.2 Statistical Analysis System High Endurance Multi-Level Cell Solid State Disk Drive - Brand New

Performance is important, but endurance and data integrity are critical. The Pulsar.2 SSD can routinely complete ten full drive writes per day, for a total bytes written score (TBW) of 15 petabytes (for an 800GB drive over the life of the device). The Pulsar.2 drive has been designed for the enterprise environment with the intelligence to automatically detect and correct a multitude of data errors that can occur during normal drive operation to deliver the highest levels of enterprise-class data integrity. Additional endurance features include:

  • Advanced media-management technology and Protection Information (PI is SAS only) to help protect against unexpected data change or loss
  • Background media scanning to help protect against read disturb data errors
  • Power-loss data protection to help ensure data is not lost or inadvertently changed during unexpected power loss
  • Wear-leveling algorithms to ensure that every block on the NAND is written to an equal number of times and as evenly as possible to maximize the life of the device
  • Garbage collection techniques to identify the next best block on the NAND flash to erase and rewrite before the space is actually needed


Compatibility:

This drive is compatible with any server that accepts 2.5" x 7mm (Thin/Case) SAS drives

Drive ModelST400FM0002
Capacity200GB
Performance
Interface Option6Gbps SAS
NAND Flash TypeMLC
Sustained Data Transfer Rate, Max (MB/s)370
I/O Data Transfer Rate, Max (MB/s)600
Sequential Read/Write Command Rate (MB/s) Peak, 128KB370/200
Random Read/Write Command Rate (IOPS) Peak, 4KB48,000/15,000
Configuration/Reliability
Unrecoverable Read Errors per Bits Read1 LBA per 10E16 1
Annualized Failure Rate (AFR)0.44%
Power Management
+12/+5V Max Start Current (A)0.35/0.50
Average Idle Power (W)3.49
Average Operating Power (W)4.75
Enviromental
Internal Operating Temperature (°C)0 to 60
Nonoperating Temperature (°C)−40 to 70
Temperature Change Rate/Hr, Operating Max (°C)20
Temperature Change Rate/Hr, Nonoperating Max (°C)20
Shock, 0.5ms Operating (Gs)1000
Shock, 0.5ms Nonoperating (Gs)1000
Vibration, 20Hz to 2000Hz Operating Grms)11.08
Vibration, 20Hz to 2000Hz Nonoperating Grms)11.08
Physical
Height (mm/in)7.0/0.276
Width (mm/in)70.10/2.76
Length (mm/in)100.45/3.955

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1 lb

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
