Seagate Part #/MPN: ST400FM0073
DiscTech Item #: SGT-ST400FM0073-BN-OE
- Brand New
- Warranty:5 Year Manufacturer
- Low Stock:Call for ETA
Enterprise Grade
Capacity: 400GB
Speed: Solid State
Interface Types: SAS
Form Factor: 2.5" SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 750
Electrical Interface: SAS-3 12Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Mixed Use / MU

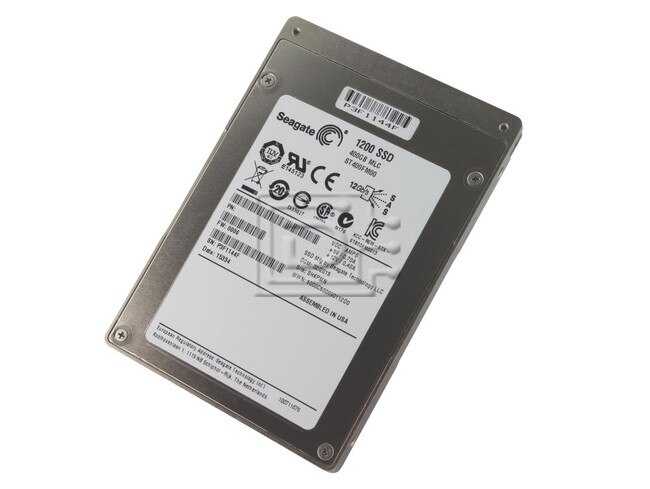

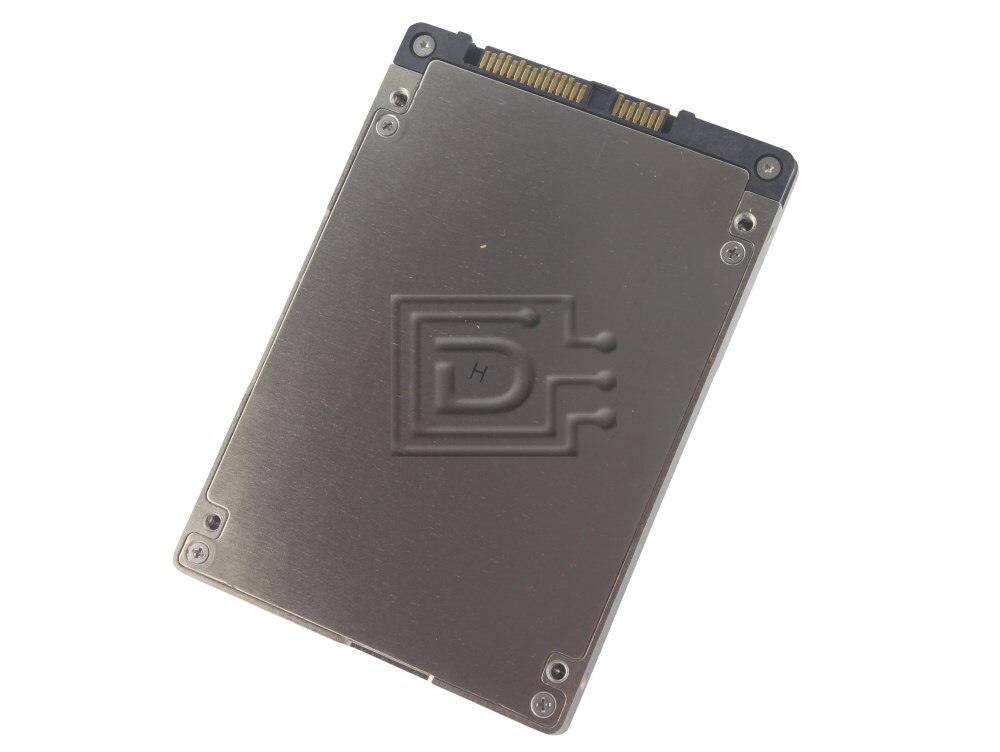

Seagate ST400FM0073 400GB 12Gbps 2.5" Enterprise SED SAS SSD - Brand New
Seagate ST400FM0073 400GB 12.0 Gbps 2.5-inch Self-Encrypting Enterprise Serial-attached SCSI Media Usage Solid-State Drive - Brand New
Ultra-Fast, Consistent Performance Plus 12Gb/s SAS
- Helps remove storage bottlenecks and close the gap between processor and data access performance
- Delivers the speed and performance consistency needed for demanding enterprise applications
- Designed to reduce data access wait times under the most complex, write-intensive, mixed workloads
- First Solid-State Disk to ship in volume with 12Gb/s SAS while ensuring the highest level of reliability and scalability
- Ensures data availability for critical production systems by using redundant, failover I/O communication paths
- Helps improve ROI by leveraging existing SAS infrastructures
- Custom-designed controller leverages Seagate enterprise expertise and manufacturing excellence
- Helps safeguard data against unexpected power loss and protects data from undetected, unintentional corruption
- Helps ensure data integrity with multiple layers of I/O error detection and correction
Best-Fit Applications
- Demanding, enterprise applications with complex, write-intensive and mixed workloads
- IOPs-hungry enterprise applications, such as high-performance computing, online transaction processing (OLTP) and heavy data analytics
- Enterprise applications that demand high data availability and integrity as well as interface failover redundancy
- External enterprise storage solutions (SAN, NAS, DAS) and servers
Limited Warranty with Media Usage
This warranty is based on the shorter of term and endurance usage of the drive.
| Product Specifications | |
|---|---|
| Product Name | ST400FM0073 |
| Product Type | Solid-State Drive |
| Drive Interface | SAS |
| Drive Width | 2.5" |
| Drive Interface Standard | 12Gb/s SAS |
| Drive Type | Internal |
| Storage Capacity | 400GB |
| NAND Flash Type | MLC |
| Performance | |
| Maximum Burst Transfer Rate | 1200MB/s |
| Peak sequential 128KB read/write data transfer rate (MB/s max) | 750/500 |
| Sustained sequential 128KB read/write data transfer rate (MB/s) | 750/500 |
| Peak 4KB random read/write command rate (IOPs) | 110,000/30,000 |
| Sustained 4KB random read/write command rate (IOPs) | 110,000/30,000 |
| Sustainable 4KB Random combined IOPS for 5 year Endurance (65%/35% R/W, 70% Duty Cycle) | 60,000 |
| Reliability | |
| TBW (per JEDEC JESD218) | 7300 TB |
| Power Requirements | |
| Average idle current (W) | 2.72 |
| Delayed start (max) DC (W) | 2.29 |
| Peak operating current (random read) Typical DC (W) | 3.71 |
| Peak operating current (random read) Maximum DC (W) | 3.98 |
| Peak operating current (random write) Typical DC (W) | 4.72 |
| Peak operating current (random write) Maximum DC (W) | 5.28 |
| Peak operating current (sequential read) Typical DC (W) | 4.39 |
| Peak operating current (sequential read) Maximum DC (W) | 4.61 |
| Peak operating current (sequential write) Typical DC (W) | 6.31 |
| Peak operating current (sequential write) Maximum DC (W) | 6.53 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.8 lb
Warranty: 5 Year Manufacturer
Brand New
5 Year Manufacturer Warranty
