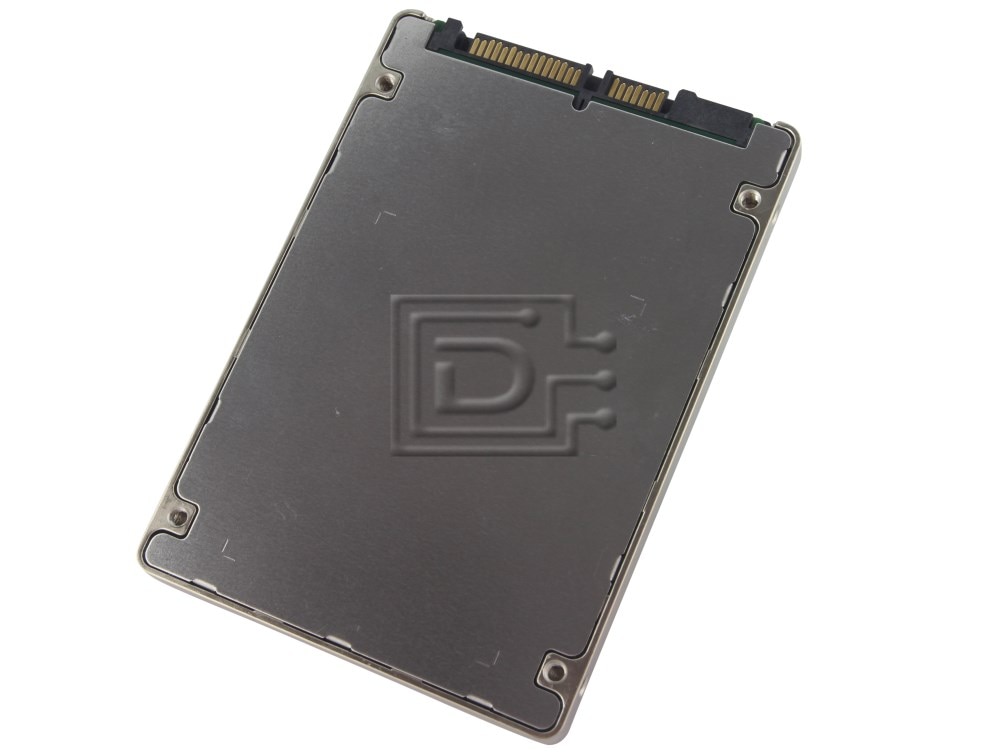

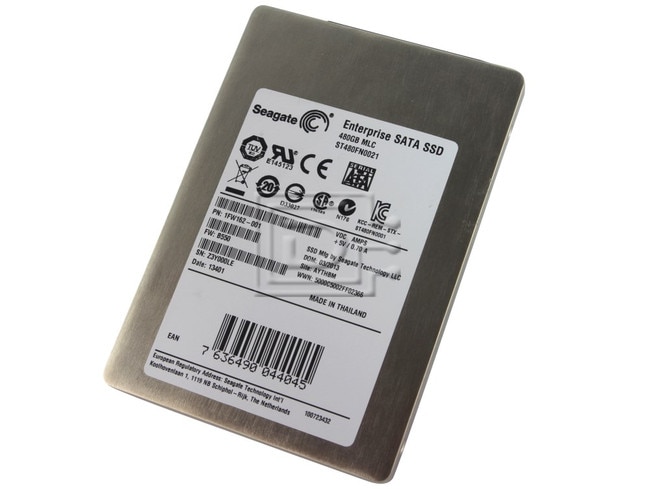

Seagate ST480FN0021 480GB eMLC SATA SSD

Seagate Part #/MPN: ST480FN0021

DiscTech Item #: SGT-ST480FN0021-RF-OE


$309.00
$309.00

Enterprise Grade

Capacity: 480GB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx7mm Fits All laptops

Sector Size: 512 / 512e

Sustained Throughput: 520

Electrical Interface: SATA 600 - 6.0Gbps

SSD Type: MLC

SSD Endurance DWPD: Enterprise Read Intensive

Seagate ST480FN0021 480GB 2.5in 6Gbps Read-Intensive Enterprise MLC SATA Solid State Drive - Refurbished

Alt MPN: 1FW162-001

Enterprise SATA SSD

Beyond a client SSD, the Seagate® Enterprise SATA SSD drive leverages proven enterprise expertise, an enterprise-tuned feature set and manufacturing excellence to deliver high levels of data integrity, manageability, interoperability and support. Optimized for NAND technology, Seagate multi-layered error recovery technology with advanced error detection and correction encoding helps ensure data integrity. Seagate conducts extensive, rigorous failure condition and interoperability testing to deliver the quality and interoperability expected of a true enterprise-class SSD. And of course, this drive is backed by industry-leading support, deep supply chain relationships and global partner networks.

A Class Above Client SSDs.

  • Delivers the highest IOPS/watt to improve system performance and reduce power and cooling costs for performance-hungry data center and cloud applications
  • Fast, consistent performance and low latency over the warranty period of the drive
  • Helps reduce performance gaps between storage I/O and CPU operations
  • Provides up to 480GB user capacity
  • Helps safeguard data against unexpected power loss
  • Helps protect data from undetected, unintentional corruption (silent errors)
  • One drive—many use cases

Best-Fit Applications

  • Performance-hungry, read-intensive, data center applications, such as data indexing, edge caching, data streaming, or gaming/software delivery
  • Cloud system builders, cloud service providers, content delivery networks and virtualized enterprise environments that demand the highest IOPS/W value
  • Green IT and TCO reduction initiatives
  • Power- and space-constrained data centers

Compatibility:

This drive is compatible servers that accept 2.5"x7mm SATA drives.

Specifications
Model NumberST480FN0021
Interface OptionsSATA 6Gb/s
NAND Flash TypeMLC
Performance
Sustained Data Transfer Rate (MB/s)520
I/O Data Transfer Rate, Max (MB/s)600
Sequential Read/Write Command Rate (MB/s) Peak, 128KB520/400
Random Read/Write Command Rate (KIOPS) Peak, 4KB85/11
Configuration/Reliability
Nonrecoverable Read Errors per Bits Read, Max1 per 10E16
Annualized Failure Rate (AFR)0.58%
Total Drive Writes Over Warranty Period (JEDEC Workload, All LBAs Allocated)730
Power Management
+5V Max Start Current (A)0.5
Average Sleep Power (W)0.5
Average Idle Power (W)1.25
Average Operating Power (W) 2.8
Environmental
Internal Operating Temperature (C°)0 to 70
Nonoperating Temperature (C°)−40 to 75
Temperature Change Rate/Hr, Max (C°)20
Relative Humidity, Noncondensing (%)5 to 95
Shock, 0.5ms (Gs)1000
Vibration, 20Hz to 2000Hz (Grms)11.08
Physical
Height (mm/in)7.0/0.276
Width (mm/in)70.10/2.76
Depth (mm/in)100.45/3.955
Weight (g/lb)100/0.220

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 1FW162-001

Weight: 1 lb

Warranty: 1 Year DiscTech

Refurbished

Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
