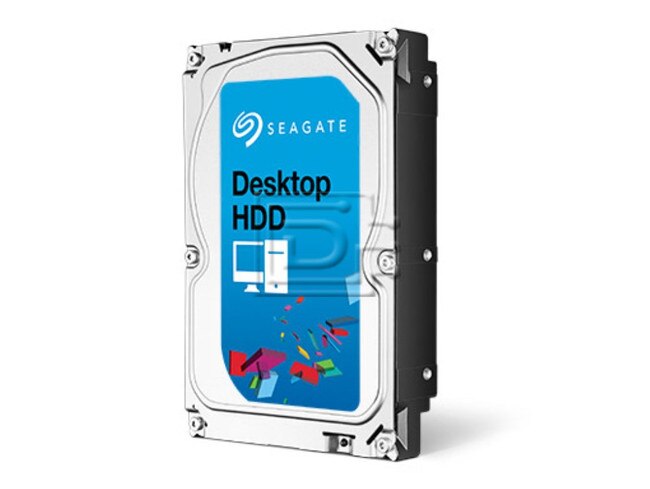

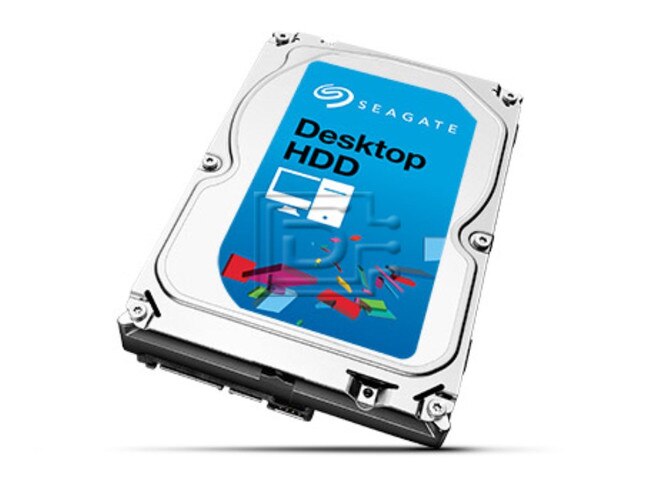

Seagate ST5000DM002 5TB SATA Hard Drive

Seagate Part #/MPN: ST5000DM002

DiscTech Item #: SGT-ST5000DM002-BN-2Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Capacity: 5TB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 220

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 128MB

Seagate ST5000DM002 5TB 3.5 inches 6Gbps NCQ 7.2K RPM SATA HDD - Brand New

Seagate ST5000DM002 5TB / 5000GB 3.5" 6.0 Gbps 7200 RPM Serial ATA Hard Disk Drive - Brand New

Desktop HDD

  • Seagate brings over 30 years of trusted performance and reliability to the new Seagate® Desktop HDDs—now available in capacities up to 6TB.
  • Increase your capacity and drive down costs with up to 1TB-per-disk hard drive technology.
  • SATA 6Gb/s interface optimizes burst performance
  • Seagate AcuTrac™ servo technology delivers dependable performance.
  • Free DiscWizard™ software enables high capacities on legacy PC BIOS systems.

Best-fit Applications

  • Desktop or all-in-one PCs
  • Home servers
  • Entry-level direct-attached storage devices (DAS)


This drive is compatible with any server that accepts 3.5in x 1.0in (LFF) SATA drives.

Product Specifications
Product NumberST5000DM002
Secured ModelNo
Model NameDesktop HDD
Interface Options (with NCQ)SATA 6Gb/s
Cache, Multi-segmented (MB)128
SATA Transfer Rates Supported (GB/s)6.0 / 3.0 / 1.5
Average Data Rate, Read/Write (MB/s)180
Max Sustained Data Rate, OD Read (MB/s)220
Bytes per Sector512E
Voltage Tolerance, Inc. Noise (5V)+/- 5%
Voltage Tolerance, Inc. Noise (12V)+/-10%
Reliability/Data Integrity
Contact Start/Stop Cycles ---
Load/Unload Cycles300,000
Non-recoverable Read Errors per Bits Read, Max/td>1 per 10e14
Workload Rate Limit (TB/year)55
Power-on Hours2,400
Power Management
Startup Power (A)2.0
Operating Mode, Typical (W)9.0
Idle Average (W)7.2
Standby Mode (W)0.6
Sleep Mode (W)0.6
  • Operating (ambient min °C)
  • Operating (drive case max °C)
  • Non-operating (ambient °C)

  • 0
  • 60
  • -40 to 70
  • Halogen-freeYes
    ROHS complianceYes
    Height (mm/in)26.11/1.028
    Width (mm/in)101.6/4.0
    Depth (mm/in)146.99/5.787
    Weight (g/lb)780/1.720
    Special Features
    Seagate AcuTrac TechnologyYes

    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Weight: 1.8 lb

    Warranty: 2 Year Manufacturer

    Brand New

    Condition Levels Explained

    The product is brand new.

    2 Year Manufacturer Warranty

    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.
