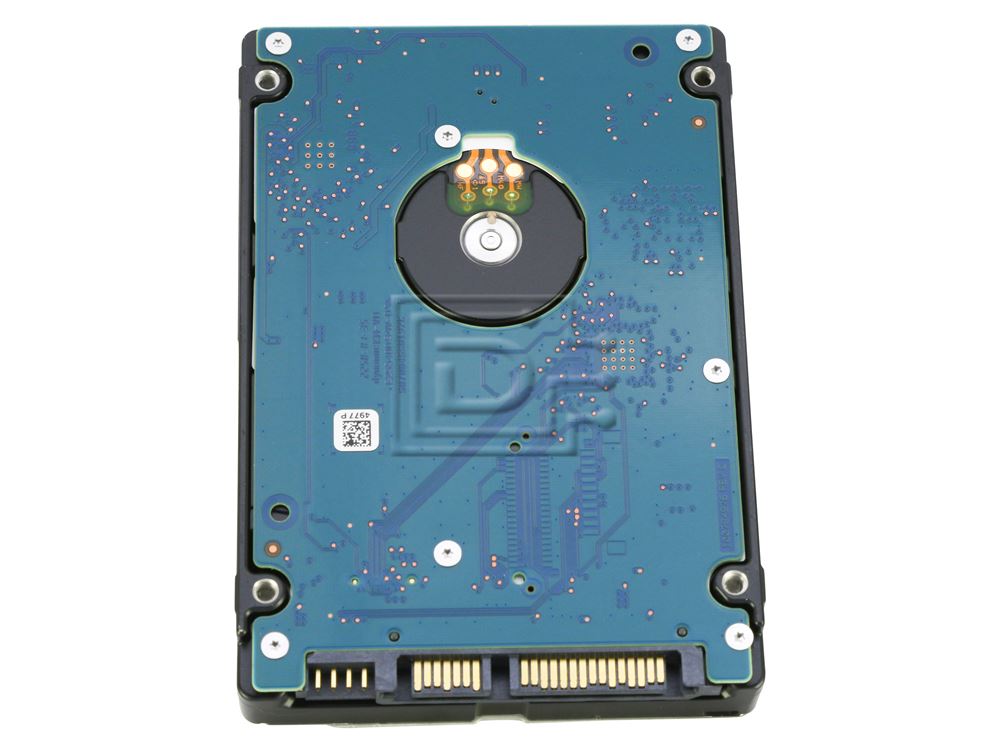

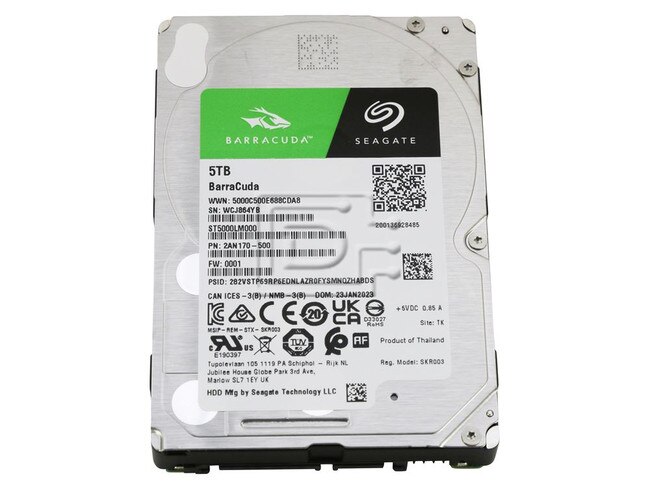

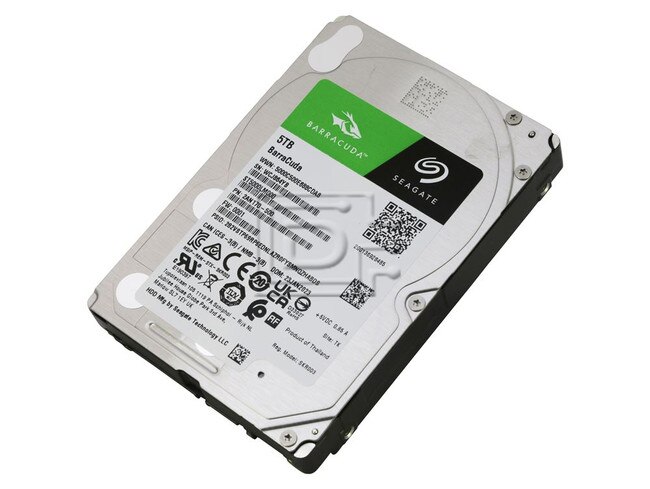

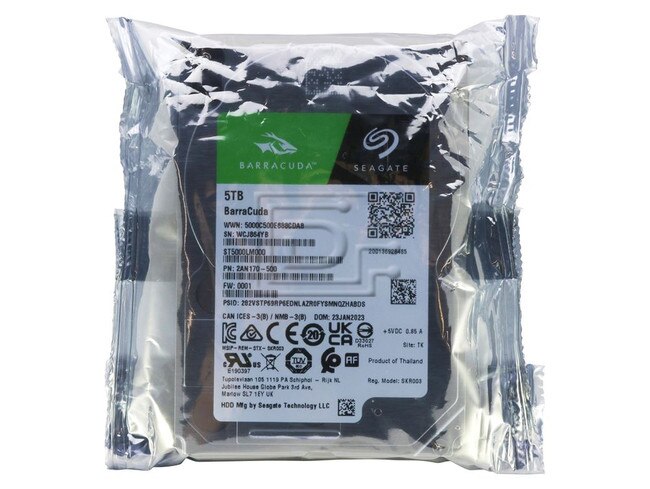

Seagate ST5000LM000 5TB SATA 2.5in 6Gbps 5.4K RPM Hard Drive HDD
- Brand NewCondition Levels Explained
The product is brand new.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 2 Year ManufacturerWarrantyProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
| Capacity: | 5TB |
| Speed: | 5.4K RPM |
| Interface Types: | SATA |
| Form Factor: | 2.5" SFF Server Drive |
| Electrical Interface: | SATA 600 - 6Gbps |
| RAM: | 128MB |
Description
Seagate Barracuda Compute ST5000LM000 5TB 2.5in 6Gbps 5.4K RPM 512 Serial ATA / SATA HDD - Brand New
Seagate Barracuda Compute ST5000LM000 5TB / 5000GB 2.5" 6Gb/s 5400 RPM 512 Serial Attached Technology Attachment Hard Disk Drive - Brand New
BARRACUDA COPUTE
Amazing Versatility. Unmatched Dependability.
Seagate brings over 20 years of trusted performance and reliability to the Seagate BarraCuda 2.5-inch HDDs – now available in capacities up to 5TB
Key Advantadages
- Broadest 2.5-inch hard drive portfolio with up to 5TB capacity and both 7mm and 15mm factors suitable for a variety of compute applications
- Thinnest and lighest 2.5-inch hard drive with up to 2TB storage in a 7mm z-height, providing seamless upgrades of thin light laptop and smaller form factor systems.
- Fast data rates of up to 140MB/s enables superior PC and user experience and snappier file transfers>
- 2.5-inch, 15mm z-height hard drives provide 3TB to 5TH in capacity, offering the highest-capacity 2.5-inch hard drives available for external or all-in one storage.
- 15mm z-height enables slimmer all-in-one desktop PC drives while helping reduce system heat generation and vibration
- Low startup current configuration for 3TB to 5TB drives enable use in legacy low-current systems like USB-2 external boxes, while simultaneously lowering power consumption
- 5TB drives can store more than 1.25 million songs and 600 hours of HD video
Best-Fit Applications
- Laptops
- Mobile Storage
- External storage systems
- All-in-one PCs
- Ultra-slim desktop PCs
Compatibility:
This drive is compatible with laptops that accept 2.5" x 15mm SFF SATA drives.
Specifications
| Barracuda Compute | |
|---|---|
| Model Number | ST5000LM000 |
| Capacity | 5TB / 5000GB |
| Bytes per Sector (logical/physical) | 512 / 4096 |
| Performance | |
| Interface | SATA 6Gb/s |
| Data Transfer Rate (MB/s) | Up to 140 MB/s |
| Cache (MB) | 128 |
| Spindle Speed (RPM) | 5400 |
| Reliability/Data Integrity | |
| Load/Unload Cycles | 600,000 |
| Head-Rest Method | QuitStep Ramp Load |
| Nonrecoverable Read Errors per Bits Read, Max | 1 per 10E14 |
| Power Management | |
| Startup Current (+5V, A) | 1.2 |
| Read/Write Power, Average (W) | 1.9/2.1 |
| Idle Average (W) | 1.1 |
| Environmental/Temperature | |
| Operating Temperature (°C) | 0°C - 60°C |
| Nonoperating Temperature (°C) | -40° - 70°C |
| 2ms Operating Shock (Gs) | 300 |
| 1ms Nonoperating Shock (Gs) | 650 |
| Acoustics, Idle, Typical (bels) | 2.6 |
| Acoustics, Seek, Typical (bels) | 2.7 |
| Physical | |
| Height (mm/in) | 15/0.59 |
| Width (mm/in, max) | 69.85/2.750 |
| Depth (mm/in, max) | 100.35/3.951 |
| Weight (g/lb) | 190/0.42 |
| Special Features | |
| Multi-Tier Caching Technology | Yes |
| Halogen Free | Yes |
| RoHS Compliance | Yes |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 0.5 lb
Warranty: 2 Year Manufacturer
Condition
Brand New
Warranty
2 Year Manufacturer Warranty
