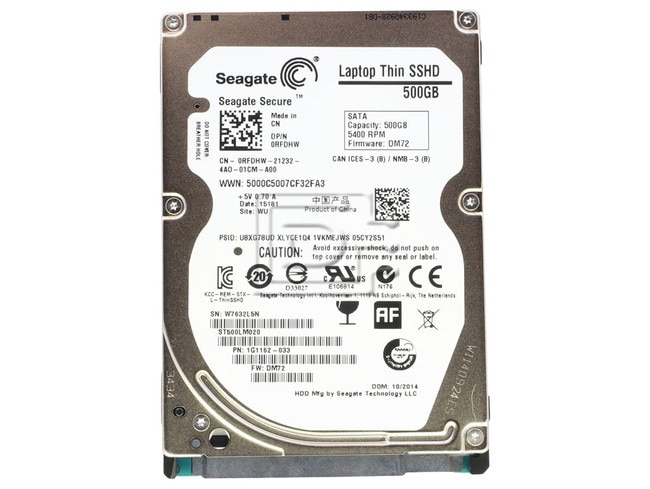

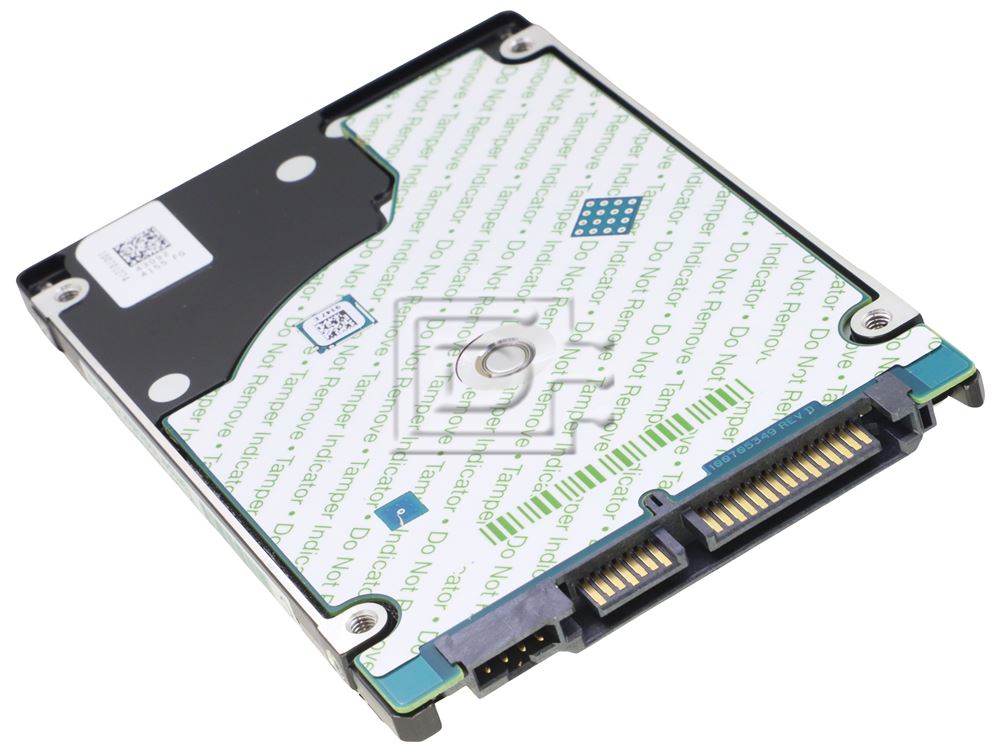

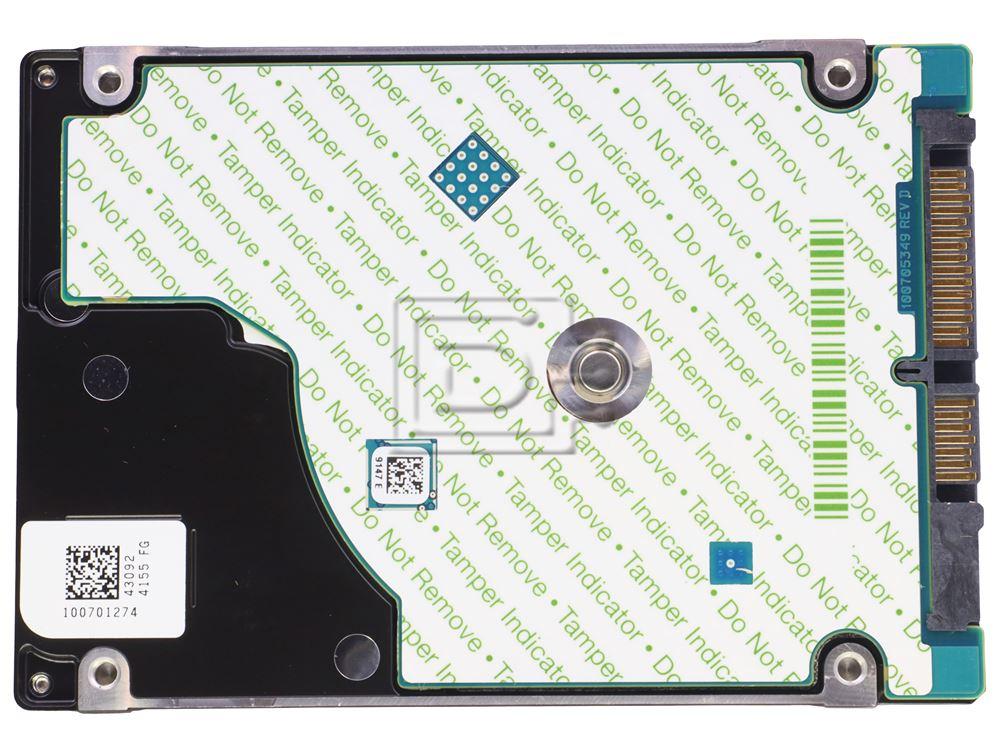

Seagate ST500LM020 / 1G1162-033 500GB 2.5" 6Gbps 5.4K RPM 8GB NAND 512e SED-FIPS Hybrid SATA HDD Dell RFDHW
- Brand NewCondition Levels Explained
The product is brand new.
- In Stock:9Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 500GB |
| Speed: | 5.4K RPM |
| Interface Types: | SATA |
| Form Factor: | 2.5" x 7mm Fits All laptops |
| Electrical Interface: | SATA 600 - 6Gbps |
Description
Seagate ST500LM020 / 1G1162-033 500GB 2.5" 6Gbps 5.4K RPM 8GB NAND 512e SED-FIPS Hybrid SATA HDD Dell RFDHW- Brand New
Seagate ST500LM020 / 1G1162-033 500GB 2.5" 6Gbps 5.4K RPM 8GB NAND 512e SED-FIPS Hybrid SATA HDD Dell RFDHW- Brand New
Laptop Thin SSHD
Unparalleled Speed. Huge Capacity. Amazing value
- Equipped with both 32GB and 8GB NAND Flash for enhanced performance
- Boots and performs like an SSD
- Capacities up to 1TB
- All-in-one design for simplicity and ease of installation
- Installs and works just like a traditional hard drive in any laptop, PC, Mac or game console, and with any OS and application
- SATA 6Gb/s with NCQ for interface speed
- Self-Encrypting Drive (SED) versions available to maximize data protection and minimize the risk of confidential information breaches
Best-Fit Application
- Thin, thinner and thinnest z-heights
- Perfect for gaming, creative professional, and high performance settings
- 9.5mm for all-in-one PCs and larger laptops
- 7mm for thin and light laptops and high-performance gaming systems
Compatibility
This drive is compatible with any laptop/computer that uses 2.5"x7mm SATA hard drives.
Specifications
| Laptop SSHD/Laptop Thin SSHD | |
|---|---|
| SED-FIPS 140-2 Model | ST500LM020 |
| Seagate Product Number | 1G1162-033 |
| Capacity | 500GB |
| Model Name | Laptop Thin SSHD |
| Interface | SATA 6.0/3.0/1.5Gbps NCQ |
| Performance | |
| Flash Memory Type | 8GB NAND Flash |
| Configuration/Organization | |
| Heads/Disks | 2/1 |
| Bytes per Sector | 4096 |
| Power Supply Requirements | +5V |
| Reliability/Data Integrity | |
| Head Rest Method | QuietStep Ramp Load |
| Load/Unload Cycles | 600,000 |
| Nonrecoverable Read Errors per Bits Read, Max | 1 per 10E15 |
| Annualized Failure Rate (AFR) | 0.48% |
| Power Management | |
| Power, Seek, Typical (W) | 2.5W |
| Idle Average (W) | 0.9W |
| Environmental/Temperature | |
| Temperature, Operating/NonOperating (ambient, min °C) | 0°C/-40°C |
| Temperature, Operating/NonOperating (ambient, max °C) | 60°C/70°C |
| Shock, Operating: 2ms (Gs) | 350Gs |
| Shock, Nonoperating: 1ms (Gs) | 1000Gs |
| Acoustic, Seek/Idle, Typical (bels) | 2.2bels/2.0bels |
| Physical | |
| Height (mm/in) | 6.8mm/0.268in |
| Width (mm/in, max) | 69.85mm/2.750in |
| Depth (mm/in, max) | 100.35mm/3.95in |
| Weight (g/lb) | 95g/0.209lb |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 1G1162-033 RFDHW
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Condition
Brand New
Warranty
1 Year DiscTech Warranty
