Seagate Part #/MPN: ST500LM021
DiscTech Item #: SGT-ST500LM021-RF-OE-DEG
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 500GB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 2.5inx7mm Fits All laptops
Sector Size: 512 / 512e
Sustained Throughput: 135
Average Seek Time: 11.0
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 32MB

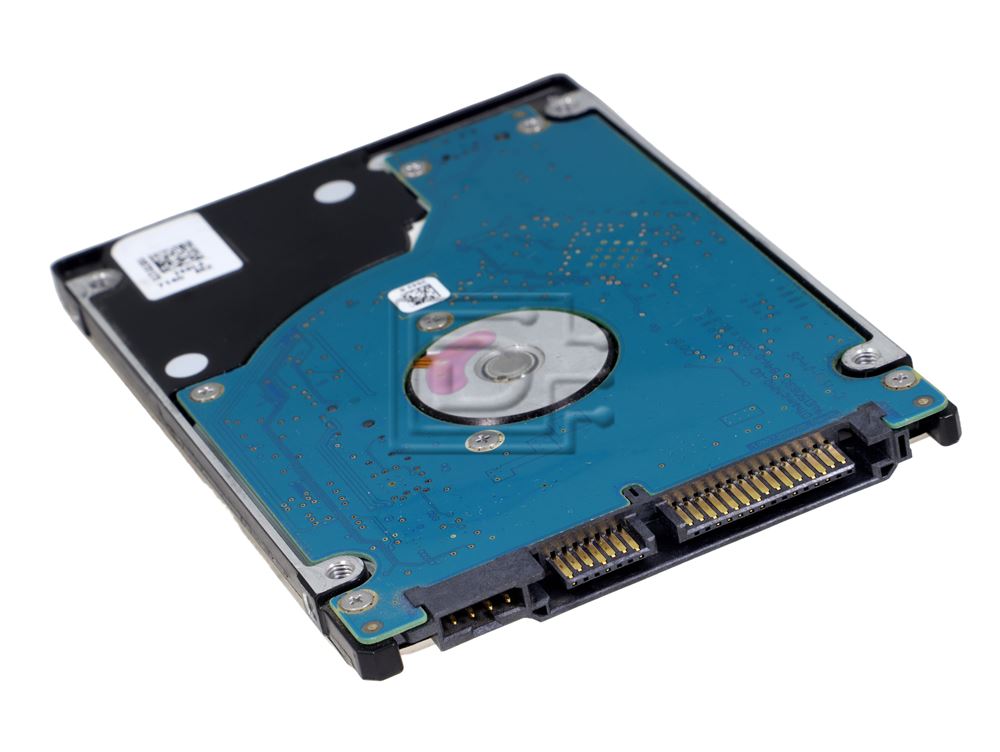

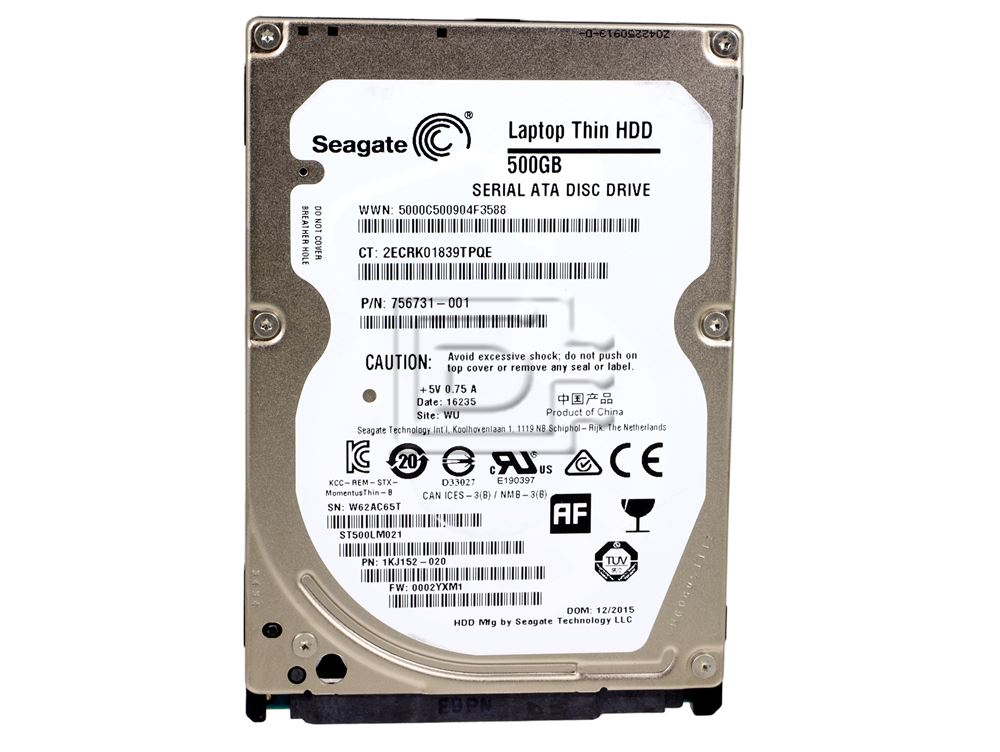

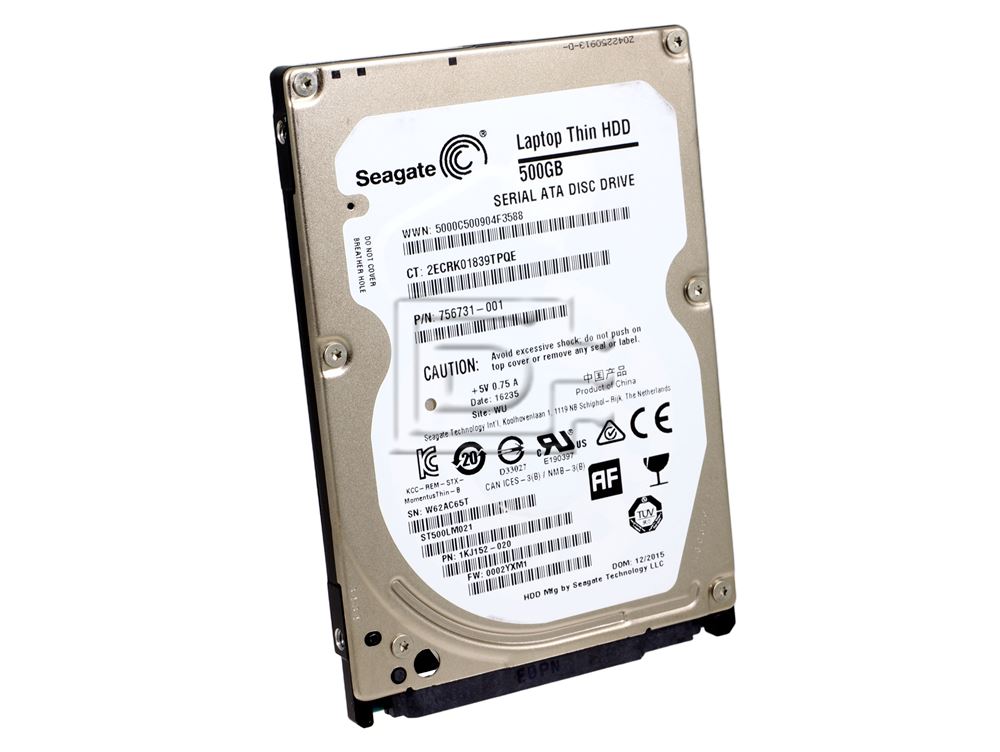

Seagate ST500LM021 / Dell 0KX1F 500GB 2.5" 6Gbps 7.2K RPM HS Momentus Thin SATA HDD - Refurbished
Seagate ST500LM021 / Dell 0KX1F 500GB 2.5" 6Gbps 7.2K RPM HS Momentus Thin SATA HDD / Hard Disk Drive - Refurbished
The Serial ATA interface provides several advantages over the traditional (parallel) ATA interface. The primary advantages include:
- Easy installation and configuration with true plug-and-play connectivity. It is not necessary to set any jumpers or other configuration options.
- Thinner and more flexible cabling for improved enclosure airflow and ease of installation.
- Scalability to higher performance levels.
In addition, Serial ATA makes the transition from parallel ATA easy by providing legacy software support. Serial ATA was designed to allow you to install a Serial ATA host adapter and Serial ATA disk drive in your current system and expect all of your existing applications to work as normal.
The Serial ATA interface connects each disk drive in a point-to-point configuration with the Serial ATA host adapter. There is no master/slave relationship with Serial ATA devices like there is with parallel ATA. If two drives are attached on one Serial ATA host adapter, the host operating system views the two devices as if they were both “masters” on two separate ports. This essentially means both drives behave as if they are Device 0 (master) devices.
The Serial ATA host adapter and drive share the function of emulating parallel ATA device behavior to provide backward compatibility with existing host systems and software. The Command and Control Block registers, PIO and DMA data transfers, resets, and interrupts are all emulated.
The Serial ATA host adapter contains a set of registers that shadow the contents of the traditional device registers, referred to as the Shadow Register Block. All Serial ATA devices behave like Device 0 devices. For additional information about how Serial ATA emulates parallel ATA, refer to the Serial ATA International Organization: Serial ATA (Revision 3.2).
These drives provide the following key features:
- 7200-RPM spindle speed.
- 32MB buffer.
- Quiet operation. Fluid Dynamic Bearing (FDB) motor.
- High instantaneous (burst) data-transfer rates (up to 6Gb/s).
- Perpendicular recording technology.
- State-of-the-art cache and on-the-fly error-correction algorithms.
- Native Command Queuing (NCQ) with command ordering.
- Full-track multiple-sector transfer capability without local processor intervention.
- 1000 Gs nonoperating shock and 400 Gs of operating shock.
- SeaToolsTM diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
- The 3D Defense System™, which includes Drive Defense, Data Defense and Diagnostic Defense, offers the industry’s most comprehensive protection for disk drives.
- Support for S.M.A.R.T. drive monitoring and reporting.
- Support for Read Multiple and Write Multiple commands.
- Worldwide Name (WWN) capability uniquely identifies the drive.
Compatibility:
This drive is compatible with any server that accepts 2.5"x7mm (Thin / Case) SATA drives.
| Drive Model | ST500LM021 |
|---|---|
| Capacity | 500GB |
| Interface | SATA 6Gb/s |
| DRIVE SPECIFICATIONS | |
| Standard SED models | No |
| SED (FIPS 140-2) models | No |
| ATA data-transfer modes supported | PIO modes 0-4, Multiword DMA modes 0-2, Ultra DMA modes 0-6 |
| Startup current (typical) 5V (peak) | 1.0 A |
| Voltage tolerance (including noise) | 5V ± 5% |
| Operating temperature | 0° to 60°C |
| Nonoperating temperature (Ambient) | –40° to 70°C |
| Operating Temperature gradient (max) | 20°C per hour max |
| Nonoperating Temperature gradient (max) | 35°C per hour max |
| Operating Relative humidity | 5% to 95% |
| Nonoperating Relative humidity | 5% to 95% |
| Relative humidity gradient | 30% per hour mx |
| Operating Wet bulb temperature (max) | 37.7°C max |
| Nonoperating Wet bulb temperature (max) | 40.0°C max |
| Altitude, operating | –304.8 m to 3048 m (–1000 ft to 10,000+ ft) |
| Altitude, nonoperating (below mean sea level, max) | –304.8 m to 12,192 m (–1000 ft to 40,000+ ft) |
| Operational Shock | 400 Gs at 2 ms max |
| Non-Operational Shock | 1000 Gs at 1 ms max |
| Vibration, operating (5-200 Hz) | 2.0 Gs |
| Vibration, operating (201-500 Hz) | 1.0 Gs |
| Vibration, nonoperating (5-500 Hz) | 5.0 Gs |
| Nonrecoverable read errors | 1 per 10E12 bits read |
| Load-unload cycles | 600,000 at 25°C, 50% rel. humidity |
| Supports Hotplug operation per the Serial ATA Revision 3.2 specification | Yes |
| FORMATTED CAPACITY | |
| Guaranteed Sectors | 976,773,168 |
| Bytes per sector | 512 (logical)/ 4096 (physical |
| PHYSICAL ORGANIZAION | |
| Heads | 2 |
| Disks | 1 |
| RECORDING AND INTERFACE TECHNOLOGY | |
| Recording method | Perpendicular |
| Recording density | 1875 Kb/in |
| Track density | 375 Ktracks/in avg |
| Areal density | 670 Gb/in avg |
| Spindle Speed | 7200 RPM |
| Sustained data transfer rate OD | 135 MB/s max |
| I/O data transfer rate | 600 MB/s max |
| PHYSICAL CHARACTERISTICS | |
| Height | 6.8 +/- 0.2 mm (0.268 +/-.008 in) |
| Width | 69.85 +/- 0.25 mm (2.750 +/- 0.010 in) |
| Length | 100.35 +0.20 / -0.25 mm (3.951 +0.008 / -0.010 in) |
| Weight (typical) | <95 g (0.209 lb) |
| Cache buffer | 32 MB (32,384 KB) |
| SEEK TIME | |
| Track-to-track, read | 1.5 ms |
| Average, read | 11.0 ms |
| Average latency, read | 4.2 ms |
| START/STOP TIMES | |
| Power-on to ready Max @ 25°C (sec) | 4.0 |
| Power-on to ready Typical (sec) | 3.5 |
| Standby to ready Max @ 25°C (sec) | 3.5 |
| Standby to ready Typical (sec) | 3.0 |
