Seagate Part #/MPN: ST500LT032
DiscTech Item #: SGT-ST500LT032-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 500GB
Speed: 5,400RPM
Interface Types: SATA
Form Factor: 2.5in x 5mm Ultrathin
Sector Size: 512 / 512e
Sustained Throughput: 100
Average Seek Time: <13/<15
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 16MB

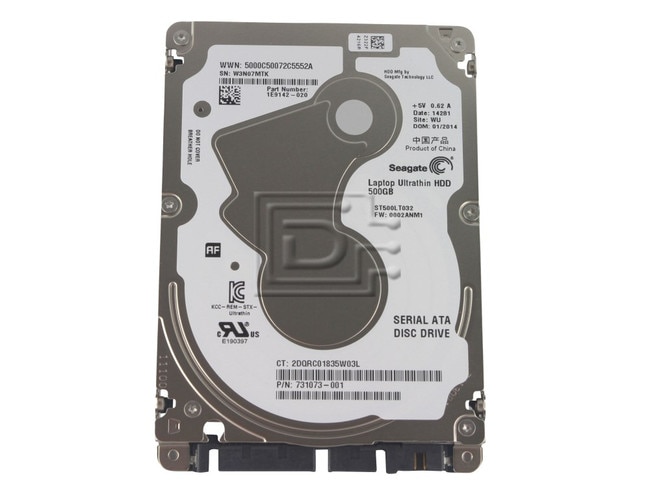

Seagate ST500LT032 500GB 2.5in 6Gbps 5.4K RPM Laptop Ultrathin SATA HDD - Brand New
Seagate ST500LT032 500GB 2.5" 6.0 Gbps 5400 RPM Laptop Ultrathin Serial Advanced Technology Attachment Hard Disk Drive - Brand New
Laptop Ultrathin HDD
Thin, Light, Affordable.
- One of the thinnest and lightest laptop HDDs—5mm, 3.3 oz and thinner than a pencil
- Affordable, high-capacity storage gives system builder options when integrating low profile storage into slim laptop and ultrabook solutions
- Compatible with every portable PC with a standard SATA 6Gb/s interface, enabling easy upgrade or design integration.
- Up to 500GB in 25% less space—get industry-leading cost-per-GB and cost-per-millimeter
- Frees up valuable space within a device to accommodate additional features.
- Supports options for Seagate Secure™ Self-Encrypting Drive features with on-the-fly data encryption meeting TCG Opal protocol.
Best-Fit Applications
- Slim laptops or ultrabooks.
- Extending high-capacity, affordable storage into other applications and slim devices.
- Backup storage.
Compatibility:
This drive is compatible with any server that accepts 2.5" x 5mm (Ultra Thin) SATA drive.
Drive Model | ST500LT032 |
---|---|
Capacity | 500GB |
Interface | SATA 6Gb/s |
Performance | |
Self-Encrypting Drive Model | No |
Cache (MB) | 16 |
Seek Average, Read (ms) | <13 |
Seek Average, Write (ms) | <15 |
Max. Sustained Data Transfer Rate OD (MB/s) | 100 |
Max. Data Transfer Rate (MB/s) | 600 |
Configuration/Organization | |
Bytes per Sector (logical/physical) | 512/4096 |
Reliability/Data Integrity | |
Load/Unload Cycles | 600,000 |
Nonrecoverable Read Errors per Bits Read, Max | 1 per 10E14 |
Power Management | |
Startup Power, Typical (A) | 1.0 |
Power Seek, Typical (W) | 1.4 |
Power Idle, Typical (W) | 0.48 |
Environmental | |
Operating Temperature (°C) | 0 to 60 |
Nonoperating Temperature (°C) | -40 to 70 |
Operating Shock: 2ms (Gs) | 400 |
Nonoperating Shock: 1ms (Gs) | 1000 |
Acoustics Idle Typical (bels-sound power) | 2.0 |
Acoustics Seek, Typical (bels-sound power) | 2.2 |
Physical | |
Height (mm/in) | 5.0/0.197 |
Width (mm/in) | 69.85/2.75 |
Depth (mm/in) | 100.35/3.95 |
Weight (g/lb) | 93/0.205 |
Special Features | |
Halogen Free | Yes |
RoHS Compliance | Yes |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 1E9142-020 731073-001
Weight: 1 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
