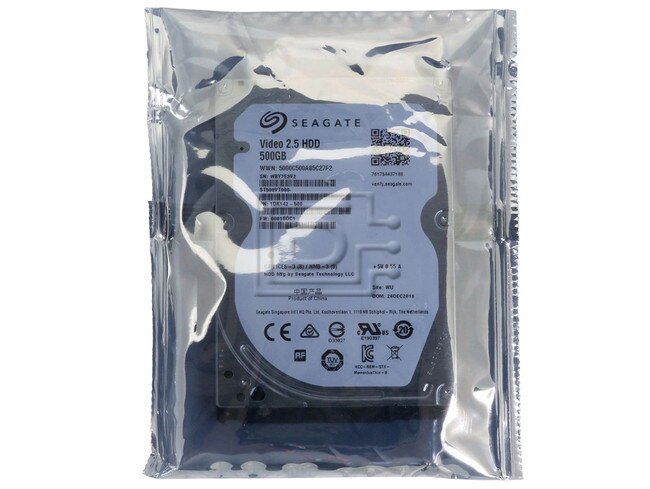

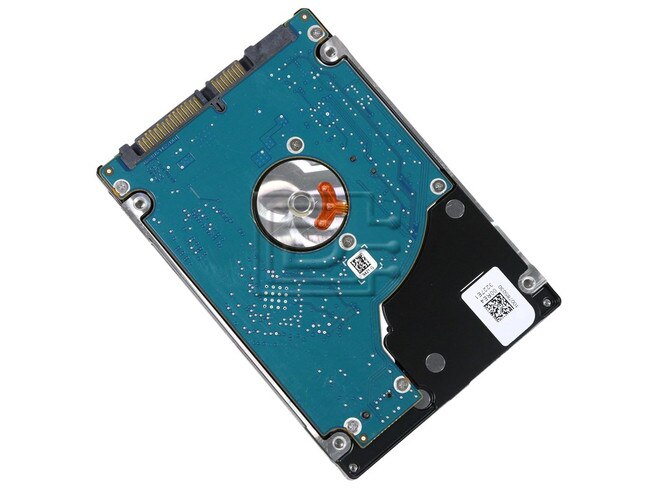

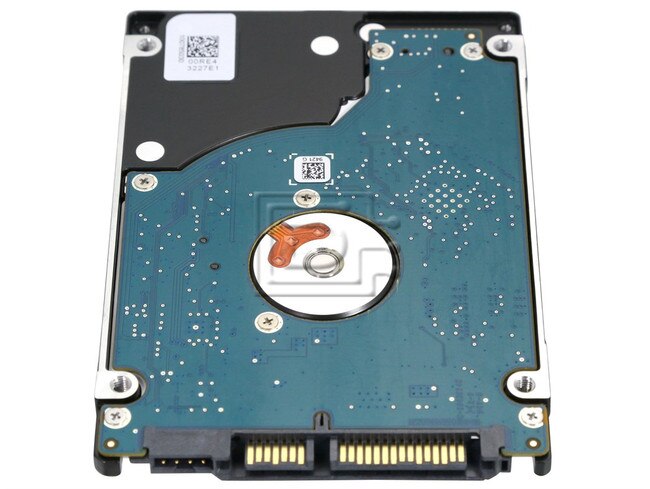

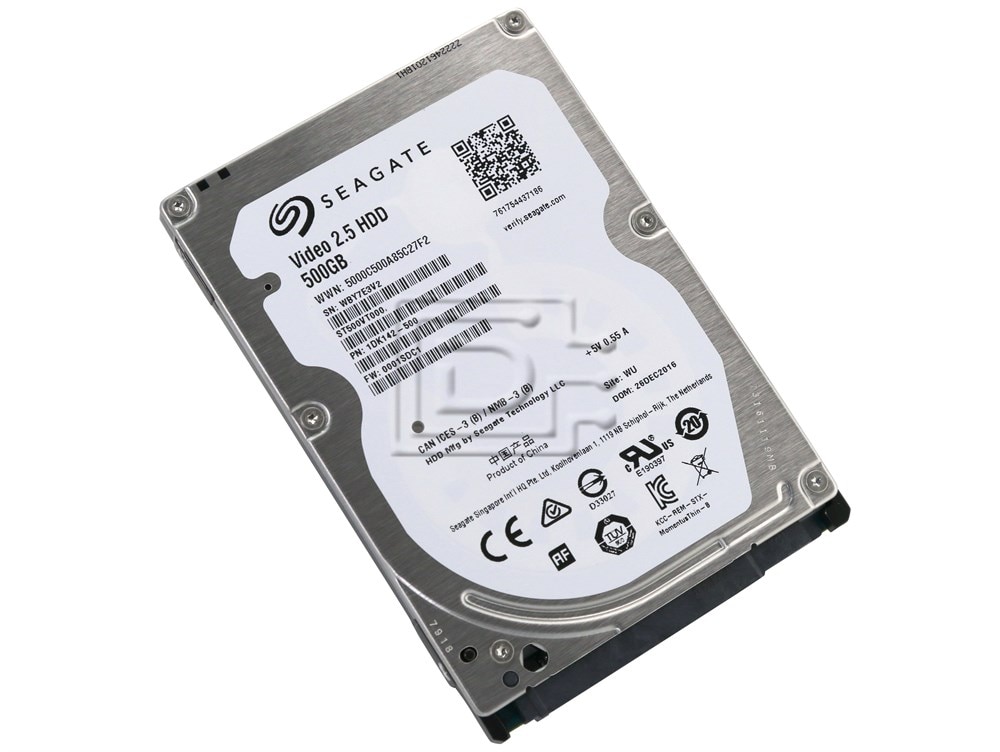

Seagate ST500VT000 500GB SATA Hard Drive

Seagate Part #/MPN: ST500VT000

DiscTech Item #: SGT-ST500VT000-BN-OE


Capacity: 500GB

Speed: 5,400RPM

Interface Types: SATA

Form Factor: 2.5inx7mm Fits All laptops

Sector Size: 512 / 512e

Sustained Throughput: 100

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 16MB

Seagate Video ST500VT000 / 1BS142 / 1DK142 500GB 2.5-inch 6Gbps 5.4K RPM SATA Hard Drive - Brand New

Seagate Video ST500VT000 / 1BS142 / 1DK142 500GB 2.5" 6.0 Gb/s 5400 RPM Serial ATA / SATA Hard Drive / HDD - Brand New

Reliable. Quiet. Low Power

  • Purpose-built 2.5-inch drive tuned for video streaming, 24×7 operation and low power consumption
  • Small form factor—1/6 the size of 3.5-inch solutions—allows system cost reduction, operational power savings and fanless design while supporting flexibility in a sleeker industrial system design.
  • Eco-friendly power consumption enables energy-efficient, always-on systems with up to 55% in power savings in comparison to 3.5-inch solutions.
  • Proven Seagate reliability of 0.55% AFR supports longevity in demanding consumer electronic environments.
  • Designed for cool, quiet, worry-free operation
  • Media streaming optimized for smooth content delivery of up to 12 HD streams

Best-Fit Applications

  • DVR and media center applications
  • Home theater PCs
  • Karaoke and audio jukeboxes
  • Cable, satellite and IPTV set-top boxes
  • In-camera or surveillance systems

Video 2.5 HDD
Model NumberST500VT000
Alt Model Number1BS142
Interface OptionsSATA 6Gb/s
Cache, Multisegmented (MB)16
Simultaneous HDTV Streams Supported (Assumes 20Mb host buffer per stream)12
Power-On to Ready (typical, sec)3.0
Standby to Ready (typical, sec)2.5
Maximum Sustained Data Transfer Rate (MB/s)100
Voltage Tolerance (including noise)5V ± 5%
Nonrecoverable Read Errors per Bits Read1 sector per 10E14
Annualized Failure Rate (AFR)0.55%
Load/Unload Cycles (software/hardware-controlled power cycles)20,000
Power Management
Startup Current (5V, A max)1.0
Operating Seeks (W) 1.5
Idle Average (W)0.66
Standby/Sleep Mode (typical, W)0.18
Temperature (°C)
Operating (drive case max)
Nonoperating (drive case min)
Nonoperating (ambient)

–40 to 70
Temperature Gradient, Operating/Nonoperating (°C per hour max)20/35
Relative Humidity, Operating/Nonoperating (non-condensing, %)5 to 95
Wet Bulb Temperature, Operating/Nonoperating (°C max)37.7/40.0
Operating: 2ms (max, Gs)
Nonoperating: 1ms (max, Gs)

Vibration, Operating
5Hz to 200Hz (Gs, max displacement applies below 10Hz)
200Hz to 500Hz (Gs, 0 to peak)

Vibration, Nonoperating
5Hz to 500Hz (Gs, max displacement applies below 22Hz)

PVR Profile (typical/max, bels)2.2/2.4
Height (mm/in)7.0/0.276
Width (mm/in)70.1/2.76
Depth (mm/in)100.55/3.959
Weight (g/lb, max)95/0.209

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 1BS142 1DK142

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
