Seagate Part #/MPN: ST6000NM0014
DiscTech Item #: SGT-ST6000NM0014-FR-OE
- Factory RefurbishedCondition Levels Explained
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
Product Warranties ExplainedThe product has a manufacturer warranty for the time period specified.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 6TB
Speed: 7,200RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 4Kn
Sustained Throughput: up to 226
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
On-Board Cache: 128KB

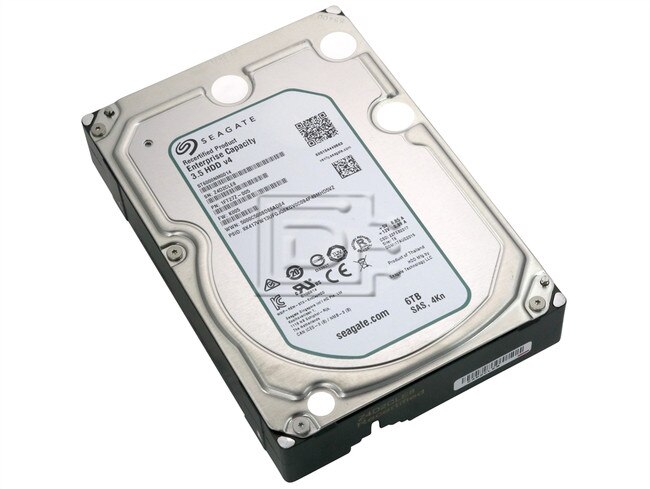

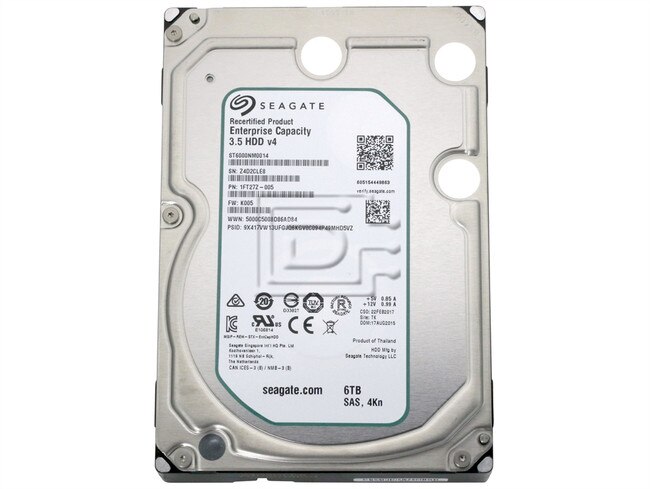

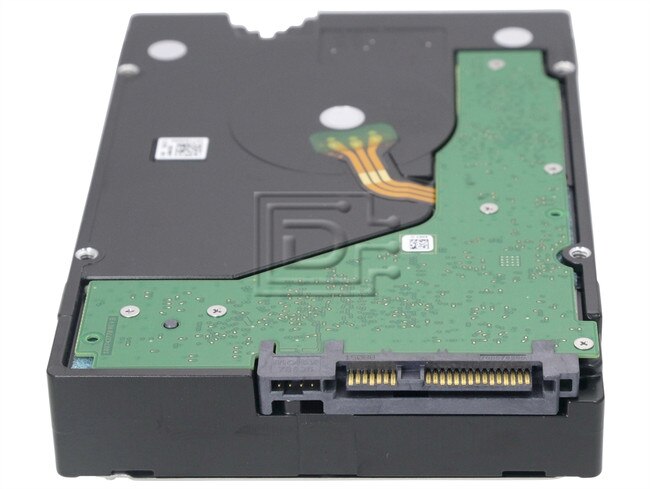

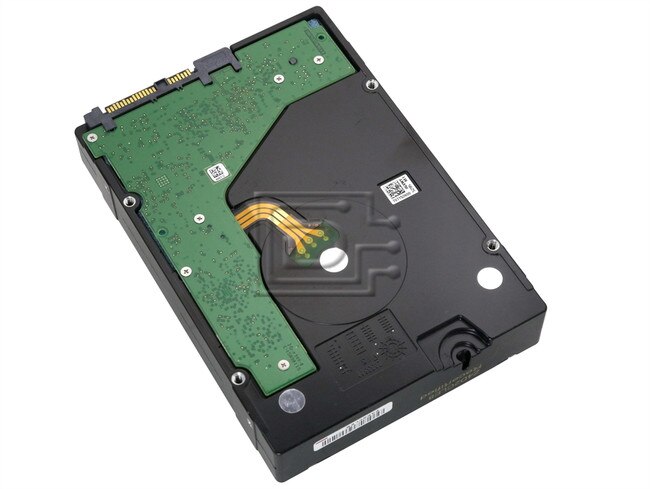

Seagate ST6000NM0014 6TB 3.5" 12Gbps 7200RPM Enterprise SAS 4Kn HDD - Factory Recertified
Seagate ST6000NM0014 6TB 3.5" 12Gbps 7200RPM Enterprise SAS 4Kn HDD - Factory Recertified
Capacity-Optimized Enterprise Hard Drive for Bulk-Data Applications
- Highest-capacity large form factor enterprise drive—50% more capacity over last generation with up to 6TB—for demanding data growth
- Fastest high-capacity HDD with best-in-class random and sequential read/write Performance
- Eighth-generation drive technology for reliable access to bulk storage of unstructured data
- 12Gb/s SAS interface for easy integration into replicated and RAID storage systems
- Enhanced error correction, super parity and end-to-end SAS-based data integrity for accurate data storage
- Industry-leading rotational vibration tolerance ensures consistent performance.
- Improved power and cooling efficiencies with low power consumption and on-demand PowerChoice™ technology based on T10/T13 power management standards
- Engineered for 24×7 workloads of 550TB/yr—10× that of desktop drives
- Robust performance with dual processors, ramp load technology, top-cover-attached motor and humidity sensor for optimum performance in all chassis.
Best-Fit Applications
- Hyperscale applications
- High-capacity RAID storage
- Mainstream enterprise external storage arrays (SAN, NAS, DAS)
- Cloud data centers—replicated bulk data storage
- Enterprise backup and restore—D2D, virtual tape
- Centralized surveillance
Compatibility:
This drive is compatible with any server that accepts 3.5" x 1.0" (LFF) 4Kn SAS drives.
| Drive Model | ST6000NM0014 |
|---|---|
| Capacity | 6TB/6000GB |
| Interface | SAS 12Gbps |
| Self-Encrypted Drive | No |
| Features | |
| Protection Information (T10 DIF) | Yes |
| Humidity Sensor | Yes |
| Super Parity | Yes |
| Low Halogen | Yes |
| PowerChoice Technology | Yes |
| Cache, Multisegmented (MB) | Yes |
| Reliability/Data Integrity | |
| Mean Time Between Failures (MTBF, hours) | 1.4M |
| Reliability Rating @ Full 24x7 Operation (AFR) | 0.63% |
| Nonrecoverable Read Errors per Bits Read | 1 sector per 10E15 |
| Power-On Hours per Year | 8760 (24x7) |
| Sector Size (Bytes per Logical Sector) | 4096 / 4Kn |
| Performance | |
| Spindle Speed (RPM) | 7200 |
| Interface Access Speed (Gb/s) | 12.0 |
| Max. Sustained Transfer Rate OD (MB/s) | up to 226 |
| Average Latency (ms) | 4.16 |
| Interface Ports | Dual |
| Rotation Vibration @ 1500 Hz (rad/s) | 12.5 |
| Power Consumption | |
| Idle Power, Average (W) | 7.97 |
| Typical Operating, Random Read (W) | 11.86 |
| Power Supply Requirements | +12V and +5V |
| Enviromental | |
| Temperature, Operating (°C) | 5 to 60 |
| Vibration, Nonoperating: 10Hz to 500Hz (Grms) | 4.9 |
| Shock, Operating, 2ms (Read/Write) (Gs) | 70/40 |
| Shock, Nonoperating, 1ms and 2ms (Gs) | 250 |
| Physical | |
| Height (mm/in) | 26.1/1.028 |
| Width (mm/in) | 101.85/4.010 |
| Depth (mm/in) | 147/5.878 |
| Weight (g/lb) | 780/1.720 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 2.5 lb
Warranty: 1 Year DiscTech
Factory Refurbished
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
The product has a manufacturer warranty for the time period specified.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
