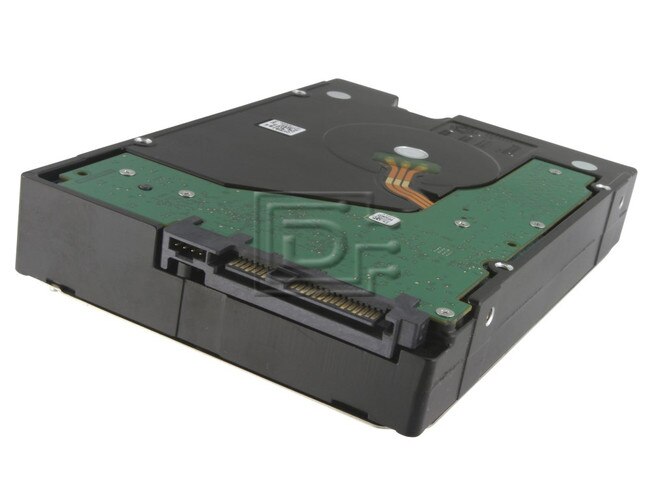

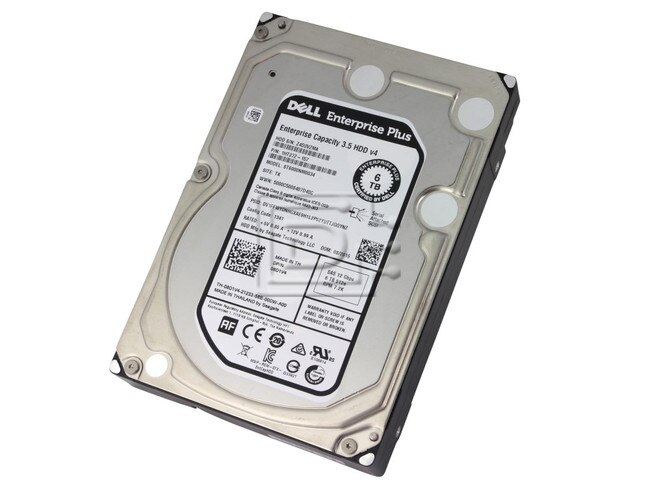

Seagate ST6000NM0034 / 8D1V4 6TB Dell Enterprise Plus SAS Hard Drive

Seagate ST6000NM0034 1HT27Z-157 8D1V4 08D1V4 SAS Hard Drive Image 1 image
  • New Pull
    Condition Levels Explained

    The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$359.00

Capacity:6TB
Speed:7.2K RPM
Interface Types:SAS
Form Factor:3.5" LFF Hard Drive
Electrical Interface:SAS-3 12Gbps
RAM:128MB

Description

Seagate ST6000NM0034 6TB / 6000GB 12.0Gbps 7,200 RPM Dell Enterprise Plus 512E SAS Hard Drive - New Pull OEM

Alt MPN: 1HT27Z-157
Dell Enterprise Plus PNs: 8D1V4, 08D1V4

Compellent

Enterprise Capacity 3.5 HDD

Capacity-Optimized Enterprise Hard Drive for Bulk-Data Applications

  • Highest-capacity large form factor enterprise drive—50% more capacity over last generation with up to 6TB—for demanding data growth
  • Fastest high-capacity HDD with best-in-class random and sequential read/write performance
  • Eighth-generation drive technology for reliable access to bulk storage of unstructured data
  • Both 12Gb/s SAS and SATA 6Gb/s interfaces for easy integration into replicated and RAID storage systems
  • Enhanced error correction, super parity and end-to-end SAS-based data integrity for accurate data storage
  • Industry-leading rotational vibration tolerance ensures consistent performance
  • Improved power and cooling efficiencies with low power consumption and on-demand PowerChoice™ technology based on T10/T13 power management standards
  • Engineered for 24×7 workloads of 550TB/yr—10× that of desktop drives
  • Robust performance with dual processors, ramp load technology, top-cover attached motor and humidity sensor for optimum performance in all chassis

Best-Fit Applications

  • Hyperscale applications
  • High-capacity RAID storage
  • Mainstream enterprise external storage arrays (SAN, NAS, DAS)
  • Cloud data centers—replicated bulk data storage
  • Enterprise backup and restore—D2D, virtual tape
  • Centralized surveillance

Compatibility:

This drive is compatible with servers that accept 3.5"x1" (LFF) SAS drives with Dell Enterprise Plus firmware. for Compellent systems

Specifications

Specifications
Standard Model Number (512E)ST6000NM0034
Features
Protection Information (T10 DIF) Yes
Humidity SensorYes
Super ParityYes
Low HalogenYes
PowerChoice TechnologyYes
Cache, Multisegmented (MB)128
Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours)1.4M
Reliability Rating @ Full 24x7 Operation (AFR)0.63%
Nonrecoverable Read Errors per Bits Read1 sector per 10E15
Power-On Hours per Year8760 (24x7)
Sector Size (Bytes per Sector)512, 520, 528
Performance
Spindle Speed (RPM)7200
Interface Access Speed (Gb/s)12.0, 6.0, 3.0
Max. Sustained Transfer Rate OD (MB/s)up to 226
Average Latency (ms) 4.16
Interface PortsDual
Rotation Vibration @ 1500 Hz (rad/s²)12.5
Power Consumption
Idle Power, Average (W)7.97
Typical Operating, Random Read (W) 11.86
Power Supply Requirements+12V and +5V
Physical
Height (in/mm, max)1.028/26.1
Width (in/mm, max)4.010/101.85
Depth (in/mm, max)5.878/147.0
Weight (lb/g)1.720/780
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 1HT27Z-157 8D1V4 08D1V4

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Condition

New Pull

Warranty

1 Year DiscTech Warranty
