| Capacity: | 6TB |
| Speed: | 7.2K RPM |
| Interface Types: | SATA |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SATA 600 - 6Gbps |
| RAM: | 128MB |
Description

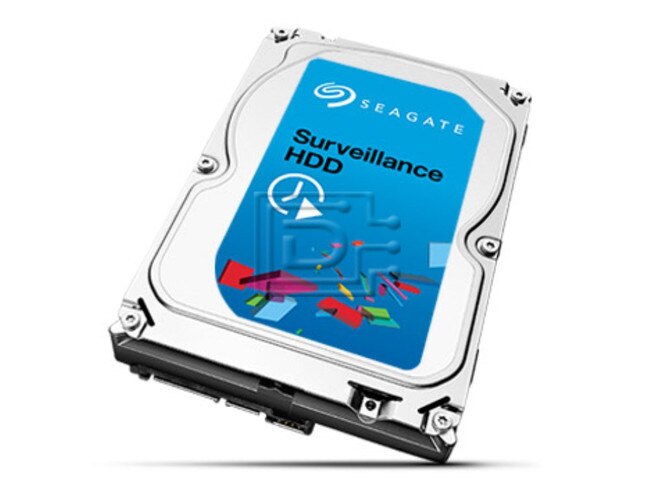

Seagate Surveillance ST6000VX0001 / 1SH17Z-500 6TB 6Gbps 7.2K RPM 4Kn SATA HDD - Brand New
Seagate Surveillance ST6000VX0001 6TB / 6000GB 6Gbps 7200 RPM 4K Native Serial ATA Hard Disk Drive - Brand New
Seagate Product Number: 1SH17Z-500
Surveillance HDD
The New Generation SV Drive
- The industry's first surveillance-optimized hard drive precision-tuned for high write surveillance workloads operating 24x7
- Capacities up to 8TB support 64 cameras per drive and 8+ drives per system
- Engineered for workloads of 180TB/year, three times that of desktop drives
- Low power consumption and startup current to minimize heat and vibration emission, improving long-term drive reliability
- Tarnish-resistant components to help protect drive from environmental elements, increasing field reliability
- Customize power settings for incremental savings during system downtime without compromising time to record
- Reliable performance in multi-drive systems with support from RV sensors
- Optional 3-year +Rescue Data Recovery Service plan to help protect against data loss from viruses, software issues or mechanical and electrical breakdowns
Best-Fit Application
- NVR
- Embedded SDVR
- Hybrid SDVR
- Surveillance DVR
Compatibility:
This drive is compatible with any server that accepts 3.5in x 1.0in (LFF) SATA drives.
Specifications
| Surveillance HDD | |
|---|---|
| Standard Model Numbers | ST6000VX0001 |
| Seagate Product Number | 1SH17Z-500 |
| Capacity | 6TB / 6000GB |
| Interface | SATA 6Gb/s |
| Cache | 128MB |
| Bytes per Sector | 4096 |
| Performance | |
| R/V (Rotational Vibration) Sensor | Yes |
| Drive bays supported | 8+ |
| Cameras Supported | Up to 64 |
| Max Sustainable Transfer Rate | 180MB/s |
| Voltage | |
| Voltage Tolerance, Inc. Noise (5V) | ±5% |
| Voltage Tolerance, Inc. Noise (12V) | ±10% |
| Power Management | |
| Startup Power (12V, A) | 1.8 |
| Average Operating Power | 9W |
| Idle Average (W) | 7.2W |
| Standby Mode | 0.6W |
| Sleep Mode | 0.6W |
| Environmental/Temperature | |
| Operating (ambient, min) | 5°C |
| Operating (drive case, max) | 70°C |
| Nonoperating (ambient, min) | -40°C |
| Nonoperating (ambient, max) | 70°C |
| Reliability | |
| Tarnish Resistant | Yes |
| Load/Unload Cycles | 300,000 |
| Nonrecoverable Read Errors per Bits Read, Max | 1 per 10E14 |
| MTBF (Hours) | 1,000,000hr |
| Power-On Hours | 8760 |
| Physical | |
| Height (mm/in) | 26.11mm/1.028n |
| Width (mm/in, max) | 101.85mm/4.01in |
| Depth (mm/in, max) | 147mm/5.878in |
| Weight (g/lb) | 780g/1.72lb |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 1SH17Z-500
Weight: 1.8 lb
Warranty: 3 Year Manufacturer
