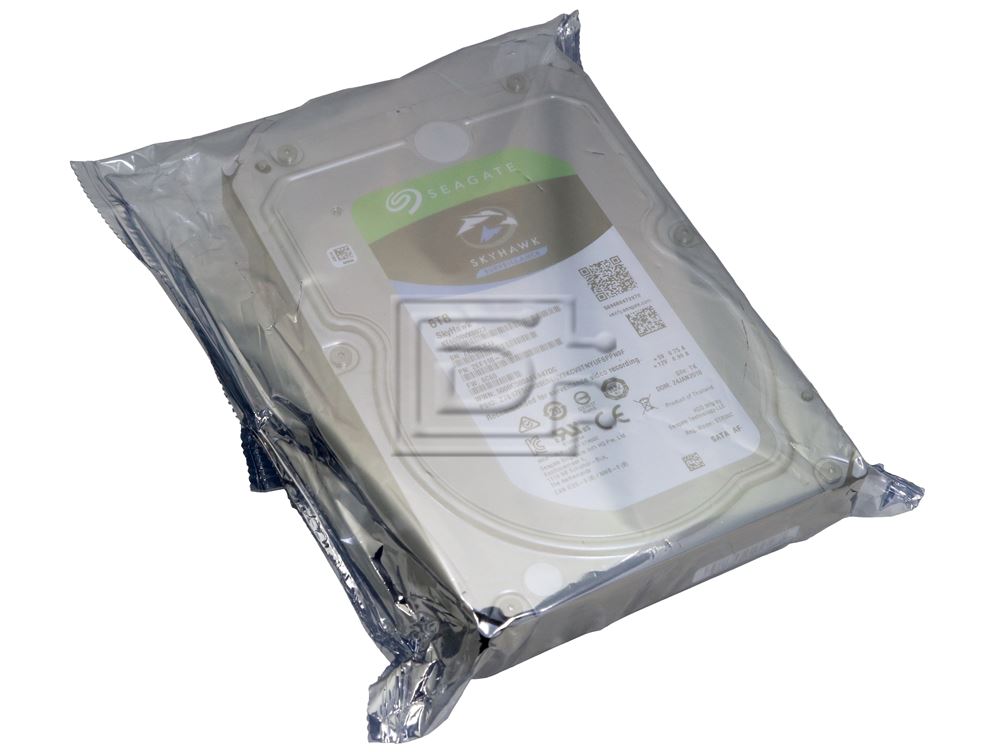

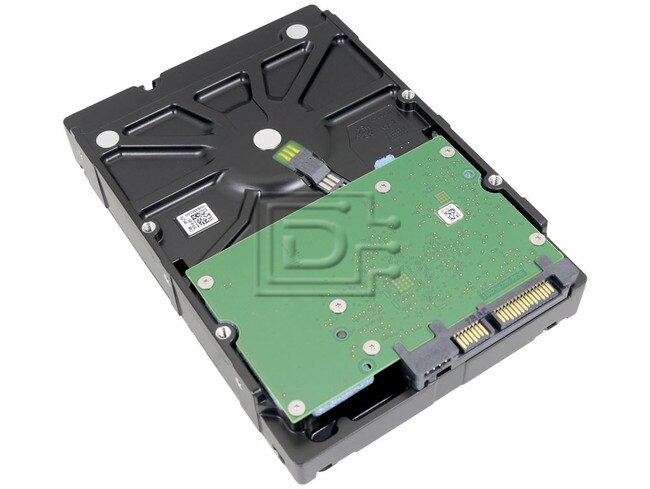

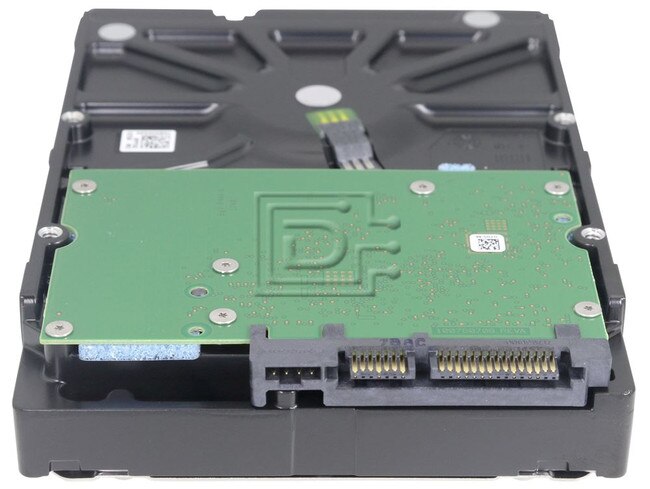

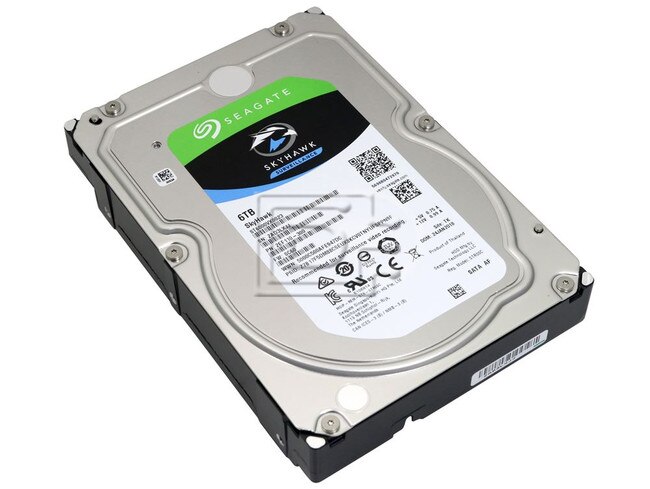

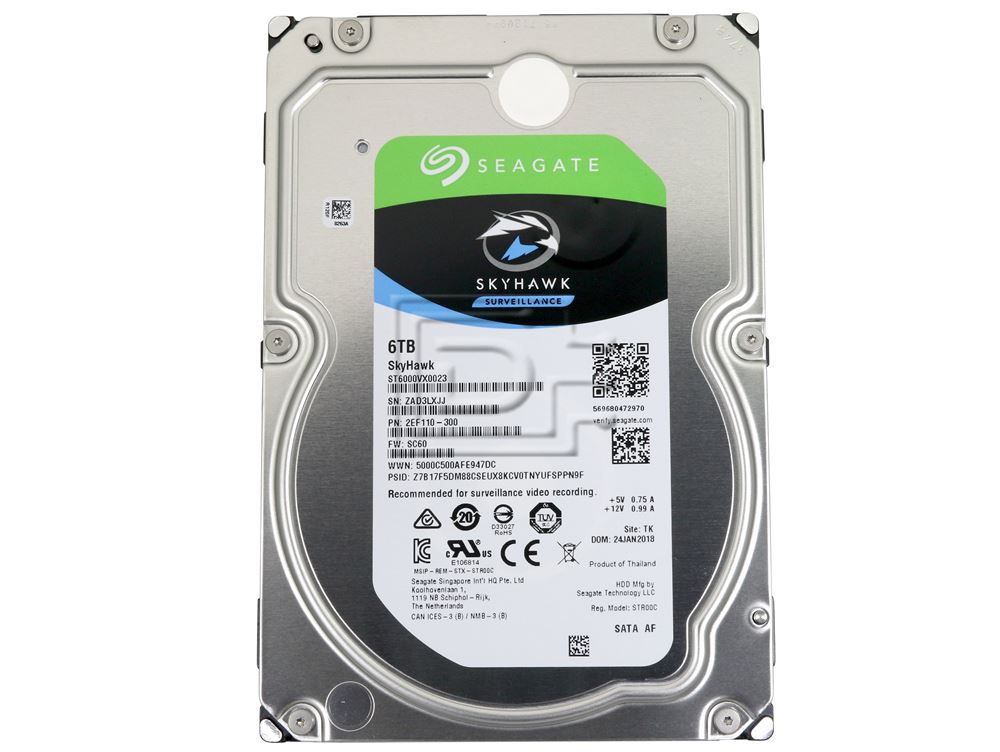

Seagate ST6000VX0023 6TB SATA Hard Drive

Seagate ST6000VX0023 SATA Hard Drive Image 1 imageSeagate ST6000VX0023 SATA Hard Drive Image 2 imageSeagate ST6000VX0023 SATA Hard Drive Image 3 imageSeagate ST6000VX0023 SATA Hard Drive Image 4 imageSeagate ST6000VX0023 SATA Hard Drive Image 5 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

  • 3 Year ManufacturerWarranty
    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.

$194.00

Capacity:6TB
Speed:7.2K RPM
Interface Types:SATA
Form Factor:3.5" LFF Hard Drive
Electrical Interface:SATA 600 - 6Gbps
RAM:256MB

Description

Seagate SkyHawk Surveillance ST6000VX0023 6TB / 6000GB 3.5-in 6.0 Gb/s 7200 RPM 512 Emulation SATA / Serial ATA Hard Disk Drive - Brand New

SKYHAWK SURVEILLANCE
Smart, Safe, Secure, Seagate Surveillance-Optimized Storage

Only Seagate has been making drives specifically for surveillance storage for ten years. SkyHawk is built to keep systems in the field longer and reduce the need for post-deployment support

Key Advantages
  • ImagePerfect firmware supports 24 x 7 surveillance-optimized workloads tuned to record ~90% of the time and play back video footage the remaining 10%, and supports more cameras recording at higher resolutions than traditional drives.
  • Workload rating of 180TB/year allows SkyHawk to perform reliably in write-intensive surveillance systems – 3x the workload rating of a desktop-class.
  • NVR-rady design allows drives to maintain performance in RAID and multi-drive systems, giving customers the flexibility to grow with the booming NVR market and scale their systems when more storage is needed.
  • ATA streaming support sustains recording from up to 64 HD cameras for smooth, uninterrupted footage.
  • Up to 10TB or over 2000 hours of HD video storage supports an increased number of cameras and helps to ensure longer data retention periods are met.
  • Lower power consumption means a reduction in heat emissions, which improves reliability in surveillance solutions.
  • Tarnish-resistant components help protect drive from environmental elements increasing field reliability.

Compatibility

This drive is compatible with any server that accepts 3.5in x 1.0in (LFF) SATA drives.

Specifications

Sky Hawk Surveillance Seagate
Model NumbersST6000VX0023
InterfaceSATA 6Gb/s
Sector Size512e
Features and Performance
Formatted Capacity6TB / 6000GB
SATA Transfer Rates Supported (Gb/s)6.0/3.0/1.5
Drive Bays Supported8+
Cameras SupportedUp to 64
Max Sustained Transfer Rate OD (MB/s)210
Cache, Multisegmented (MB)256
Reliability/Data Integrity
Tarnish ResistantYes
Load/Unload Cycles300,000
Nonrecoverable Read Errors per Bits Read, Max1 per 10E15
Power-On hours (per year)8760
Workload Rate Limit (WRL) (TB/year)180
Mean Time Between Failures (MTBF) (hours)1M
Power Management
Startup Current, Typical (12V, A)2.0
Average Operating Power (W)9
Idle Average (W)7.2
Standby Mode/Sleep Mode, Typical (W)0.6/0.6
Voltage Tolerance (5V)±5%
Voltage Tolerance (12V)±10%
Environmental
Temperature (°C)
Operating (ambient, min °C)5
Operating (drive case, max °C)70
Nonoperatign (ambient, min °C)-40
Physical
Height (mm/in, max)26.11/1.028
Width (mm/in, max)101.85/4.01
Depth (mm/in, max)146.99/5.787
Weight (g/lb, typical)705/1.55
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1.5 lb

Warranty: 3 Year Manufacturer

Condition

Brand New

Warranty

3 Year Manufacturer Warranty
