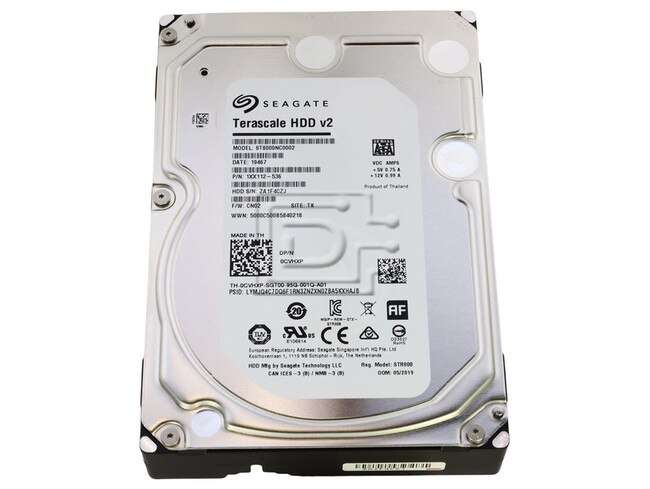

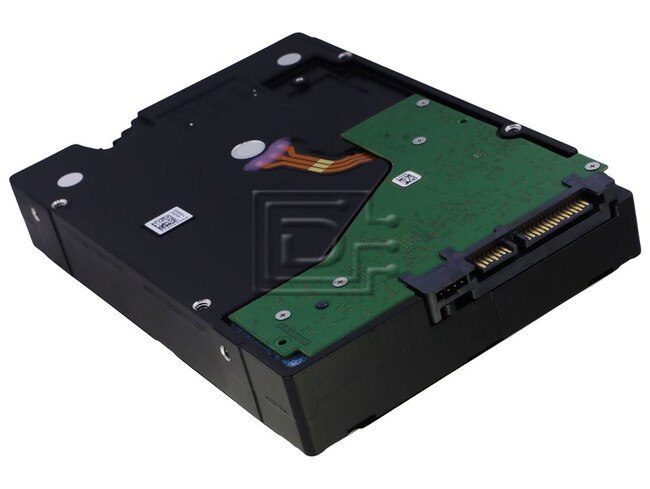

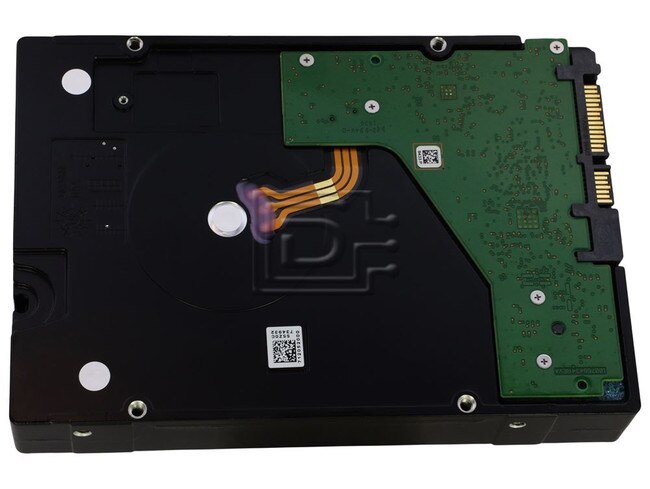

Seagate ST8000NC0002 8TB 3.5" 6Gbps 7.2K RPM ISE Terascale SATA HDD - Brand New
- Brand NewCondition Levels Explained
The product is brand new.
- In Stock:5Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 8TB |
| Speed: | 7.2K RPM |
| Interface Types: | SATA |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SATA 600 - 6Gbps |
| RAM: | 256MB |
Description
Seagate ST8000NC0002 8TB 3.5" 6Gbps 7.2K RPM ISE Terascale SATA HDD - Brand New
Seagate ST8000NC0002 8TB 3.5" 6Gbps 7.2K RPM ISE Terascale SATA HDD - Brand New
The Serial ATA (SATA) interface provides several advantages over the traditional (parallel) ATA interface. The primary advantages include:
- Easy installation and configuration with true plug-and-play connectivity. It is not necessary to set any jumpers or other configuration options.
- Thinner and more flexible cabling for improved enclosure airflow and ease of installation.
- Scalability to higher performance levels.
In addition, SATA makes the transition from parallel ATA easy by providing legacy software support. SATA was designed to allow you to install a SATA host adapter and SATA disk drive in your current system and expect all of your existing applications to work as normal.
The SATA interface connects each disk drive in a point-to-point configuration with the SATA host adapter. There is no master/slave relationship with SATA devices like there is with parallel ATA. If two drives are attached on one SATA host adapter, the host operating system views the two devices as if they were both “masters” on two separate ports. This essentially means both drives behave as if they are Device 0 (master) devices.
The SATA host adapter and drive share the function of emulating parallel ATA device behavior to provide backward compatibility with existing host systems and software. The Command and Control Block registers, PIO and DMA data transfers, resets, and interrupts are all emulated.
The SATA host adapter contains a set of registers that shadow the contents of the traditional device registers, referred to as the Shadow Register Block. All SATA devices behave like Device 0 devices. For additional information about how SATA emulates parallel ATA, refer to the “Serial ATA International Organization: Serial ATA Revision 3.0”.
These drives provide the following key features:
- 7200 RPM spindle speed.
- PowerChoice™ for selectable power savings
- High instantaneous (burst) data-transfer rates (up to 600MB per second).
- Perpendicular recording technology provides the drives with increased areal density.
- State-of-the-art cache and on-the-fly error-correction algorithms.
- Native Command Queueing with command ordering to increase performance in demanding applications.
- Full-track multiple-sector transfer capability without local processor intervention.
- SeaTools™ diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
- Support for S.M.A.R.T. drive monitoring and reporting.
- Supports latching SATA cables and connectors.
- Worldwide Name (WWN) capability uniquely identifies the drive.
Compatibility:
This drive is compatible with any server that accepts 3.5"x1.0" (LFF Hard Drive) SATA drives.
Specifications
| Drive Model | ST8000NC0002 |
|---|---|
| Capacity | 8TB/8000GB |
| Interface | SATA 6Gb/s |
| Features | |
| In(SED) models | Yes |
| Guaranteed sectors | 15,628,053,168 |
| Heads | 12 |
| Disks | 6 |
| Bytes per sector | 4096 (512 byte emulation) |
| Recording density, KBPI (Kb/in max) | 2241 |
| Track density, KTPI (ktracks/in avg.) | 362 |
| Areal density, (Gb/in2 avg) | 1333 |
| Spindle speed (RPM) | 7200 |
| Internal data transfer rate (Mb/s max) | 2546 |
| Sustained data transfer rate OD (MiB/s) | 237 |
| I/O data-transfer rate MB/s max) | 600 |
| ATA data-transfer modes supported | PIO modes 0–4, Multiword DMA modes 0–2, Ultra DMA modes 0–6 |
| Cache buffer | 256MB |
| Height (mm/in max) | 26.1/1.028 |
| Width (mm/in max) | 101.85/4.010 |
| Length (mm/in max) | 147.00/5.787 |
| Weight (g/lb Typical) | 780 |
| Average latency | 4.16ms |
| Power-on to ready (sec max) | 25.0 |
| Standby to ready (sec max) | 25.0 |
| Track-to-track seek time (ms typical) | 1.0 read 1.2 write |
| Average seek, read (ms typical) | 16.0 |
| Average seek, write (ms typical) | 16.0 |
| Startup current (typical) 12V (peak) | 2.0A |
| Voltage tolerance (including noise) | 5V: ± 5%, 12V: ± 10% |
| Operating Temperature gradient (°C per hour max) | 20°C |
| Non-Operating Temperature gradient (°C per hour max) | 30°C |
| Relative Operating Humidity | 5% to 90% |
| Relative Non-Operating Humidity | 5% to 95% |
| Relative humidity gradient (per hour max) | 30% |
| Altitude, operating | -304.80m (-1000ft) to 3048m (10,000+ft) |
| Altitude, non-operating (below mean sea level, max) | -304.80m (-1000ft) to 12,192m (40,000+ft) |
| Operational Shock (max @ 2 ms) | Read 70 Gs/ Write 40 Gs |
| Non-Operational Shock (max @ 2 ms) | 300 Gs |
| Vibration, operating | 5–22 Hz:___0.25 Gs, Limited displacement, 22–350 Hz: 0.50 Gs, 350–500 Hz: 0.25 Gs |
| Vibration, non-operating | 5Hz to 22Hz: 3.0 Gs, 22Hz to 350Hz: 3.0 Gs, 350Hz to 500Hz: 3.0 Gs |
| Idle Drive acoustics, sound power (bels) | 2.3 (typical) 2.5 (max) |
| Performance seek Drive acoustics, sound power (bels) | 2.8 (typical) 3.0 (max) |
| Non-recoverable read errors | 1 per 10E14 bits read |
| Annualized Failure Rate (AFR) | 1.095% based on 8760 POH |
| Load/Unload cycles (25°C, 50% rel. humidity) | 300,000 |
| Supports Hotplug operation per the Serial ATA Rev. 3.0 specification | Yes |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: CVHXP 0CVHXP
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
Brand New
Warranty
1 Year DiscTech Warranty
