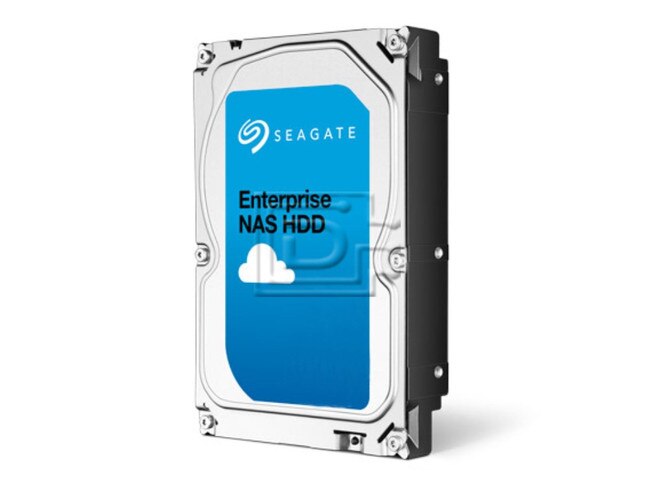

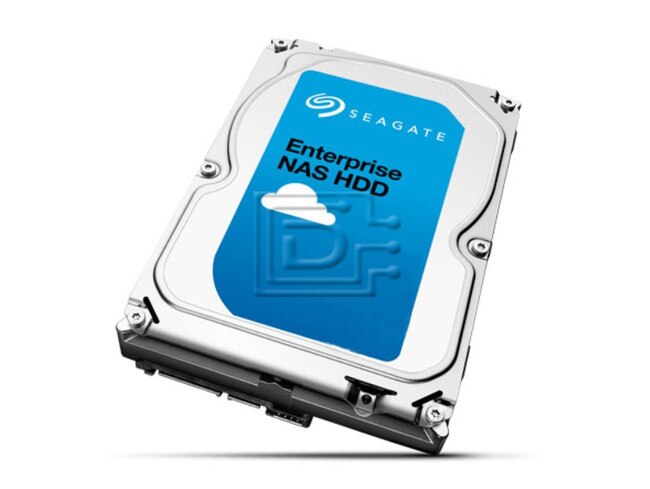

Seagate ST8000NE0001 8TB SATA Hard Drive

Seagate Part #/MPN: ST8000NE0001

DiscTech Item #: SGT-ST8000NE0001-BN-5Y


$285.00

This item is out of stock. Please contact us for options.

  • Special Order - Call for Lead Time
    Special Order - Call for Lead Time

    This item has a variable lead time for fulfilment. Please call us to discuss. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.

$285.00

This item is out of stock. Please contact us for options.


Enterprise Grade

Capacity: 8TB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 230

Average Seek Time: 4.16

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 256MB

Seagate ST8000NE0001 8TB 3.5 inches 6Gbps 7.2K RPM Enterprise NAS SATA HDD - Brand New

Seagate ST8000NE0001 8TB / 8000GB 6.0 Gbps 7200 RPM Enterprise NAS Serial ATA Hard Disk Drive - Brand New

The first 8TB drive optimized for mid-range NAS, server and scale-out cloud storage

  • Enterprise-class reliability and performance for cloud-based storage and NAS applications in 1- to 16-bay enclosures
  • 1.2 million hours MTBF for enterprise-class reliability
  • 300TB-per-year workload rating for mid-range NAS and cloud-based storage
  • 7200-RPM spindle speed performance
  • Double the cache size—256MB multisegmented on 8TB capacity
  • Dual-stage actuators to deliver precision seeks every time
  • SATA 6Gb/s interface for easy integration into NAS and RAID rackmount systems
  • RV sensor for sustained performance and reliability

Best-Fit Applications

  • Cloud-based and NAS storage
  • Backup and disaster recovery
  • Multi-media server and storage
  • File and print server sharing
  • Archiving and cloud replication
  • On-premise private cloud
  • Tiered storage
  • Remote access
  • Virtualization
  • Auxiliary storage


Compatibility:

This drive is compatible with any server that accepts 3.5in x 1.0in (LFF) SATA drives.

Product Specifications
Model Number (512E)ST8000NE0001
Interface OptionsSATA 6Gb/s
Capacity8TB/8000GB
Features
RV SensorsYes
Humidity SensorYes
Super ParityYes
Low HalogenYes
AcuTrac TechnologyYes
Power Balance TechnologyYes
Hot-Plug SupportYes
Cache, Multisegmented (MB)256
Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours)1.2M
Reliability Rating @ Full 24x7 Operation (AFR)0.63%
Nonrecoverable Read Errors per Bits Read1 sector per 10E15
Power-On Hours per Year8760 (24x7)
Sector Size (Bytes per Logical Sector)512/4096
Performance
Spindle Speed (RPM)7200
Interface Access Speed (Gb/s)6.0, 3.0, 1.5
Max. Sustained Transfer Rate OD (MB/s)230
Average Latency (ms)4.16
Interface PortsSingle
Rotation Vibration @ 1500 Hz (rad/s)12.5
Power Consumption
Startup Current, Average (12V, AFR)1.8
Idle Power, Average (W)TBD
Operating Mode, Typical (W)9.0
Standby/Sleep Mode, Typical(W)0.6
Power Supply Requirements+12V and +5V
Environmental
Temperature, Operating (°C)5 to 60
Vibration, Nonoperating: 10Hz to 500Hz (Grms)5.0
Shock, Operating, 2ms (Read/Write)(Gs)70/40
Shock, Nonoperating, 1ms and 2ms (Gs)250
Physical
Height (in/mm, max)1.028/26.1
Width (in/mm, max)4.010/101.85
Depth (in/mm, max)5.878/147
Weight (g/lb)780/1.720

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1.8 lb

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
