Enterprise Grade
Capacity: 8TB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Encryption/SED Supported
Sector Size: 512 / 512e
Sustained Throughput: Up to 237
Average Seek Time: 4.16
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 256MB

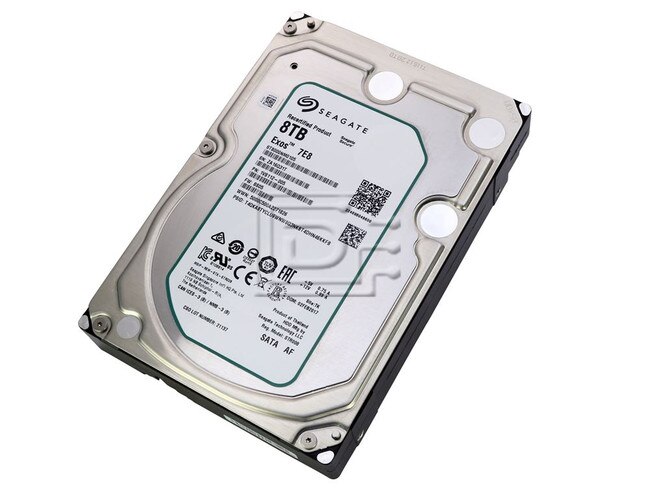

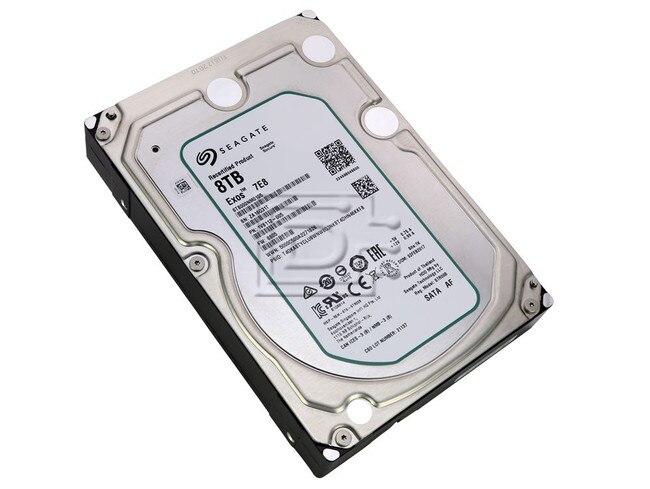

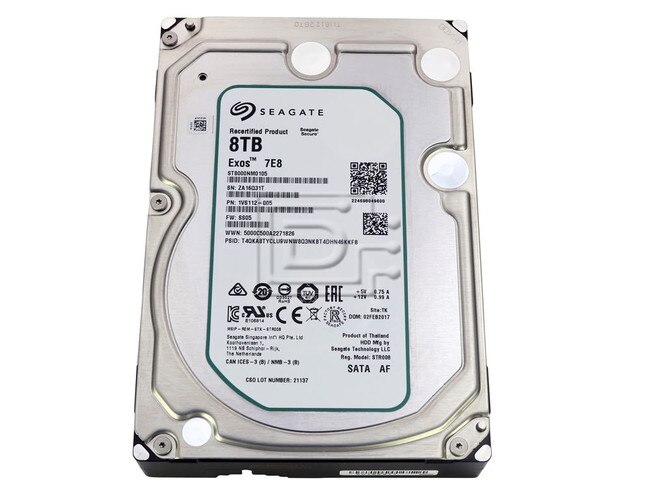

Seagate ST8000NM0105 8TB 3.5 inches 6Gbps 7.2K RPM Enterprise SED 512E SATA HDD – Factory Recertified
Seagate ST8000NM0105 8TB / 8000GB 3.5” 6.0 Gbps 7200 RPM Enterprise Self-Encrypting 512E SATA Hard Disk Drive – Factory Recertified
Capacity-Optimized Enterprise Hard Drive for Bulk-Data Applications
- 8TB, 3.5-inch enterprise drive with industry-leading 6-disk technology, resulting in 33% more storage in the same storage slot
- Advanced Write Caching feature to utilize enhanced algorithms, resulting in the industry’s highest nearline storage workload performance efficiencies—100% performance improvement in random writes over last-generation drive
- Widely accepted, proven ninth-generation conventional perpendicular recording technology for reliable access to unstructured data in bulk storage applications
- SATA 6Gb/s interfaces in industry-standard advanced formats for easy integration into replicated and RAID multi-drive storage servers and systems
- State-of-the-art cache, on-the-fly error-correction algorithms, super parity and end-to-end SAS-based data integrity for accurate data storage
- Industry-leading rotational vibration tolerance design helps ensure consistent performance in dense multi-drive systems
- Engineered for 24×7 workloads of 550TB/yr—10× that of desktop drives
- Robust performance with dual processors, ramp load technology, top-cover attached motor and humidity sensor for optimum performance in all chassis
- Seagate Secure™ Self-Encrypting Drive featuring Instant Secure Erase for cost saving drive retirement and secure data-at-rest protection
- Seagate SeaTools™ diagnostic software to provide drive self-tests ensuring unnecessary downtime and maximizing TCO
Best-Fit Applications
- Hyperscale applications/cloud data centers with replicated storage
- Massive scale-out data centers and big data analytics
- High-capacity density RAID storage
- Mainstream enterprise external storage arrays (SAN, NAS, DAS)
- Distributed file systems, including Hadoop and Ceph
- Enterprise backup and restore—D2D, virtual tape
- Centralized surveillance
Compatibility:
This drive is compatible with any server that accepts 3.5in x 1.0in (LFF) SATA drives.
Product Specifications | |
---|---|
SED Model Number (512 Emulation) | ST8000NM0105 |
Interface Options | SATA 6Gb/s |
Capacity | 8TB/8000GB |
Features | |
Protection Information (T10 DIF) | -------- |
Humidity Sensor | Yes |
Super Parity | Yes |
Low Halogen | Yes |
PowerChoice Technology | Yes |
Power Balance Technology | Yes |
Cache, Multisegmented (MB) | 256 |
Advanced Write Caching (2M Internal NOR Flash) | Yes |
Reliability/Data Integrity | |
Mean Time Between Failures (MTBF, hours) | 2.0M |
Reliability Rating @ Full 24x7 Operation (AFR) | 0.44% |
Nonrecoverable Read Errors per Bits Read | 1 sector per 10E15 |
Power-On Hours per Year | 8760 (24x7) |
Sector Size (Bytes per Logical Sector) | 512/4096 |
Performance | |
Spindle Speed (RPM) | 7200 |
Interface Access Speed (Gb/s) | 6.0, 3.0, 1.5 |
Max. Sustained Transfer Rate OD (MB/s) | up to 237 |
Average Latency (ms) | 4.16 |
Interface Ports | Single |
Rotation Vibration @ 1500 Hz (rad/s) | 12.5 |
Power Consumption | |
Idle Power, Average (W) | 9 |
Typical Operating, Random Read (W) | <10 |
Power Supply Requirements | +12V and +5V |
Environmental | |
Temperature, Operating (°C) | 5 to 60 |
Vibration, Nonoperating: 10Hz to 500Hz (Grms) | 5.0 |
Shock, Operating, 2ms (Read/Write)(Gs) | 70/40 |
Shock, Nonoperating, 1ms and 2ms (Gs) | 300 |
Physical | |
Height (in/mm, max) | 1.028/26.1 |
Width (in/mm, max) | 4.010/101.85 |
Depth (in/mm, max) | 5.878/147 |
Weight (g/lb) | 780/1.720 |
Click here to view the manufacturer's item description/brochure
