Seagate Part #/MPN: ST8000NM0206
DiscTech Item #: SGT-ST8000NM0206-BN-5Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 8TB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 249
Average Seek Time: 4.16
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 256MB

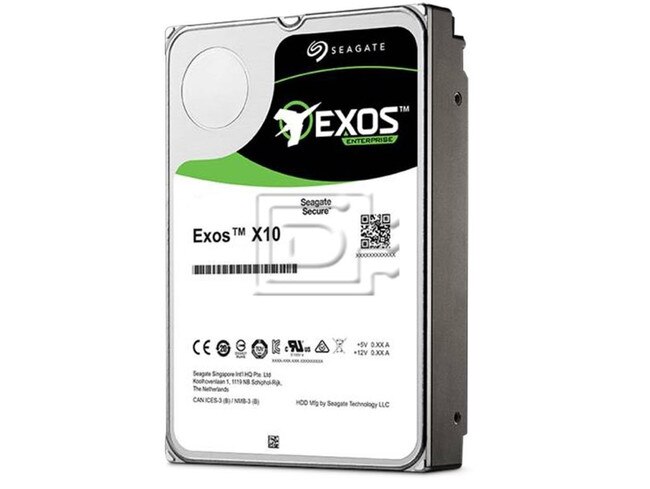

Seagate Exos X10 ST8000NM0206 8TB 3.5-Inch 6Gbps 7.2K RPM Enterprise 512e SATA Hard Drive - Brand New
Seagate Exos X10 ST8000NM0206 8TB / 8000GB 3.5" 6.0 Gb/s 7200 RPM Enterprise 512 Emulation Serial ATA / SATA Hard Drive / HDD - Brand New
Scalable. Responsive. Innovative.
Exos X10
The Seagate Exos X10 hard drive includes 10TB and 8TB secure, high-capacity, high-performance enterprise hard drives optimized for demanding hyperscale applications for maximum TCO savings.
Maximum Storage Capacity for High Rack Space Efficiency
The Exos X10 enterprise hard drives support up to 10TB per drive, 1 providing 25% more petabytes per rack. 2 High storage densities allow the latest technology and greatest efficiencies to help catalyze the datasphere, enabling data center architects and IT professionals to deliver trusted performance, rock-solid reliability, ironclad security and low TCO for demanding 24×7 operations.
Industry's Highest Performance Combined With the Lowest Power and Weight for Lower TCO
Exos X10 drives offer the industry's highest 10TB hard drive performance with advanced write caching, making it perfect for OLTP, Hadoop, Ceph and HPC applications. The hyperscale SATA model is tuned for large data transfers and offers a 20% boost in random write performance. 2 Experience the industry's best in IOPS/watt by optimizing your storage with Seagate's PowerBalance feature.
Innovative Helium Design
The proven, enterprise-class Exos X10 is backed by a 2.5M-hour MTBF. Built on a wrought aluminum base, the helium-sealed drive design with no porosity and uniform density is engineered with superior material and a wide-weld design, and utilizes the latest hermetic interconnect technology to support higher data rate heads and higher pin counts to excel in extreme thermal conditions in a robust storage infrastructure. These Seagate X class hard drives provide digital environmental sensors that measure internal humidity, pressure and temperature, to help ensure high reliability and performance.
Enhanced Enterprise Reliability, Data Protection and Security
The Exos X10 hard drives offer advanced security features that help protect data where it lives—on the drive. Advanced security levels to prevent unauthorized access to a drive and safeguard stored data include Seagate Downloads & Diagnostics, TCG-compliant Self-Encrypting Drive and government-grade FIPS/Common Criteria tamper-resistant hard drive. 3 Seagate Secure™ drives simplify drive repurposing and disposal, help protect data-at-rest, and comply with corporate and federal data security mandates.
Best-Fit Applications
- Hyperscale applications/cloud data centers
- Massive scale-out data centers
- OLTP and HPC applications
- High-capacity density RAID storage
- Mainstream enterprise external storage arrays
- Distributed file systems, including Hadoop and Ceph
- Enterprise backup and restore— D2D, virtual tape
- Centralized surveillance
Compatibility:
This drive is compatible with any server that accepts 3.5in x 1.0in SATA Drive.
| Specifications | |
|---|---|
| Capacity | 8TB/8,000GB |
| Standard Model (512e) | ST8000NM0206 |
| Features | |
| Helium Sealed-Drive Design With Wide Weld | Yes |
| Digital Environmental Sensors | Yes |
| Protection Information (T10 DIF) | --- |
| SuperParity | Yes |
| PowerChoice™ Power/Performance Technology | Yes |
| Low Halogen/Hot-Plug Support | Yes |
| Cache, Multisegmented (MB) | 256 |
| Organic Solderability Preservative | Yes |
| Reliability/Data Integrity | |
| Mean Time Between Failures (MTBF, hours) | 2.5 Million |
| Reliabilility Rating @ Full 24x7 Operation (AFR) | 0.35% |
| Non-recoverable Read Errors per Bits Read, Max | 1 sector per 10E15 |
| Power-On Hours | 8760 |
| 512e Sector Size (Bytes per Sector) | 512 |
| 4Kn Sector Size (Bytes per Sector) | 4096 |
| Performance | |
| Spin Speed(RPM) | 7200RPM |
| Interface Access Speed (Gb/s) | 6.0, 3.0, 1.5 |
| Max. Sustained Transfer Rate OD (MB/s) | 249MB/s |
| Random Read/Write 4K QD16 WCD (IOPS) | 170, 370 |
| Average Latency (ms) | 4.16 |
| Interface Ports | Single |
| Rotational Vibration @ 1500Hz (rad/s) | 12.5 |
| Power Consumption | |
| Idle A (W) Averge | 5W |
| Max Operating Power, Random Write (WCD) 4K/4Q RR50% / RW50% | 8.0 |
| Max Operating Power, Random Read 4K/16Q (W) | 8.4 |
| Power Supply Requirements | +12 V and +5 V |
| Environmental | |
| Temperature, Operating (°C) | 5°C – 60°C |
| Vibration, Nonoperating: 10Hz to 500Hz (Grms) | 2.27 |
| Shock, Operating 2ms (Read/Write) (Gs) | 70/40Gs |
| Shock, Nonoperating, 1ms/2ms (Gs) | 250 |
| Physical | |
| Height (mm/in, max) | 26.11mm/1.028in |
| Width (mm/in, max) | 101.85mm/4.010in |
| Depth (mm/in, max) | 147.0mm/5.787in |
| Weight (g/lb) | 650g/1.433lb |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.8 lb
Warranty: 5 Year Manufacturer
Brand New
The product is brand new.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
