Seagate Part #/MPN: ST800FM0053
DiscTech Item #: SGT-ST800FM0053-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 800GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 750
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Mixed Use

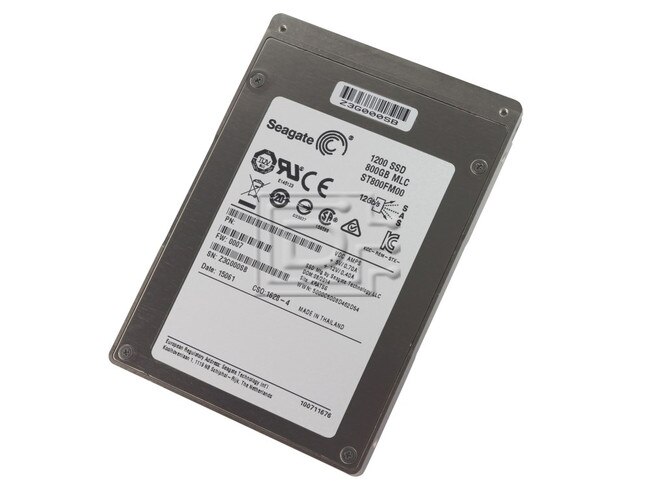

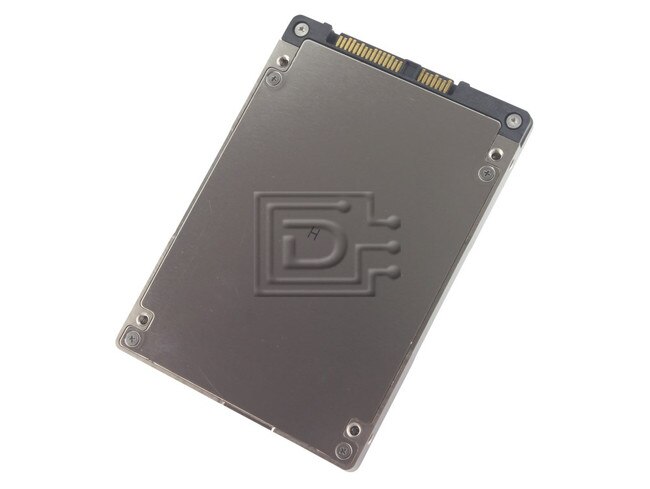

Seagate ST800FM0053 800GB 12Gbps 2.5" Enterprise SED MLC SAS SSD - Brand New
Seagate ST800FM0053 800GB 12.0 Gbps 2.5-inch Self-Encrypting Enterprise Multi-Level Cell Serial-Attached SCSI Solid-State Drive - Brand New
Ultra-Fast, Consistent Performance Plus 12Gb/s SAS
- Helps remove storage bottlenecks and close the gap between processor and data access performance
- Delivers the speed and performance consistency needed for demanding enterprise applications
- Designed to reduce data access wait times under the most complex, write-intensive, mixed workloads
- First Solid State Disk to ship in volume with 12Gb/s SAS while ensuring the highest level of reliability and scalability
- Ensures data availability for critical production systems by using redundant, failover I/O communication paths
- Helps improve ROI by leveraging existing SAS infrastructures
- Custom-designed controller leverages Seagate enterprise expertise and manufacturing excellence
- Helps safeguard data against unexpected power loss and protects data from undetected, unintentional corruption
- Helps ensure data integrity with multiple layers of I/O error detection and correction
Best-Fit Applications
- Demanding, enterprise applications with complex, write-intensive and mixed workloads
- IOPs-hungry enterprise applications, such as high-performance computing, online transaction processing (OLTP) and heavy data analytics
- Enterprise applications that demand high data availability and integrity as well as interface failover redundancy
- External enterprise storage solutions (SAN, NAS, DAS) and servers
| Product Specifications | |
|---|---|
| Product Name | ST800FM0053 |
| Product Type | Solid-State Drive |
| Drive Interface | SAS |
| Drive Width | 2.5" |
| Drive Interface Standard | 12Gb/s SAS |
| Drive Type | Internal |
| Storage Capacity | 800GB |
| NAND Flash Type | MLC |
| Performance | |
| Maximum Burst Transfer Rate | 1200MB/s |
| Peak sequential 128KB read/write data transfer rate (MB/s max) | 750/500 |
| Sustained sequential 128KB read/ write data transfer rate (MB/s) | 750/500 |
| Peak 4KB random read/write command rate (IOPs) | 110,000/30,000 |
| Sustained 4KB random read/write command rate (IOPs) | 110,000/30,000 |
| Sustainable 4KB Random combined IOPS for 5 year Endurance (65%/35% R/W, 70% Duty Cycle) | 60,000 |
| Reliability | |
| TBW (per JEDEC JESD218) | 14,600 TB |
| Power Requirements | |
| Average idle current (W) | 3.30 |
| Delayed start (max) DC (W) | 2.39 |
| Peak operating current (random read) Typical DC (W) | 4.05 |
| Peak operating current (random read) Maximum DC (W) | 4.61 |
| Peak operating current (random write) Typical DC (W) | 5.30 |
| Peak operating current (random write) Maximum DC (W) | 7.35 |
| Peak operating current (sequential read) Typical DC (W) | 4.73 |
| Peak operating current (sequential read) Maximum DC (W) | 5.00 |
| Peak operating current (sequential write) Typical DC (W) | 6.89 |
| Peak operating current (sequential write) Maximum DC (W) | 7.57 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.8 lb
Warranty: 5 Year Manufacturer
Brand New
The product is brand new.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
