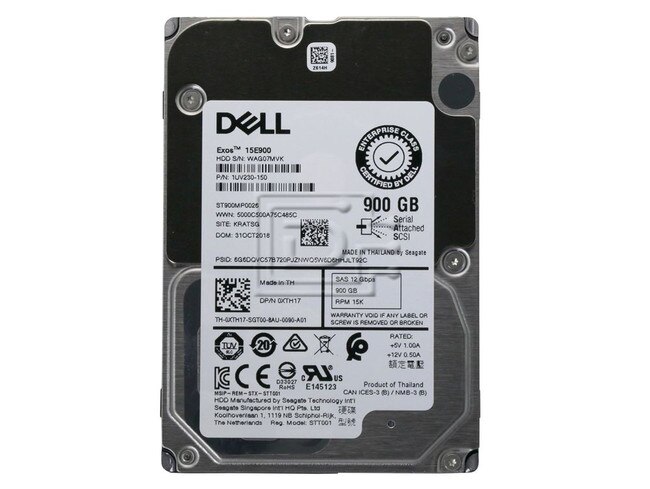

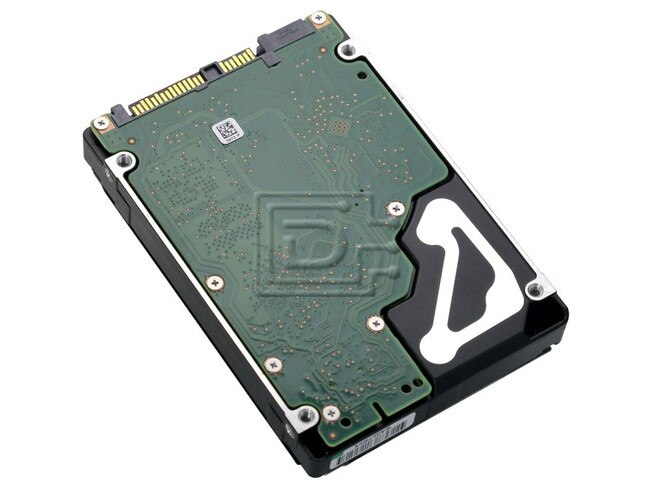

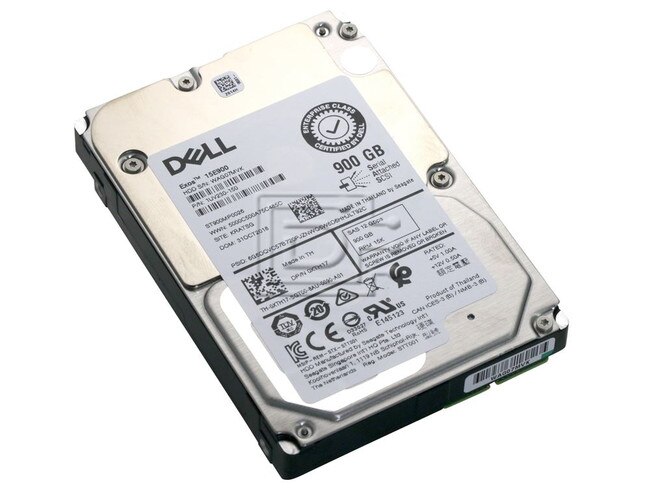

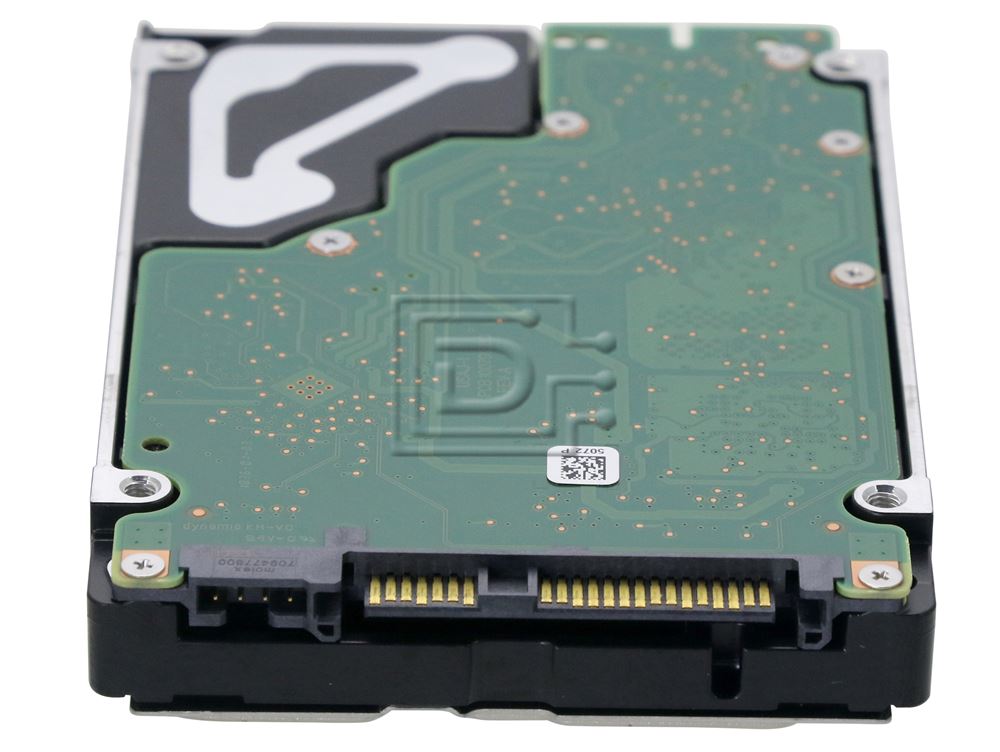

Dell XTH17 / Seagate ST900MP0026 900GB SAS Hard Drive

Seagate Part #/MPN: ST900MP0026

DiscTech Item #: SGT-ST900MP0026-BN-OE-DEL


$272.00
  • Inventory Is Inbound
    Stock Levels

    This item is currently on order with our supplier and is expected to arrive soon.

$272.00

Enterprise Grade

Capacity: 900GB

Speed: 15,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 315/215

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

On-Board Cache: 256MB

Dell XTH17 / Seagate ST900MP0026 900GB 2.5" 12Gbps 15K RPM 512 SAS HDD - Brand New

Dell XTH17 / Seagate ST900MP0026 900GB 2.5" 12Gbps 15K RPM 512 SAS HDD - Brand New

Dell Model Number: XTH17, 0XTH17

Enterprise Performance 15K HDD

Performance You Need, Versatility You Want, Affordability You Demand

  • Accelerates I/O operations and completes more transactions faster — even during peak demand
  • At 900 GB, stores 50% more mission-critical data than any other 15K HDD
  • Optimizes TCO with higher capacity at lower cost than high-performance alternatives
  • Delivers more predictable performance (up to 27% SDR over previous generation ) while helping to protect data from corruption due to unexpected power loss
  • Supports all drive formats including 512 native and a single Fast Format™ model for advanced formats (4Kn and 512e) that simplifies HDD management
  • Industry-leading read caching with TurboBoost™ technology for optimum response times — perfect for OLTP applications
  • Advanced Write Caching feature utilizing enhanced algorithms for the industry’s highest mission-critical storage workload performance efficiencies
  • Uses traditional NAND and advanced algorithms to promote hot data and achieve performance improvement (up to 2.6× improvements over last generation )
  • Enables high density with power efficiency due to lower power and cooling requirements — ideal for space - and power-constrained enterprise data centers
  • Widely accepted, proven sixth-generation technology for reliable access to demanding high performance applications.

Best-Fit Applications

  • High-performance, mission-critical enterprise servers requiring 24×7 availability
  • Highly reliable blade, pedestal, rack and tower servers
  • Transaction-based applications, like OLTP, databases, HPC and big data analytics
  • Power- and space-constrained data centers
  • Compliance and data security initiatives


Compatibility:

This drive is compatible with laptops that accept 2.5" x 15mm SFF SAS drives.

Enterprise Performance 15K HDD
Model NumberST900MP0026
Dell Model NumberXTH17
Capacity900GB
Performance
Average Latency (ms)2
Sustained Transfer Rate (Outer to Inner Diameter) MB/s315 to 215
Max. Instantaneous Transfer Rate (SAS dual port) MB/s2,400
Cache, Multi-segmented (MB)256
InterfaceSAS 12Gb/s
Intelligent NAND Endurance ManagementNo
Features
Fast-Format ModelsYes
TurboBoost™ Enhanced Read CachingYes
Advanced Write CachingYes
Low HalogenYes
PowerChoice™ Idle Power TechnologyYes
Hot Plug SupporYes
Organic Solderability PreservativeYes
Digital Sensors for Humidity Yes
Configuration/Reliability
Disk/Heads3/6
Non-recoverable Read Errors per Bits Read, Max1 per 10E16
Annualised Failure Rate (AFR)0.44%
Power Management
Typical Op (A) +5V/+12V7.6
Average Idling Power (W)5.7
Average Operating Power (W)7.6
Enviromental
Ambient Temperature, Operating (C°)5°C – 55°C
Ambient Temperature, Non-operating (C°)-40°C – 70°C
Temperature Change Rate/Hr, Max (°C)20
Relative Humidity, Non-condensing (max gradient 20%/hour)5% – 95%
Shock, Max. Operating: 11ms (Gs)40
Shock, Max. Non-operating: 2 ms (Gs)400
Vibration, Operating, <400 Hz (Gs)0.5
Vibration, Non-operating: <500Hz (Gs)2.4
Physical
Height(mm/in)15/0.591
Width(mm/in)69.85/2.75
Depth(mm/in)100.45/3.955
Weight(lb/g)230/0.507

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: XTH17 0XTH17

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
