Seagate Part #/MPN: ST91000641SS
DiscTech Item #: SGT-ST91000641SS-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 1TB
Speed: 7,200RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Encryption/SED Supported
Sector Size: 512 / 512e
Sustained Throughput: 115
Average Seek Time: 8.5/9.5
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 64MB

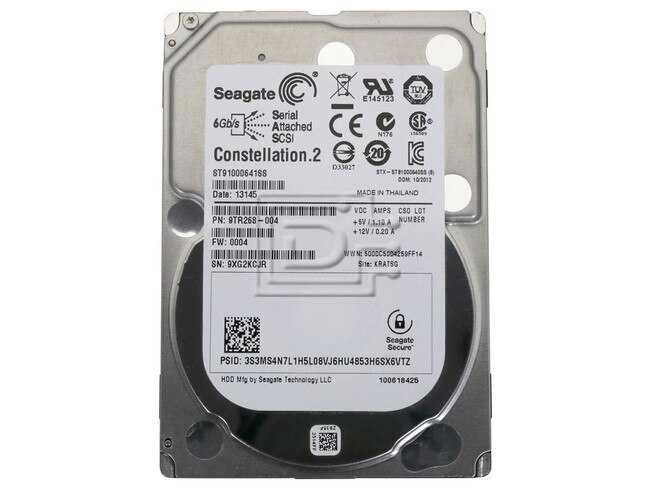

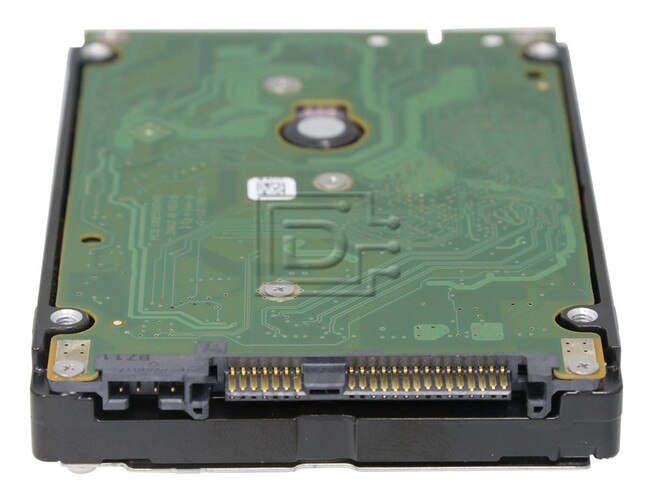

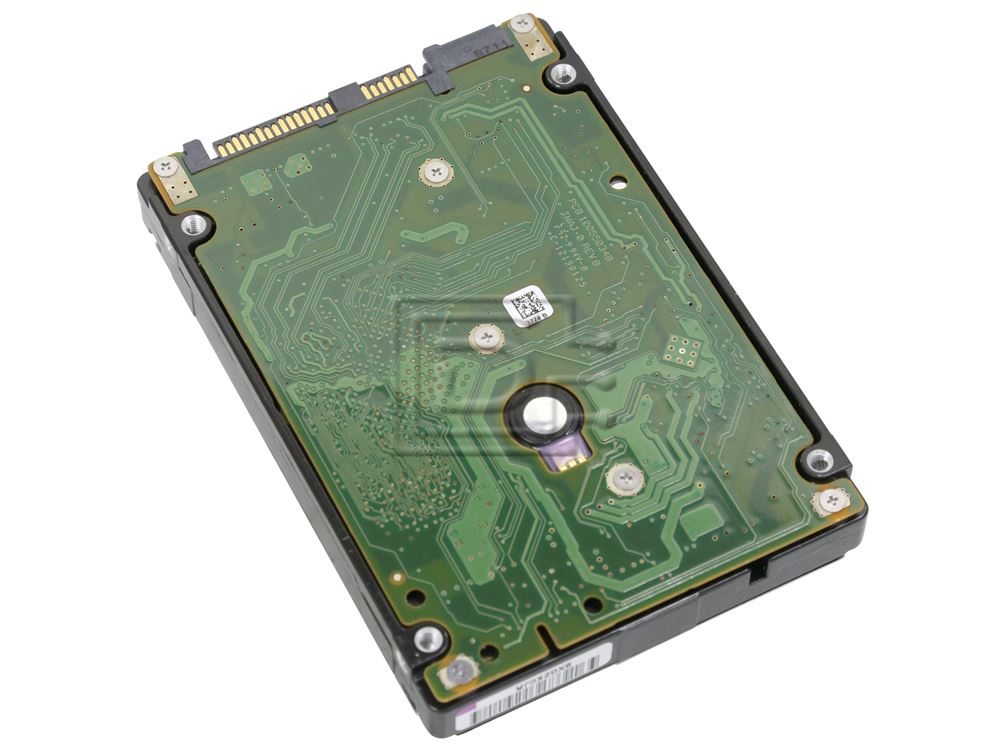

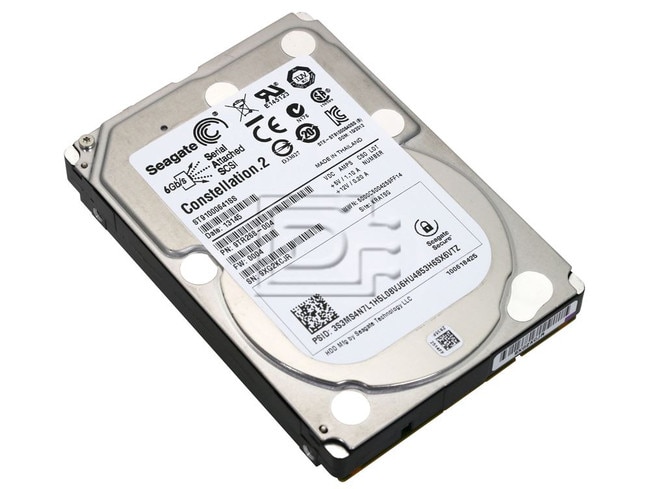

Seagate ST91000641SS 1TB 2.5" SFF 6Gbps 7.2K RPM NL SED Constellation.2 SAS HDD – New Pull
Seagate ST91000641SS 1TB 2.5" 6.0 Gbps 7200 RPM Nearline Self-Encrypting Drive Constellation.2 Serial Attached SCSI Hard Disk Drive – New Pull
Constellation.2™ - Design Small and Deliver BIG—2.5-Inch, Eco-Friendly Nearline Drive
Key Advantages
- Second generation of the first 2.5-inch, mainstream capacity, 15mm z-height, nearline enterprise drive for space-constrained data centers.
- Choose 6Gb/s SAS for data integrity, scalability and fast data access.
- The industry’s highest-reliability 7200-RPM drive, designed for 24×7 operation with MTBF of 1.4M hours and AFR of 0.62%.
- Enterprise-class firmware features and best-in-class rotational vibration tolerance maximize system availability and performance.
- Lowest operating power (under 6.4W) and enhanced PowerChoice™ options for additional power savings during slow or idle periods; Workload Management™ technology helps systems keep drives cool.
- Self-Encrypting Drive (SED) option (AES-256) cuts IT drive retirement costs while securely protecting data where it lives—on the drive.
Compatibility:
This drive is compatible with any server that accepts 2.5"x15mm (SFF Hard Drive) SAS Drives.
| Drive Model | ST91000641SS |
|---|---|
| Capacity | 1TB/1000GB |
| Interface | SAS 6Gbps |
| SED Model | Yes |
| SED (AES-256) FIPS 140-2 Model | No |
| Features | |
| Protection Information | Yes |
| Low Halogen | Yes |
| Reliability/Data Integrity | |
| Mean Time Between Failures (MTBF, hours) | 1.4 million |
| Reliability Rating @ Full 24x7 Operation (AFR) | 0.62% |
| Nonrecoverable Read Errors per Bits Read | 1 sector per 10E15 |
| Power-On Hours per Year | 8760 |
| Bytes per Sector | 512, 520, 528 |
| Performance | |
| Spindle Speed (RPM) | 7200 |
| Cache, Multisegmented (MB) | 64 |
| Interface Access Speed (Gb/s) | 6.0, 3.0, 1.5 |
| Max. Sustained Transfer Rate (MB/s) | 115 |
| Seek Time, Average Read/Write (ms) | 8.5/9.5 |
| Average Latency (ms) | 4.16 |
| Interface Ports | Dual |
| RV Tolerance (rad/s to 1800Hz) | 16 |
| Power Management | |
| Idle Power (W) | 3.85 |
| Typical Operating, Random Read (W) | 6.4 |
| Power Supply Requirements | +12V and +5V |
| PowerChoice™ Technology (W) | As low as 1.87 |
| Environmental | |
| Temperature, Operating (°C) | 5 to 60 |
| Vibration, Operating, <400Hz (Gs) | 0.5 |
| Vibration, Nonoperating, <500Hz (Gs) | 3.0 |
| Shock, Operating, 2ms (Gs) | 70 |
| Shock, Nonoperating, 1ms and 2ms (Gs) | 400 |
| Acoustics, Typical Idle (bels) | 2.2 |
| Acoustics, Typical Seek (bels) | 2.8 |
| Physical | |
| Height (in/mm) | 0.591/15.00 |
| Width (in/mm) | 2.76/70.10 |
| Depth (in/mm) | 3.955/100.45 |
| Weight (lb/g) | 0.441/200 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 9TR268
Weight: 1 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
