Seagate Part #/MPN: ST9146852SS
DiscTech Item #: SGT-ST9146852SS-BN-OE-DEQ
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:559Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 146GB
Speed: 15,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Average Seek Time: 3.2 / 3.5
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 16MB

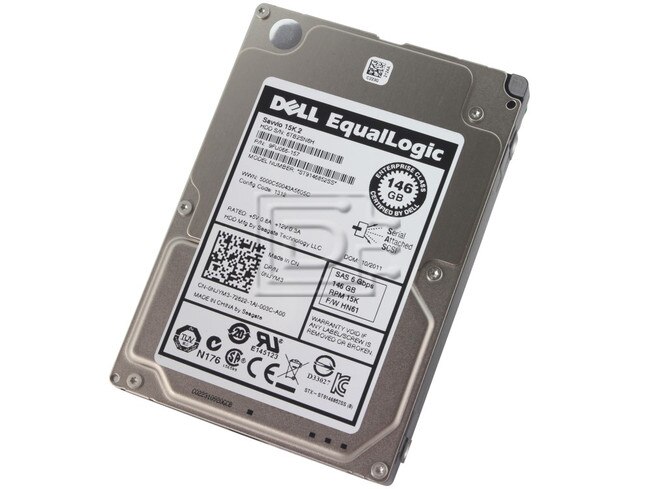

Dell EqualLogic NJYM3 / Seagate Savvio ST9146852SS 15K.2 146GB 15K 6.0Gbps SFF Serial SCSI / SAS Hard Drive - Brand New OEM
The Seagate® Savvio® 15K.2 drive delivers more transactional performance density than any other drive in the world because it is the highest performing, greenest drive available for enterprise storage systems. By being able to use more than twice the drives per the same rack configuration than 3.5-inch 15,000-RPM drives, the Savvio 15K.2 drive delivers more than twice the system performance. This is especially important in high-performance and blade servers demanding optimized RAID performance per U. Building on the Savvio line’s industry-leading 1.6 million hours MTBF, the Savvio 15K.2 drive provides second-generation reliability in enterprise environments.
The Savvio 15K.2 drive also offers the advanced SAS 2.0 interface and operates at 6-Gb/s transfer rates. SAS 2.0 provides the next generation of signal and data integrity features, making SAS ideally suited for use in high-end network storage applications. The SAS 2.0 feature set and 6-Gb/s transfer rate supports larger topologies by connecting more expanders, host bus adapters and RAID controllers within or across more storage arrays; by communicating over longer distances with high signal integrity, and by moving data two times faster, thereby doubling data throughput.
This powerful 2.5-inch drive’s advantages translate into greater overall value to IT organizations and administrators who want to optimize their data center performance efficiency.
DPNs: NJYM3 / 0NJYM3 / 9FU066-157
Compatibility:
This drive is compatible with Equallogic servers that accept 2.5" SAS drives.
| Specifications | |
|---|---|
| Model number | ST9146852SS |
| Model Name | Savvio® 15K.2 |
| Dell Part Number | NJYM3 / 0NJYM3 |
| Formatted Capacity | 146 Gbytes |
| Rotational Speed | 15,000 rpm |
| Default Buffer (cache) Size | 16 Mbytes |
| Performance | |
| External (I/O) Transfer Rate (max) | SAS 2.0 6.0Gb/s |
| Average Seek Time, Read | 3.2 msec typical |
| Average Seek Time, Write | 3.5 msec typical |
| Average Latency | 2 msec |
| Physical | |
| Form Factor | SFF |
| Height | 14.5 mm |
| Width | 70.1 mm |
| Length | 100.5 mm |
| Weight | 201 grams |
| Electrical | |
| Startup Current (12VDC +/- 5%) | 1.12 amps |
| Startup Current (5VDC +/- 5%) | .45 amps |
| Reliability | |
| MTBF (Hours) | 1,600,000 hours |
| Supports S.M.A.R.T. | Yes |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: NJYM3 0NJYM3 9FU066-157
