Seagate Part #/MPN: ST9500622NS
DiscTech Item #: SGT-ST9500622NS-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:3Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 500GB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 2.5inx15mm SFF Server Drive
Encryption/SED Supported
Sector Size: 512 / 512e
Sustained Throughput: 115
Average Seek Time: 8.5/9.5
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 64MB

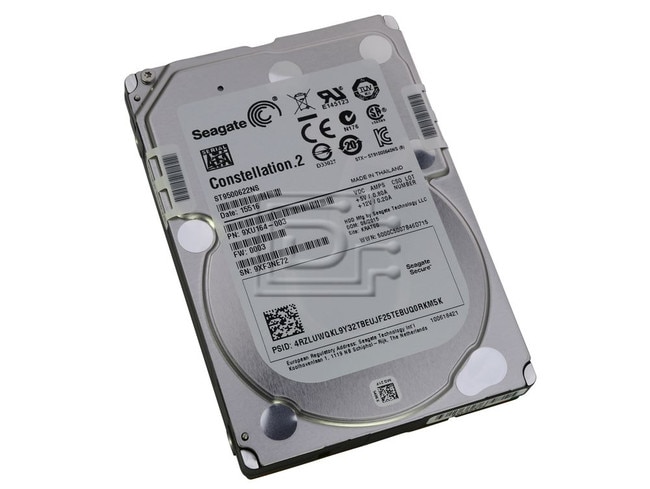

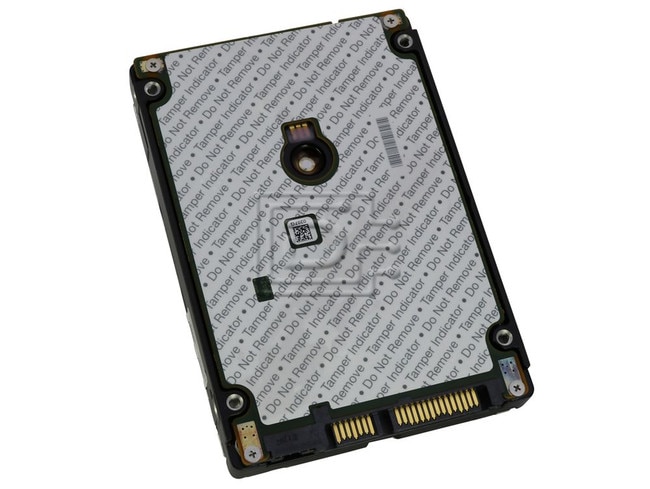

Seagate ST9500622NS 500GB 2.5in 6Gbps 7.2K RPM NL SED FIPS Constellation.2 SATA HDD – Brand New
Seagate ST9500622NS 500GB 2.5" 6.0 Gbps 7200 RPM Nearline Self-Encrypting Drive Federal Information Processing Standards Constellation.2 Serial Advanced Technology Attachment Hard Disk Drive – Brand New
Constellation.2™ - Design Small and Deliver BIG—2.5-Inch, Eco-Friendly Nearline Drive
Key Advantages
- Second generation of the first 2.5-inch, mainstream capacity, 15mm z-height, nearline enterprise drive for space-constrained data centers.
- Choose SATA 6Gb/s for fast, economical Tier 2/nearline performance.
- The industry’s highest-reliability 7200-RPM drive, designed for 24×7 operation with MTBF of 1.4M hours and AFR of 0.62%.
- Enterprise-class firmware features and best-in-class rotational vibration tolerance maximize system availability and performance.
- Lowest operating power (under 6.4W) and enhanced PowerChoice™ options for additional power savings during slow or idle periods; Workload Management™ technology helps systems keep drives cool.
- Self-Encrypting Drive (SED) option (AES-256) cuts IT drive retirement costs while securely protecting data where it lives—on the drive.
- FIPS 140-2 Validated™ drives protect Sensitive but Unclassified and Protected class data.
Compatibility:
This drive is compatible with any server that accepts 2.5"x15mm (SFF Hard Drive) SATA Drives.
| Drive Model | ST9500622NS |
|---|---|
| Capacity | 500GB |
| Interface | SATA 6Gbps |
| SED Model | Yes |
| SED (AES-256) FIPS 140-2 Model | Yes |
| Features | |
| Protection Information | --- |
| Low Halogen | Yes |
| Reliability/Data Integrity | |
| Mean Time Between Failures (MTBF, hours) | 1.4 million |
| Reliability Rating @ Full 24x7 Operation (AFR) | 0.62% |
| Nonrecoverable Read Errors per Bits Read | 1 sector per 10E15 |
| Power-On Hours per Year | 8760 |
| Bytes per Sector | 512 |
| Performance | |
| Spindle Speed (RPM) | 7200 |
| Cache, Multisegmented (MB) | 64 |
| Interface Access Speed (Gb/s) | 6.0, 3.0, 1.5 |
| Max. Sustained Transfer Rate (MB/s) | 115 |
| Seek Time, Average Read/Write (ms) | 8.5/9.5 |
| Average Latency (ms) | 4.16 |
| Interface Ports | Single |
| RV Tolerance (rad/s to 1800Hz) | 16 |
| Power Management | |
| Idle Power (W) | 2.67 |
| Typical Operating, Random Read (W) | 4.51 |
| Power Supply Requirements | +12V and +5V |
| PowerChoice™ Technology (W) | As low as 1.19 |
| Environmental | |
| Temperature, Operating (°C) | 5 to 60 |
| Vibration, Operating, <400Hz (Gs) | 0.5 |
| Vibration, Nonoperating, <500Hz (Gs) | 3.0 |
| Shock, Operating, 2ms (Gs) | 70 |
| Shock, Nonoperating, 1ms and 2ms (Gs) | 400 |
| Acoustics, Typical Idle (bels) | 2.2 |
| Acoustics, Typical Seek (bels) | 2.8 |
| Physical | |
| Height (in/mm) | 0.591/15.00 |
| Width (in/mm) | 2.76/70.10 |
| Depth (in/mm) | 3.955/100.45 |
| Weight (lb/g) | 0.403/183 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.5 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
