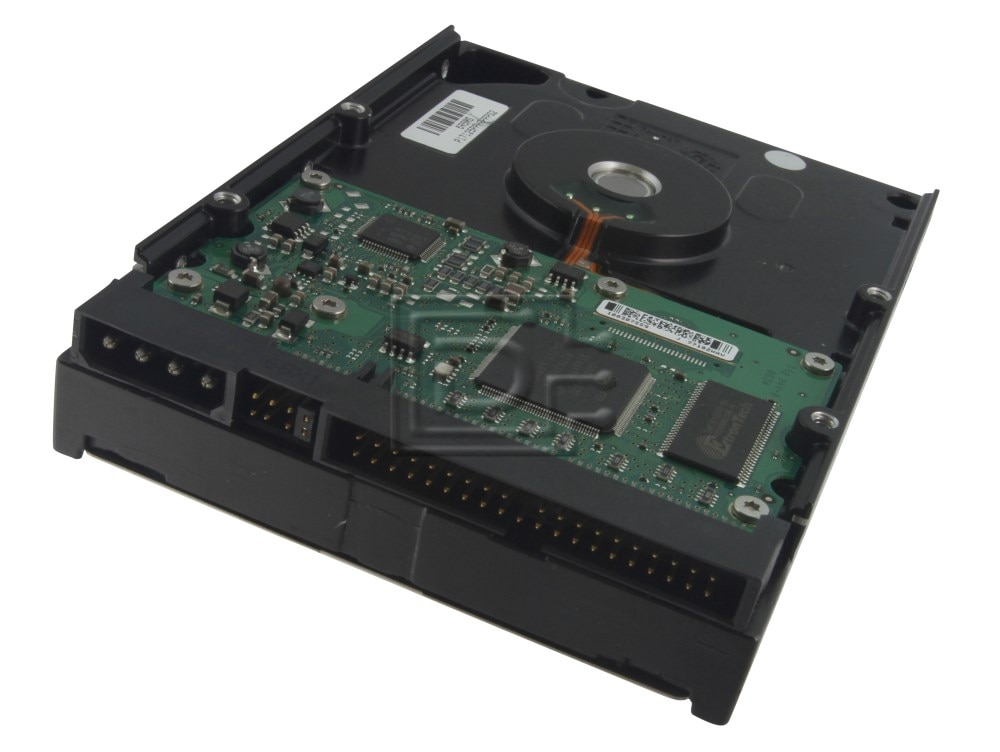

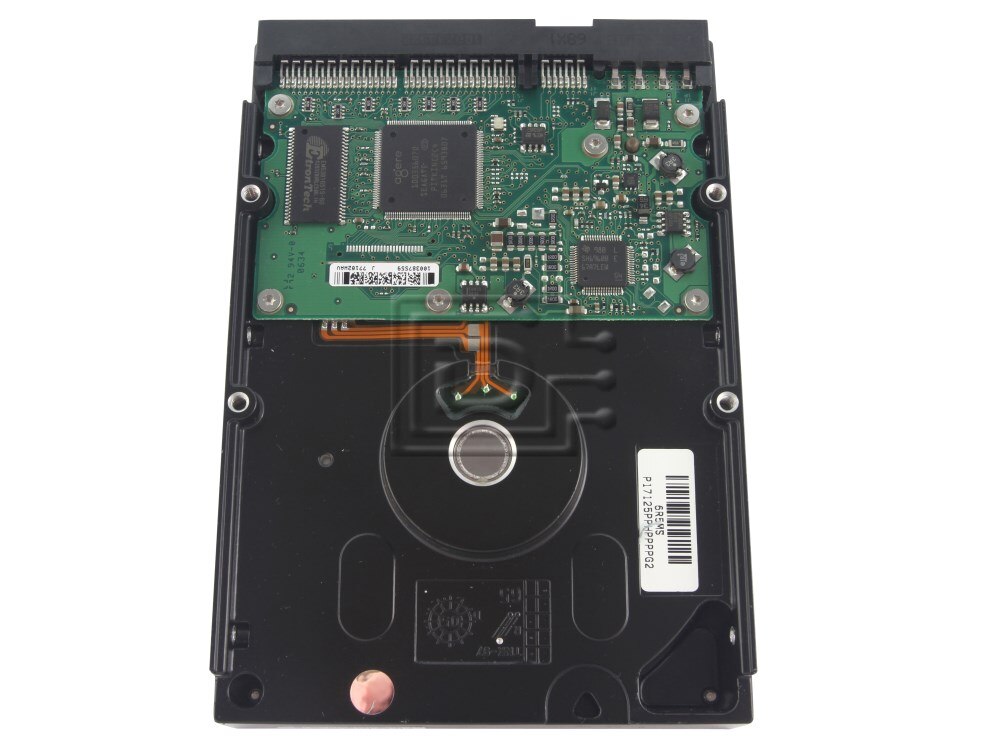

Seagate STM3160812A ATA / IDE Hard Drive

(0) No Reviews Yet

Seagate Part #/MPN: STM3160812A

DiscTech Item #: SGT-STM3160812A-RF-OE

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Capacity: 160GB

Speed: 7,200RPM

Interface Types: IDE ATA 3.5in

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 83.0

Average Seek Time: 11 /12

Electrical Interface: EIDE Ultra ATA100 100MBps

On-Board Cache: 2MB

Seagate STM3160812A DiamondMax 20 160GB 7.2K IDE ATA/100 Hard Drive  - Refurbished


  • Protection against handling damage and data loss.
  • Best combination of performance, acoustics and robustness
  • Best-in-class non-operating shock for excellent reliability
  • Idle acoustics of 2.5 bels- the industry's best
Model number STM3160812A
Model Name DiamondMax 20
Form Factor(width) 3.5-inch
Form Factor(height) 1-inch
Height 26.11 mm
Width 101.6 mm
Length 147 mm
Weight 1.28 lbs (580g)
Formatted Capacity 160 Gbytes
External (I/O) Transfer Rate (max) 100 MBytes/sec
Spindle Speed 7200 rpm
Average Seek Time, Read / Write11/12 msec typical
Default Buffer (cache) Size 2 Mbytes

Click here to view the manufacturer's item description/brochure

Weight: 1.8 lb

Warranty: 1 Year DiscTech


Condition Levels Explained

The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
