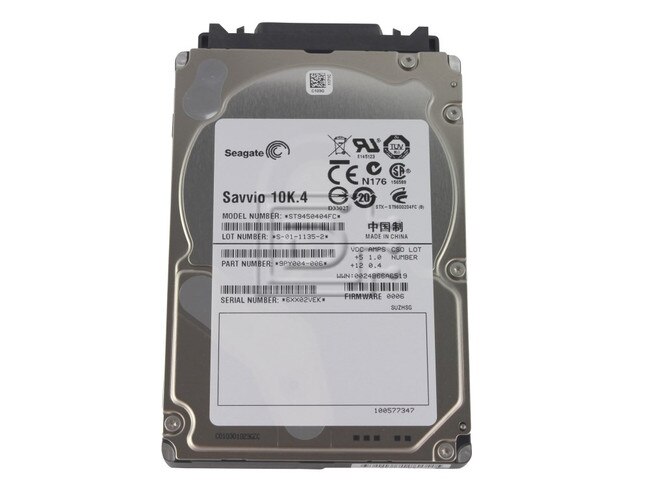

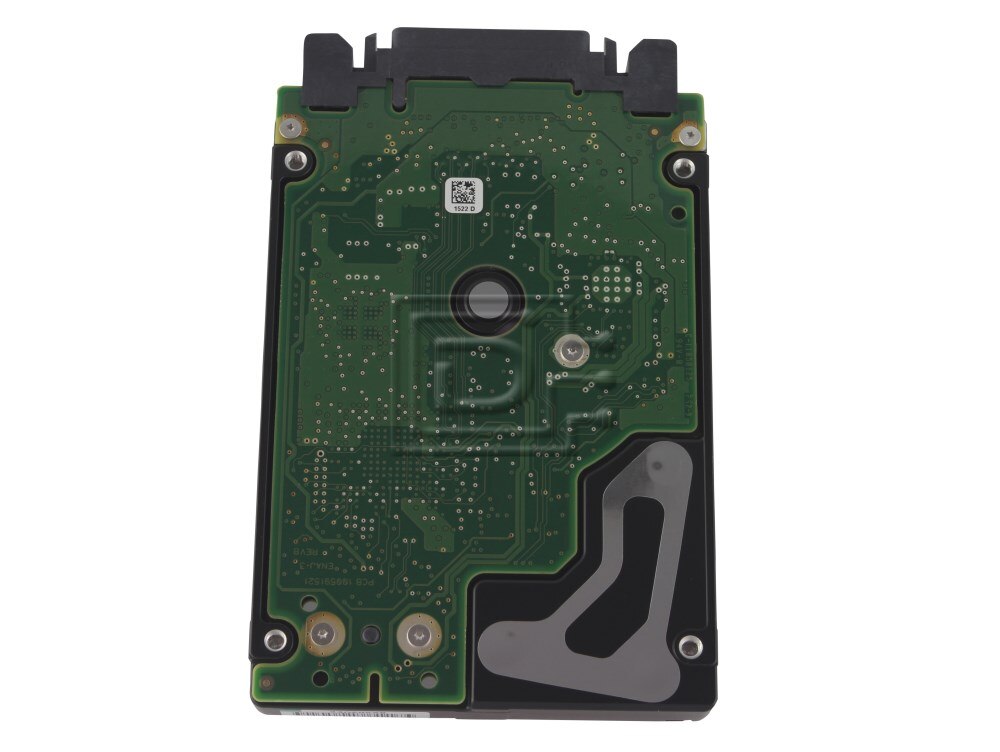

Seagate Savvio 10K.4 ST9450404FC Fibre/Fiber Channel Hard Drive

Seagate Part #/MPN: ST9450404FC

DiscTech Item #: SGT-ST9450404FC-BN-5Y


$79.00
$79.00

Enterprise Grade

Capacity: 450GB

Speed: 10,000RPM

Interface Types: Fibre Channel - Internal - Arbitrated Loop ASA II

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 72 - 135

Average Seek Time: 4.08 / 4.54

Electrical Interface: FC-AL - 4Gbps

On-Board Cache: 16MB

Seagate Savvio 10K.4 ST9450404FC 450GB 10K 4Gbps Fibre/ Fiber Channel Hard Drive - Brand New

Ideal for NAS, SAN and DAS external enterprise storage solutions, this fourth-generation Savvio 10K.4 drive provides the highest capacity and best reliability available in a small form factor, 10K-RPM enterprise hard drive. This drive enables 3.5-inch to 2.5-inch form factor transition and widespread market adoption of 2.5-inch-based external storage solutions for enterprise OEMs, system designers and end-user organizations.

Key Advantages

  • The world’s highest-capacity SFF drive (up to 600GB)
  • The industry’s first 2M-hour MTBF drive to provide 0.44 percent AFR—20 percent higher reliability than any other drive available
  • Second-generation 6Gb/s SAS with dual-port communication and first SFF hard drive with 4Gb/s FC support
  • SFF and low power consumption reduce end-user cooling and energy costs.
  • PowerChoice™ feature for T10-compliant power management, empowers IT organizations to tailor systems for performance and power consumption
  • Protection Information (PI) option detects corruption of data in flight between the host system and the drive.
  • Head ramp load/unload feature for improved device handling reliability
  • TCG-compliant, Self-Encrypting Drive (SED) security option (SAS models only) eliminates the need to overwrite or physically destroy drives, enables safe return of drives for warranty or expired lease purposes, and allows organizations to securely repurpose or sell hard drives.2
  • This drive enables OEMs and system designers to design external storage solutions for organizations with green IT strategies, data-at-rest concerns, and power- or space-constrained IT environments

Compatibility:

This drive is compatible with any server that accepts small form factor (SFF) SAS hard drives

Specifications
Model number ST9450404FC
Model Name Savvio 10K.4
Formatted Capacity 450 Gbytes
Rotational Speed 10,000 rpm
Default Buffer (cache) Size 16 Mbytes
Performance
External (I/O) Transfer Rate (max) 400 MBytes/sec
Sustained Transfer Rate72 - 135 MBytes/sec
Average Seek Time, Read 4.08 msec typical
Average Seek Time, Write 4.2 msec typical
Track-to-Track Seek, Read 0.31 msec typical
Track-to-Track Seek, Write 0.31 msec typical
Average Latency 3 msec
Physical
Form Factor(width) 2.5-inch
Form Factor(height) 2.5-inch
Height 0.6 in
Width 2.8 in
Length 3.9 in
Weight 7.3 oz
Electrical
Power (Typical).35 amps
Environmental
Max Operating Shock (2-msec) 60 Gs
Max Nonoperating Shock (2-msec) 300 Gs
Operating Vibration (max) .5 Gs
Nonoperating Vibration (max) 2.4 Gs
Operating Temperature (max) 55 deg C
Operating Temperature (min) 5 deg C
Nonoperating Temperature (max) 70 deg C
Nonoperating Temperature (min) -40 deg C
Acoustical
Nonrecoverable Read Errors 1 per 10^16 bits read
Supports S.M.A.R.T.Yes

Click here to view the manufacturer's item description/brochure

Weight: 1 lb

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
