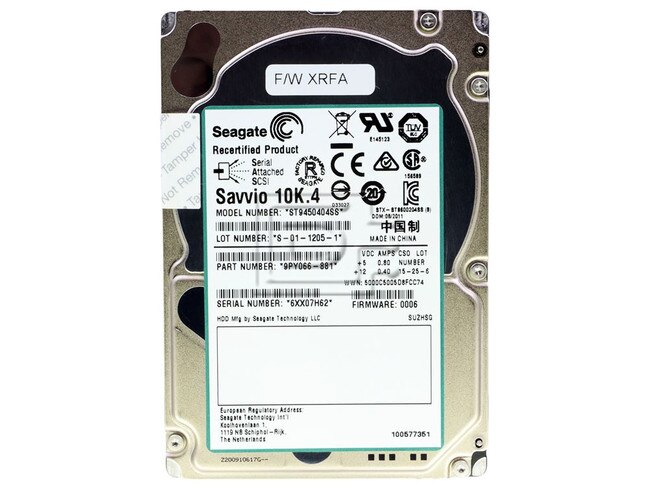

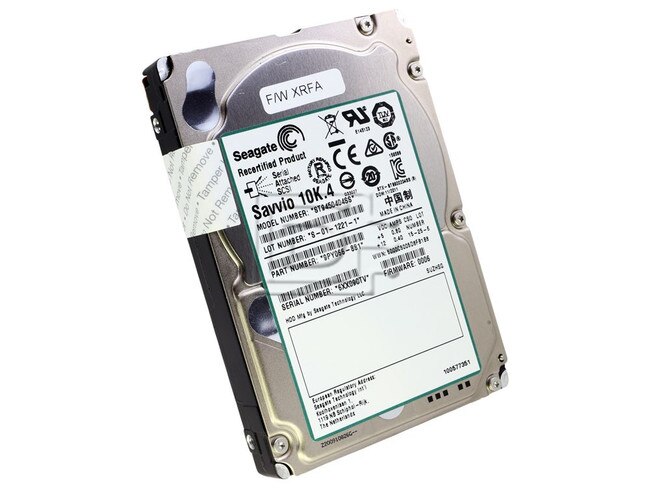

Seagate Savvio 10K.4 ST9450404SS SAS Hard Drive
$249.00
| Capacity: | 450GB |
| Speed: | 10K RPM |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| Electrical Interface: | SAS-2 6Gbps |
| RAM: | 16MB |
Description
Seagate Savvio 10K.4 ST9450404SS 450GB 10K 6Gbps SFF Serial SCSI / SAS Hard Drive - Factory Refurbished
Ideal for NAS, SAN and DAS external enterprise storage solutions, this fourth-generation Savvio 10K.4 drive provides the highest capacity and best reliability available in a small form factor, 10K-RPM enterprise hard drive. This drive enables 3.5-inch to 2.5-inch form factor transition and widespread market adoption of 2.5-inch-based external storage solutions for enterprise OEMs, system designers and end-user organizations.
Key Advantages
- The world’s highest-capacity SFF drive (up to 600GB)
- The industry’s first 2M-hour MTBF drive to provide 0.44 percent AFR—20 percent higher reliability than any other drive available
- Second-generation 6Gb/s SAS with dual-port communication and first SFF hard drive with 4Gb/s FC support
- SFF and low power consumption reduce end-user cooling and energy costs.
- PowerChoice™ feature for T10-compliant power management, empowers IT organizations to tailor systems for performance and power consumption
- Protection Information (PI) option detects corruption of data in flight between the host system and the drive.
- Head ramp load/unload feature for improved device handling reliability
- TCG-compliant, Self-Encrypting Drive (SED) security option (SAS models only) eliminates the need to overwrite or physically destroy drives, enables safe return of drives for warranty or expired lease purposes, and allows organizations to securely repurpose or sell hard drives.2
- This drive enables OEMs and system designers to design external storage solutions for organizations with green IT strategies, data-at-rest concerns, and power- or space-constrained IT environments
Compatibility:
This drive is compatible with any server that accepts small form factor (SFF) SAS hard drives
Specifications
| Specifications | |
|---|---|
| Model number | ST9450404SS |
| Model Name | Savvio 10K.4 |
| Formatted Capacity | 450 Gbytes |
| Rotational Speed | 10,000 rpm |
| Default Buffer (cache) Size | 16 Mbytes |
| Performance | |
| External (I/O) Transfer Rate (max) | 600 MBytes/sec |
| Sustained Transfer Rate | 72 - 135 MBytes/sec |
| Average Seek Time, Read | 3.6 msec typical |
| Average Seek Time, Write | 4.2 msec typical |
| Track-to-Track Seek, Read | 0.2 msec typical |
| Track-to-Track Seek, Write | 0.3 msec typical |
| Average Latency | 3 msec |
| Physical | |
| Form Factor(width) | 2.5-inch |
| Form Factor(height) | .583-inch |
| Height | 14.8 mm |
| Width | 70 mm |
| Length | 100.5mm |
| Weight | 0..227 kg |
| Electrical | |
| Power (Typical) | .35 amps |
| Environmental | |
| Max Operating Shock (2-msec) | 60 Gs |
| Max Nonoperating Shock (2-msec) | 300 Gs |
| Operating Vibration (max) | .5 Gs |
| Nonoperating Vibration (max) | 2.4 Gs |
| Operating Temperature (max) | 55 deg C |
| Operating Temperature (min) | 5 deg C |
| Nonoperating Temperature (max) | 70 deg C |
| Nonoperating Temperature (min) | -40 deg C |
| Acoustical | |
| Nonrecoverable Read Errors | 1 per 10^16 bits read |
| Supports S.M.A.R.T. | Yes |
Click here to view the manufacturer's item description/brochure
Weight: 1 lb
Warranty: 1 Year DiscTech
Condition
Factory Refurbished
Warranty
1 Year DiscTech Warranty
