Seagate Part #/MPN: XA1920ME10063
DiscTech Item #: SGT-XA1920ME10063-BN-5Y
- Brand New
- Warranty:5 Year Manufacturer
- In Stock:1Need more?
Enterprise Grade
Capacity: 1.92TB
Speed: Solid State
Interface Types: SATA
Form Factor: 2.5" x 7mm Fits All laptops
Sector Size: 512 / 512e
Sustained Throughput: 560/535
Electrical Interface: SATA 600 - 6Gbps
SSD Type: TLC
SSD Endurance DWPD: Enterprise Mixed Use / MU

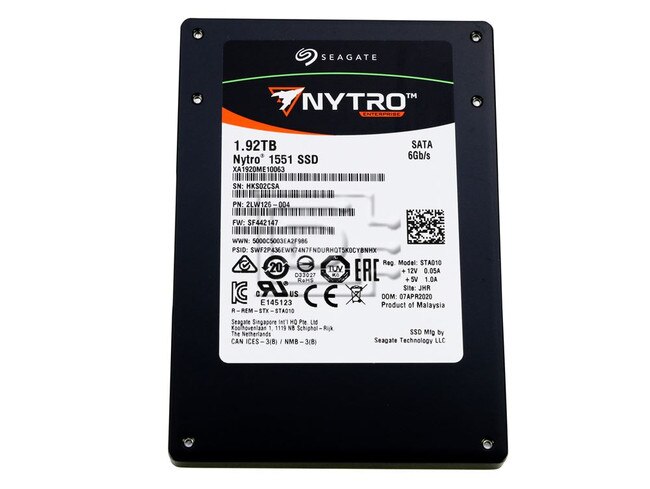

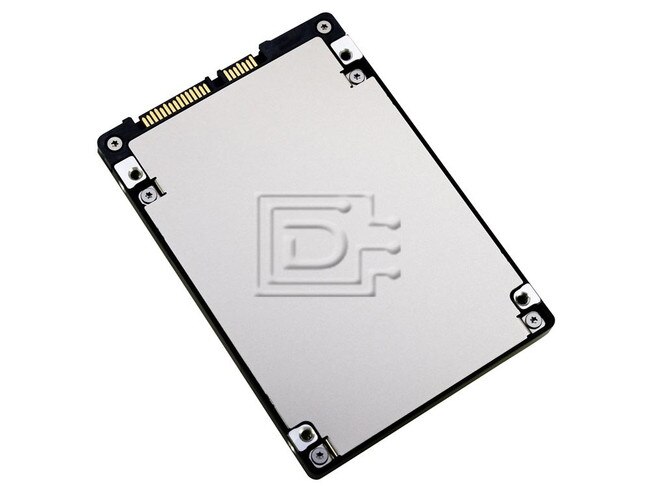

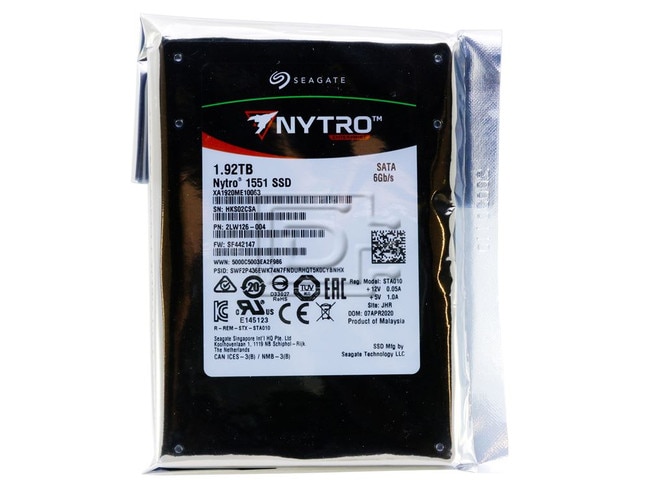

Seagate Nytro 1551 XA1920ME10063 1.92TB 2.5-Inch 6Gbps 3D TLC Mainstream SATA Solid State Drive - Brand New
Seagate Nytro 1551 XA1920ME10063 1.92TB / 1920GB 2.5" 6.0 Gb/s 3D TLC / Triple Level Cell MU / Mixed Use / Mainstream 3-DWPD / Drive Writes Per Day SATA / Serial ATA SSD / Solid State Drive - Brand New
Nytro Enterprise
Nytro 1000 SATA SSD Series
Lightspeed. Solid. Impressive.
The Seagate Nytro 1000 SATA SSD Series is a cost-effective, enterprise-grade solution for data centre and cloud server applications. It is designed to deliver high, sustained, and consistent performance for improved QoS and enhanced user experience.
SSDs with the SATA storage interface meet the high performance and reliability requirements without disrupting legacy storage infrastructures or involving additional investments in software and hardware.
Optimised for Performance, Integration, and Cost
- Boost the performance of applications that require faster random access performance
- Maintain fast, consistent performance for read-intensive and mixed workloads
- Take advantage of easy deployment and more processing power without investment in new hardware
- Require less energy to run 24×7, and save on cooling and overall energy cost
Wide Range of Storage and Security Options
- Receive endurance, security, and capacity options for enterprise applications
- Choose the capacity and endurance to fit a range of application and workload needs
- Achieve peace of mind through Seagate Secure data protection
Enterprise-Grade Feature Set
- Maintain high data integrity in the event of unexpected power loss
- Leverage Seagate’s reliability and system compatibility test infrastructure
- Attain end-to-end data protection with Seagate SHIELD and Seagate RAISE technologies
Key Features and Benefits
- SATA 6 Gb/s interface for easy depolyment
- Seagate DuraWrite lossless data reduction technology
- Tunable capacity for performance-optimised of capacity-optimised SSD
- Seagate Secure options
- Power loss data protection circuit
- Enterprise-class reliability with 2M hour MTBF
- Public and private cloud
- Web servers
- Tiered storage analytics
- Database (OLTP)
Best-Fit Applications
Compatibility:
Designed to deliver high, sustained, and consistent performance for improved QoS and enhanced user experience.
| Nytro 1551 SATA SSD - Mainstream Endurance | |
|---|---|
| Standard Model Number | XA1920ME10063 |
| Capacity | 1.92 TB / 1920 GB |
| Interface | SATA 6 Gb/s |
| NAND Flash Type | 3D TLC |
| Form Factor | 2.5 in × 7 mm |
| Performance | |
| Sequential Read (MB/s) Sustained, 128 KB | 560 |
| Sequential Write (MB/s) Sustained, 128 KB | 535 |
| Random Read (IOPS) Sustained, 4 KB QD32 | 90,000 |
| Random Write (IOPS) Sustained, 4 KB QD32 | 50,000 |
| Average Read Latency (μs), 4 KB QD1 | 160 |
| Average Write Latency (μs), 4 KB QD1 | 35 |
| Endurance/Reliability | |
| Lifetime Endurance (Drive Writes per Day) | 3 |
| Total Bytes Written (TB) | 10,500 |
| Non-recoverable Read Errors per Bits Read | 1 per 1017 |
| Mean Time Between Failures (MTBF, hours) | 2 M |
| Power Management | |
| +5/+12 V Active Max Average Power (W) | 3.4 |
| Average Idling Power (W) | 1.2 |
| Environmental | |
| Temperature, Operating (°C) | 0 to 70 |
| Temperature, Non-operating (°C) | –40 to 85 |
| Temperature Change Rate/Hr, Max (°C) | 20 |
| Shock, 0.5 ms (Gs) | 1,000 |
| Physical | |
| Height (in/mm, max) | 0.276/7.00 |
| Width (in/mm, max) | 2.76/70.1 |
| Depth (in/mm, max) | 3.947/100.25 |
| Weight (lb/g) | 0.169/77 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.5 lb
Warranty: 5 Year Manufacturer
Brand New
5 Year Manufacturer Warranty
