Seagate Part #/MPN: XS15360SE70103
DiscTech Item #: SGT-XS15360SE70103-NP-2Y
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:2 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 15.36TB
Speed: Solid State
Interface Types: SAS
Form Factor: 2.5" SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 2100/1690
Average Seek Time: 120μs
Electrical Interface: SAS-3 12Gbps
SSD Type: TLC
SSD Endurance DWPD: Enterprise Read Intensive / RI

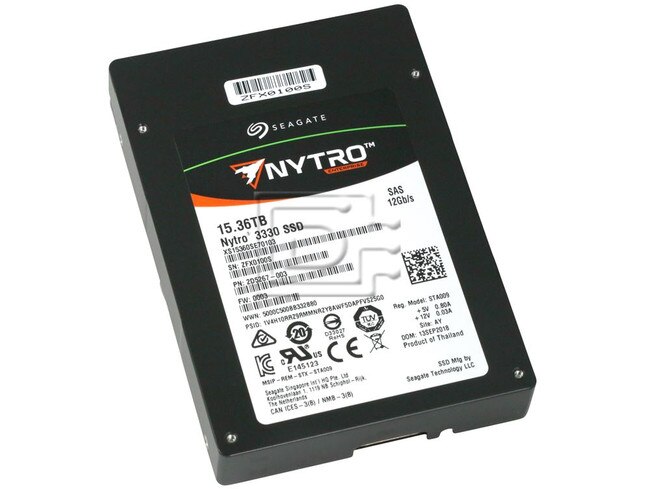

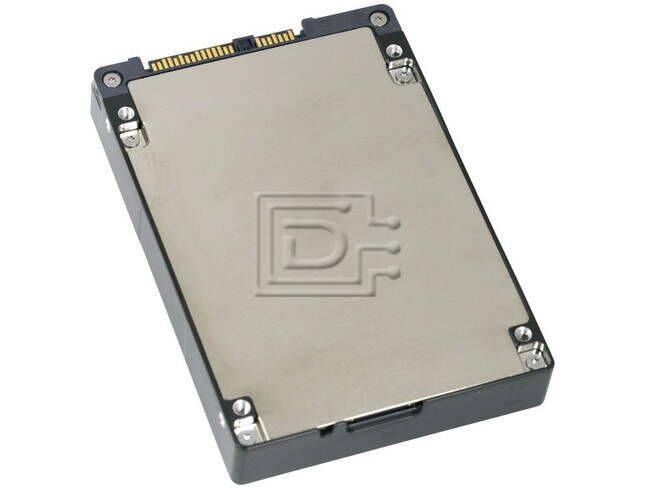

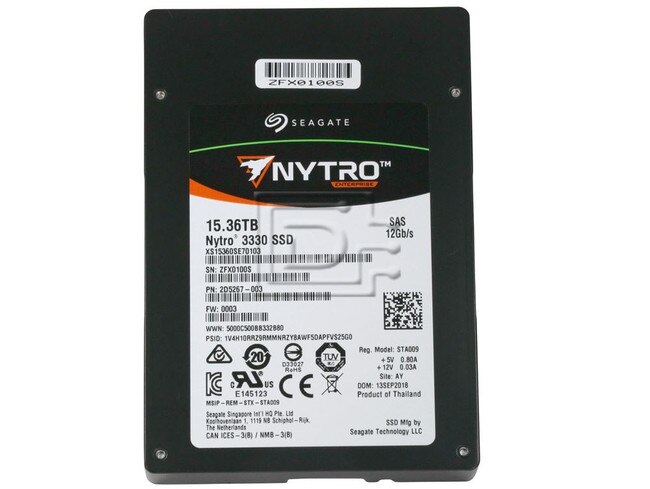

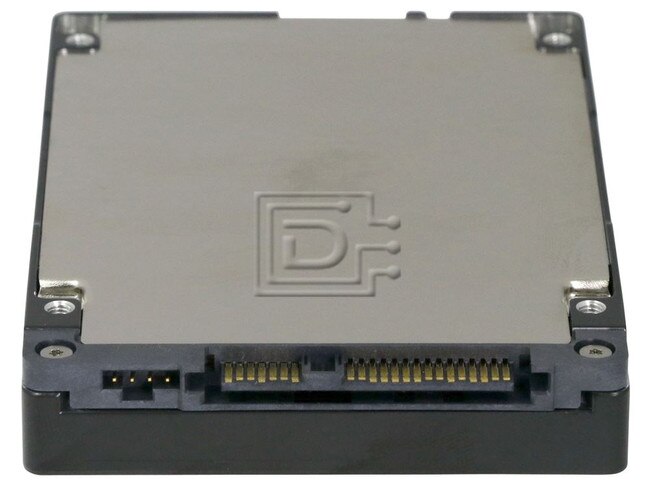

Seagate Nytro 3330 XS15360SE70103 15.36TB 2.5in 12Gbps 3D eTLC SAS SSD - New Pull
Seagate Nytro 3330 XS15360SE70103 15.36TB / 15360GB 2.5" 12.0 Gb/s Scaled Endurance / Read Intensive 1-DWPD / Drive Writes Per Day 3D Enterprise Triple Level Cell / eTLC Serial Attached SCSI / SAS Solid State Drive / SSD - New Pull
Nytro Enterprise
Lightspeed, Solid, Impresive
Nytro 3000 SAS SSD
The Seagate® Nytro® 3000 SAS SSD family includes the next generation of high-capacity, high-performance SAS SSDs designed with multiple endurance offerings optimized for demanding enterprise applications and improved TCO
Industry-Leading Performance up to 2100MB/s
The Nytro 3000 SSD family delivers ultra-fast, consistent and easily scalable performance that saturates dual 12Gb/s SAS bandwidth, providing an effective 24Gb/s wide-port interface along with legacy sign and dual-port dynamic configurations. By removing the storage bottleneck, it significantly improves overall system and application responsiveness and provides consistent low-latency data access, reliably accelerating enterprise and cloud storage systems.
High-Capacity Solution With Multiple Endurance Offerings
Enterprise applications have different storage workload requirements for performance, endurance and cost. The optimal storage solution for databases or virtualization with a typically mixed read/write workload, for example, requires the highest random read/write IOPS, ultra-low latency and high endurance. Content streaming applications with highly intensive read workloads, however, demand high sequential read throughput and high storage density at the lowest cost per gigabyte. The Nytro 3000 SSD family offers an industry-leading range of capacities up to 15TB in a 2.5-inch form factor, to increase enterprise storage density in data centers. It also enables lower TCO by offering four endurance categories to match cost and performance requirements of all enterprise workloads.
Enhanced Enterprise Reliability, Data Protection and Security
The Nytro 3000 SSD family leverages Seagate’s decades of enterprise SAS expertise to deliver the highest levels of reliability, data integrity and data security for mission- critical enterprise applications. The Nytro 3000 SSD family helps deliver exceptional data protection and reliability by integrating full internal and external data path protection (T10 DIF), Seagate’s advanced ECC algorithms, media lifecycle management, and other techniques for extending flash memory life. With advanced power-loss data protection, the Nytro 3000 SSD maintains high data integrity to help prevent loss of user data in the event of unexpected power interruptions. The Nytro 3000 SSD family implements security features to prevent unauthorized access to a drive and safeguards stored data with three levels of security, including Secure Downloads & Diagnostics, TCG-compliant Self-Encrypting Drive and FIPS drive.
Key Features and Benefits
- Dual-port and wide-port 12Gb/s SAS interface
- Industry-leading storage density range up to 15TB
- Ultra-fast performance of up to 2100MB/s
- Endurance options for a wide range of enterprise workloads
Best-Fit Applications
- Server virtualization
- OLTP databases
- Software-defined storage
- All flash arrays
- Caching and tiering
Compatibility:
This drive is compatible with laptops that accept 2.5" x 15mm SFF SAS drives.
Nytro 3330—Scaled Endurance | |
---|---|
Standard Model Number | XS15360SE70103 |
Interface | Dual 12Gb/s SAS |
Capacity | 15.36TB / 15360GB |
NAND Flash Type | 3D eTLC |
Form Factor | 2.5 in x 15mm |
Performance at Max Power Limit | |
Sequential Read (MB/s) Sustained, 64KB | 2100 |
Sequential Write (MB/s) Sustained, 64KB | 1690 |
Random Read (IOPS) Sustained, 4KB | 260,000 |
Random Write (IOPS) Sustained, 4KB | 60,000 |
Random 30% Write (IOPS) Sustained, 4KB | 150,000 |
Performance at Max Power Limit | |
Sequential Read (MB/s) Sustained, 64KB | 2100 |
Sequential Write (MB/s) Sustained, 64KB | 990 |
Random Read (IOPS) Sustained, 4KB | 260,000 |
Random Write (IOPS) Sustained, 4KB | 45,000 |
Random 30% Write (IOPS) Sustained, 4KB | 105,000 |
Average Latency (μs) | 120 |
Endurance/Reliability | |
Lifetime Endurance (Drive Writes per Day) | 1 |
Nonrecoverable Read Errors per Bits Read | 1 per 10E18 |
Annualized Failure Rate (AFR) | 0.35% |
Power Management | |
+5/+12V Max Start Current (A) | 0.44/0.47 |
Configurable Power Limit Settings (W) | 7 to 14 |
Average Idle Power (W) | 3 |
Physical | |
Height (in/mm, max) | 0.591/15.00 |
Width (in/mm, max) | 2.760/70.10 |
Depth (in/mm, max) | 3.955/100.45 |
Weight (lb/g) | 0.364/165 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1 lb
Warranty: 2 Year Manufacturer
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
2 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
