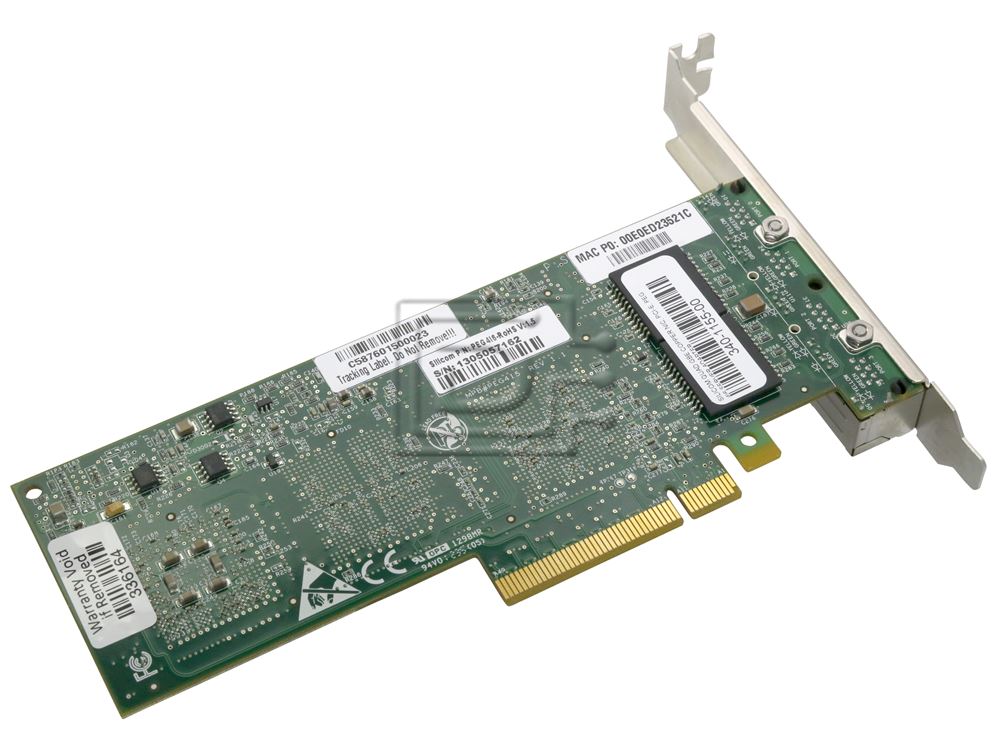

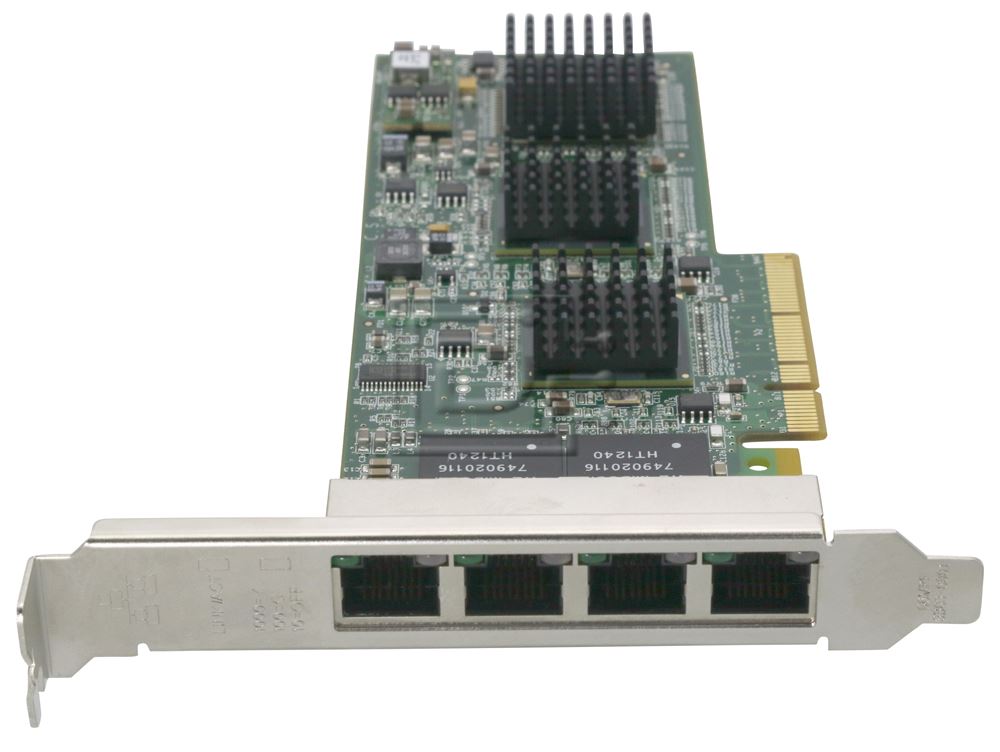

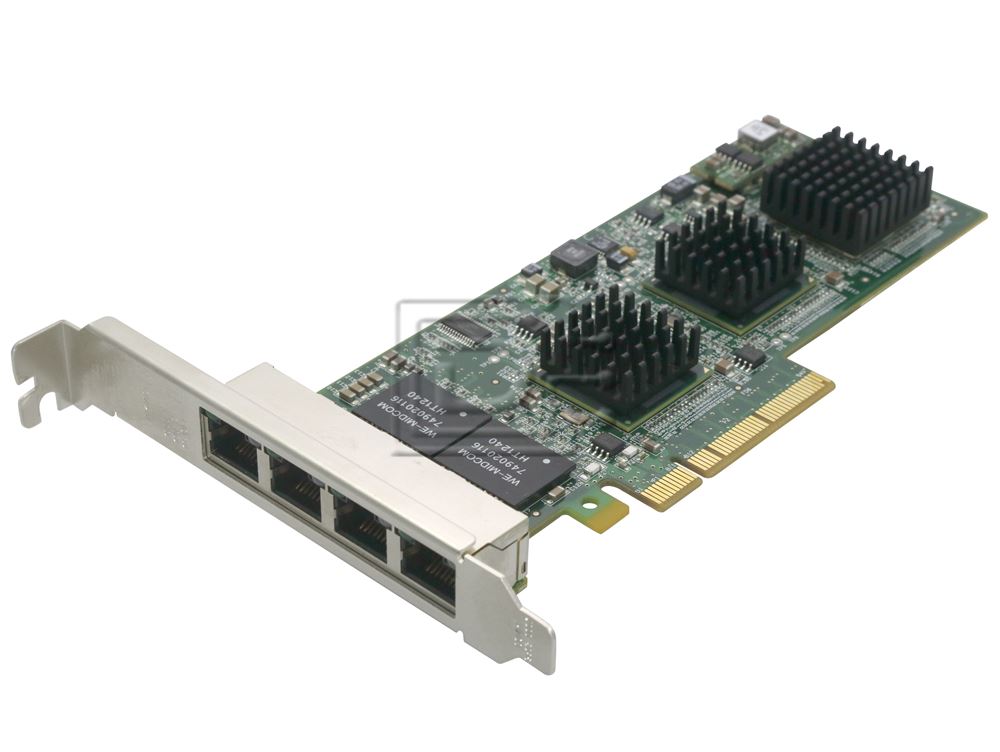

Silicom PEG4i6 Ethernet Server Adapter

Silicom Part #/MPN: PEG4i6

DiscTech Item #: SIL-PEG4i6-NP-OE


Interface Types: Ethernet RJ45, PCIe

Electrical Interface: Ethernet Gigabit - 1Gbps

Voltage: 12V

Silicom PEG4i6 Quad Port Copper Gigabit Ethernet PCIe Server Adapter Intel Based - New Pull

Silicom PEG4i6 Quad Port Copper Gigabit Ethernet PCIe /PCI Express Server Adapter Intel Based - New Pull

Quad Port Copper Gigabit Ethernet PCI Express Server Adapter Intel® Based

Silicom’s Quad Port Copper Gigabit Ethernet PCI Express Server adapter is PCI-Express X8 Copper Gigabit Ethernet network interface card that contain Multiple / Single Gigabit port/s on a PCI-Express adapter.

Silicom’s Quad Port Copper Gigabit Ethernet PCI Express Server adapter is designed for Servers and high-end appliances. The performance is optimized so that system I/O is not the bottleneck in high-performance networking applications.

Silicom’s Quad Port Copper Gigabit Ethernet PCI Express Server adapter enable fault-tolerant via teaming. Traffic from the failed port is routed through other members of the team.

Silicom’s Quad Port Copper Gigabit Ethernet PCI Express Server adapter has an integrated hardware acceleration that performs TCP/UDP/IP checksum offload and TCP segmentation. The host processing offloads accelerators frees CPU for application processing.

Silicom’s Quad Port Copper Gigabit Ethernet PCI Express Server adapter is the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.

Silicom’s Quad Port Copper Gigabit Ethernet server adapter is based on Intel 82576 Dual port Gigabit Ethernet MAC+PHY of Intel Controller.

Performance Features:

  • 16 Transmit and Receive queues per port
  • Up to 16 queues of Receive Side Scaling (RSS) minimize CPU utilization across multiple processor systems
  • Support for 8 pools of virtual machine Device Queues (VMDq) per port
  • Support Direct Cache Access (DCA)
  • Support Intel I/O AT 2.0
  • TSO interleaving for reduced latency
  • Minimized device I/O interrupts using MSI and MSI-X
  • Offload of TCP / IP / UDP checksum calculation and TCP segmentation
  • SCTP receive and transmit checksum offload
  • Packet interrupt coalescing timers (packet timers) and absolute- delay interrupt timers for both transmit and receive operation

Copper Gigabit Ethernet 1000Base-T :

  • Independently copper Gigabit Ethernet channels support Single Gigabit Ethernet (1000Base-T), Fast Ethernet (100Base-Tx) and Ethernet (10Base-T)
  • Triple speed 1000Mbps (1000Base-T), 100 Mbps (100Base-Tx) and 10 Mbps (100Base-T) operation
  • Nway auto negotiation automatic sensing and switching between 1Gbps full duplex and 100 / 10 Mbps operations Simplex or Full Duplex
  • RJ-45 female connectors

Common Key features:

  • Host Interface standard support: PCI-Express Base Specification Revision 1.1
  • High performance, reliability, and low power use in Intel 82576 Dual integrated MAC + PHY and SERDES chip Controllers
  • Ultra deep, packet buffer per channel lowers CPU utilization
  • Hardware acceleration that can offload tasks from the host processor. The Controllers can offload TCP/UDP/IP checksum calculations and TCP segmentation
  • Server class reliability, availability and performance features:
  • Link Aggregation and Load Balancing
    • Switch dependent: 802.3ad (LACP), Generic Trunking ( GEC / FEC)
    • Switch and NIC Independent
    • Failover
  • Priority queuing – 802.1p layer 2 priority encoding
  • Virtual LANs –802.1q VLAN tagging
  • Jumbo Frame (9.5KB)
  • 802.x flow control
  • Multicast/ broadcast Packet replication
  • Statistics for SNMP MIB II, Ethernet like MIB, and Ethernet MIB (802.3z, Clause 30)
  • Supports Vital Product Data (VPD)
  • Supports IEEE 1588
  • LEDs indicators for link/Activity/Speed status

Quad Port Copper Gigabit Ethernet PCI Express Server Adapter Intel® Based
Model NumberPEG4i6
Copper Gigabit Ethernet Technical Specifications – (1000Base-T) Adapters:
IEEE Standard / Network topology
  • Gigabit Ethernet, 1000Base-T
  • Fast Ethernet, 100Base-TX
  • Ethernet, 10Base-T
  • Full duplex / SimplexSupport both Simplex & Full duplex operation in all operating speeds
    Auto negotiation
  • Auto-negotiation between Full duplex and simplex operations and between 10Mb/s
  • 100Mb/s speeds and duplex 1000Mb/s
  • Cables and Operating distance
  • 10Base-T Category 3, 4, or 5 maximum 100m
  • 100Base-Tx Category 5 maximum 100m
  • 1000Base-T Category 5E maximum 100m
  • Operating Systems Support
    Operating system support
  • Windows
  • Linux
  • FreeBSD
  • VMware450 MB/s
  • General Technical Specifications
    Interface StandardPCI-Express Base Specification Revision 1.1
    Board SizeLow profile short add-in card: 167.64mm X 68.91mm (6.60”X 2.713”)
    PCI Express Card TypeX8 Lane
    PCI Express Voltage
  • +3.3V +-9%
  • +12V +- 8%
  • PCI ConnectorGold Finger: X8
    ControllerIntel 82576EB
    Weight100 gr (3.527 oz)
    Power Consumption
  • 9.399W, 0.39A at 12V and 1.43A at 3.3V:
    Typical all ports operate at 1000Mbit/s.
  • 6.645W, 0.32A at 12V and 0.85A at 3.3V:
    Typical all ports operate at 100Mbit/s.
  • 6.108W, 0.30A at 12V and 0.76A at 3.3V:
    Typical all ports operate at 10Mbit/s.
  • 5.766W, 0.31A at 12V and 0.62A at 3.3V:
    Typical No link at all ports
  • HolderMetal Bracket: Full Height/Low profile Height
    Operating Humidity0%–90%, non-condensing
    Operating Temperature0°C – 50°C (32°F – 122°F)
    Storage-20°C–65°C (-4°F–149°F)
    EMC Certifications
  • FCC Part 15, Subpart B Class B
    Conducted Emissions
    Radiated Emissions
  • CE EN 55022: 1998 Class B Amendments A1: 2000; A2: 2003
    Conducted Emissions
    Radiated Emissions
  • CE EN 55024: 1998 Amendments A1: 2000; A2: 2003
    Immunity for ITE Amendment A1: 2001
  • CE EN 61000-3-2 2000, Class A
    Harmonic Current Emissions
  • CE EN 61000 3-3 1995, Amendment A1: 2001
    Voltage Fluctuations and Flicker
  • CE IEC 6100-4-2: 1995
    ESD Air Discharge 8kV. Contact Discharge 4kV.
  • CE IEC 6100-4-3:1995
    Radiated Immunity (80-1000Mhz), 3V/m 80% A.M. by 1kHz
  • CE IEC 6100-4-4:1995
    EFT/B: Immunity to electrical fast transients 1kV Power
    Leads, 0.5Kv Signals Leads
  • CE IEC 6100-4-5:1995
    Immunity to conductive surges COM Mode; 2kV,
    Dif. Mode 1kV
  • CE IEC 6100-4-6:1996
    Conducted immunity (0.15-80 MHz) 3VRMS 80% A.M.
    By 1kHz
  • CE IEC 6100-4-11:1994
    Voltage Dips and Short Interruptions
    V reduc >95%, 30% >95% Duration 0.5per, 25per, 250per
  • MTBF
  • 131 (Years)
    * According to Telcordia SR-332 Issue 1
  • Environmental condition – GB (Ground, Fixed, Controlled).
  • Ambient temperature – 25°C. Temperature rise of 15°C above the system ambient temperature was assumed for the cards components
  • LEDs
    LEDs(2) LEDs per port
  • Link / Act Led:
    Turn on any Link speed , Blinks on Activity (green)
  • Speed (Bi-color) Led:
    1000Mbit/s: Turns on Yellow
    100Mbits/s: Turns on Green.
    10Mbit/s: Turns off
  • LEDs locationLEDs are integrated on RJ-45 connector
    Connectors (4) Shielded RJ-45

    Click here to view the manufacturer's item description/brochure

    Weight: 0.5 lb

    Warranty: 1 Year DiscTech

    New Pull

    Condition Levels Explained

    The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

    1 Year DiscTech Warranty

    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty
