Silicom Part #/MPN: PEG6I
DiscTech Item #: SIL-PEG6I-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: Ethernet RJ45, PCIe
|
Silicom’s Gigabit Ethernet PCI Express Server adapters enable fault-tolerant via teaming. Traffic from the failed port is routed through other members of the team.
Silicom’s Gigabit Ethernet PCI-Express Server adapters have an integrated hardware acceleration that performs TCP/UDP/IP checksum offload and TCP segmentation. The host processing offloads accelerators frees CPU for application processing.
Silicom’s Gigabit Ethernet PCI-Express Server adapters are the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.
Key features
Copper Gigabit Ethernet (1000Base-T) Adapters :
• Independently copper Gigabit Ethernet channels support six, four, two and one Gigabit Ethernet (1000Base-T), Fast Ethernet (100Base-Tx) and Ethernet (10Base-T).
• Triple speed 1000Mbps (1000Base-T), 100 Mbps (100Base-Tx) and 10 Mbps (100Base-T) operation.
• Nway auto negotiation automatic sensing and switching between 1Gbps full duplex and 100 / 10 Mbps operations Simplex or Full Duplex.
• RJ-45 female connectors.
Common Key features
• Host Interface:
• Host Interface standard support.
• PCI-Express Base Specification Revision 1.0a.
• High performance, reliability, and low power use in advanced Intel integrated MAC + PHY / SERDES chip Controllers.
• Ultra deep, packet buffer per channel lowers CPU utilization, avoids PCI-Express congestion
• Hardware acceleration that can offload tasks from the host processor. The Controllers can offload TCP/UDP/IP checksum calculations and TCP segmentation.
• Server class reliability, availability and performance features:
• Link Aggregation and Load Balancing
Switch dependent: 802.3ad (LACP), Generic Trunking ( GEC / FEC)
• Switch and NIC Independent.
• Failover
• Priority queuing – 802.1p layer 2 priority encoding.
• Virtual LANs –802.1q VLAN tagging.
• Jumbo Frame (16KB).
• 802.x flow control.
• Statistics for SNMP MIB II, Ethernet like MIB, and Ethernet MIB (802.3z, Clause 30)
• LEDs indicators for link/Activity/Speed status.
The Silicom PEG6I has been verified by Sun to operate under Solaris 10 and Solaris 10 (64 Bit) operating systems.
The PEG6i is the updated version of the PEXG6i NIC.
PEG6I: General Technical Specifications
Interface Standard: | PCI-Express Base Specification Revision 1.0a |

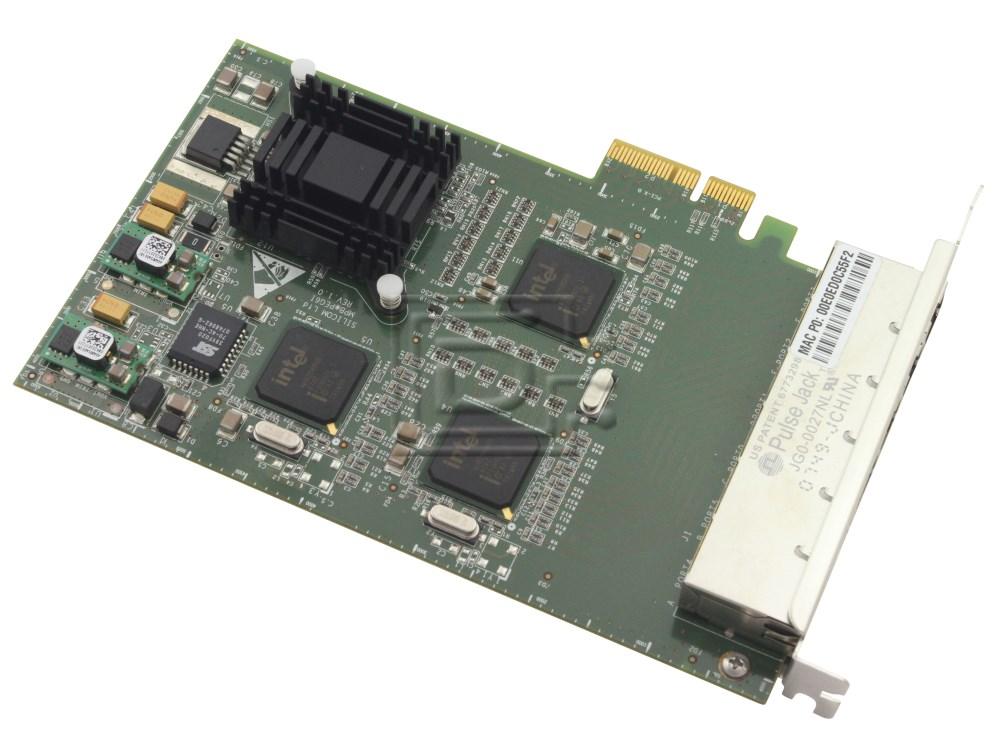

| Board Size: | Standard height short add-in card 167.64mm X 111.18mm (6.60” X 4.377”) |
| PCI Express Card Type: | X8 Lane |
| PCI Connector: | X8 Lane |
| PCI Express Voltage: | +3.3V +-9%, +12V +- 8% |
| Holder: | Metal Bracket |
| Weight: | 140 gram (4.94 oz) |
| Power Consumption: | 13.5W: 1.12 A at 3.3V and 0.81 A at 12V, Typical all ports operate at 1000Mbit/s. 8.5W: 1.12 A at 3.3V and 0.40 at 12V, Typical all ports operate at 100Mbit/s. 8W: 1.12 A at 3.3V and 0.34 at 12V, Typical all ports operate at 10Mbit/s 8W: 1.11 A at 3.3V and 0.35A at 12V, Typical No link at all ports |
| Operating Temperature: | 0°C – 50°C (32°F - 122°F) |
| Storage Temperature: | -20°C–65°C (-4°F–149°F) |
| EMC Certifications: | CE EN 55022: 1998 Class B Amendments A1: 2000; A2: 2003 Conducted Emissions Radiated Emissions CE EN 55024: 1998 Amendments A1: 2000; A2: 2003 Immunity for ITE Amendment A1: 2001 CE EN 61000-3-2 2000, Class A Harmonic Current Emissions CE EN 61000 3-3 1995, Amendment A1: 2001 Voltage Fluctuations and Flicker CE IEC 6100-4-2: 1995 ESD Air Discharge 8kV. Contact Discharge 4kV. CE IEC 6100-4-3:1995 Radiated Immunity (80-1000Mhz), 3V/m 80% A.M. by 1kHz CE IEC 6100-4-4:1995 EFT/B: Immunity to electrical fast transients 1kV Power Leads, 0.5Kv Signals Leads CE IEC 6100-4-5:1995 Immunity to conductive surges COM Mode; 2kV, Dif. Mode 1kV CE IEC 6100-4-6:1996 Conducted immunity (0.15-80 MHz) 3VRMS 80% A.M. By 1kHz CE IEC 6100-4-11:1994 Voltage Dips and Short Interruptions V reduc >95%, 30% >95% Duration 0.5per, 25per, 250per |
PXG6: LED / Connector Specifications
LEDs: | (2) LEDs per port |
| LEDs location | LEDs are located on the PCB, visible via holes in the metal bracket holder |

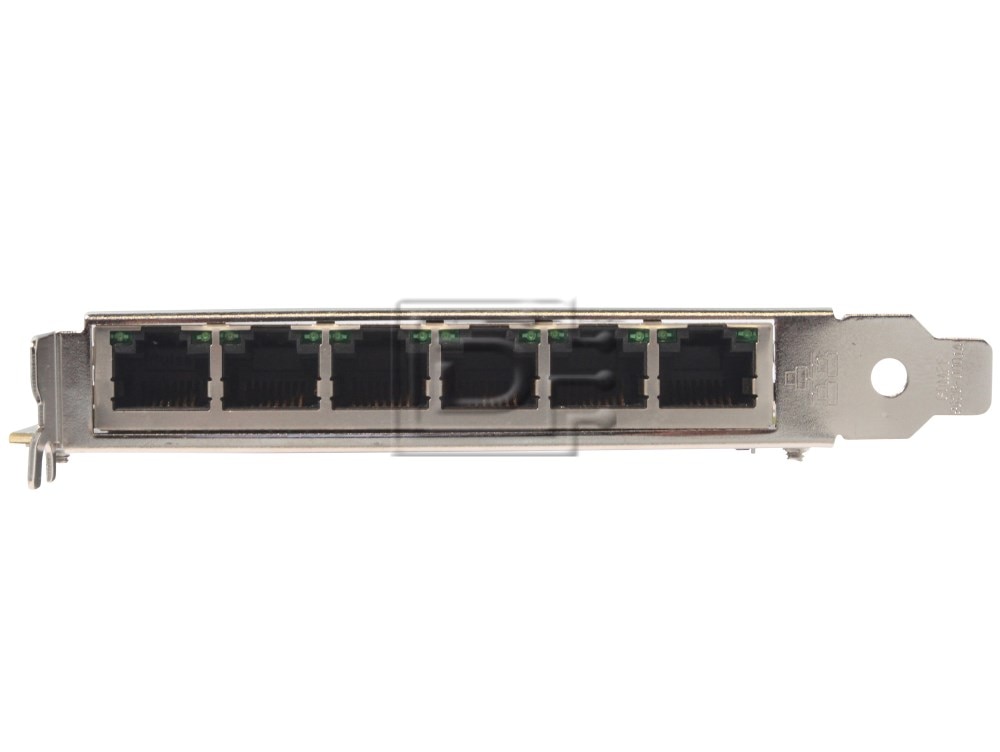

| Connectors: | (6) Shielded RJ-45 |
Copper Gigabit Ethernet Technical Specifications - (1000Base-T) Adapters:
IEEE Standard / Network topology: | Gigabit Ethernet, 1000Base-T |
| Full duplex / Simplex | Support both Simplex & Full duplex operation in all operating speeds |
| Auto negotiation: | Auto-negotiation between Full duplex and simplex operations and between 10Mb/s 100Mb/s speeds and duplex 1000Mb/s. |
| Data Transfer Rate: | 1000 Mbit/s, 100 Mbit/s and 10 Mbits/sec in simplex mode per port. 2000Mbit/s 200 and 20 Mbit/s in full duplex mode per port. |
| Cables and Operating distance: | 10Base-T Category 3, 4, or 5 maximum 50m * 100Base-Tx Category 5 maximum 50m * 1000Base-T Category 5E maximum 50m * *Theoretical Distance – Defined as half a distance as stated by the IEEE 802.3 standard |
Operating Systems Support (all adapters):
Operating system support: | Windows.NET |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: PEXG6I YK537 0YK537
Weight: 2 lb
Warranty: 1 Year DiscTech
