Solidigm D5-P5336 122.88TB PCIe 4.0 NVMe U.2 SSD SBFPF2BV0P12001
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 5 Year ManufacturerWarrantyProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
| Capacity: | 122.88TB |
| Speed: | Solid State |
| Interface Types: | NVMe U.2 |
| Form Factor: | 2.5" SFF Server Drive |
| SSD Endurance DWPD: | Enterprise Read Intensive / RI |
| Electrical Interface: | PCIe 4.0 32GBps |
Description

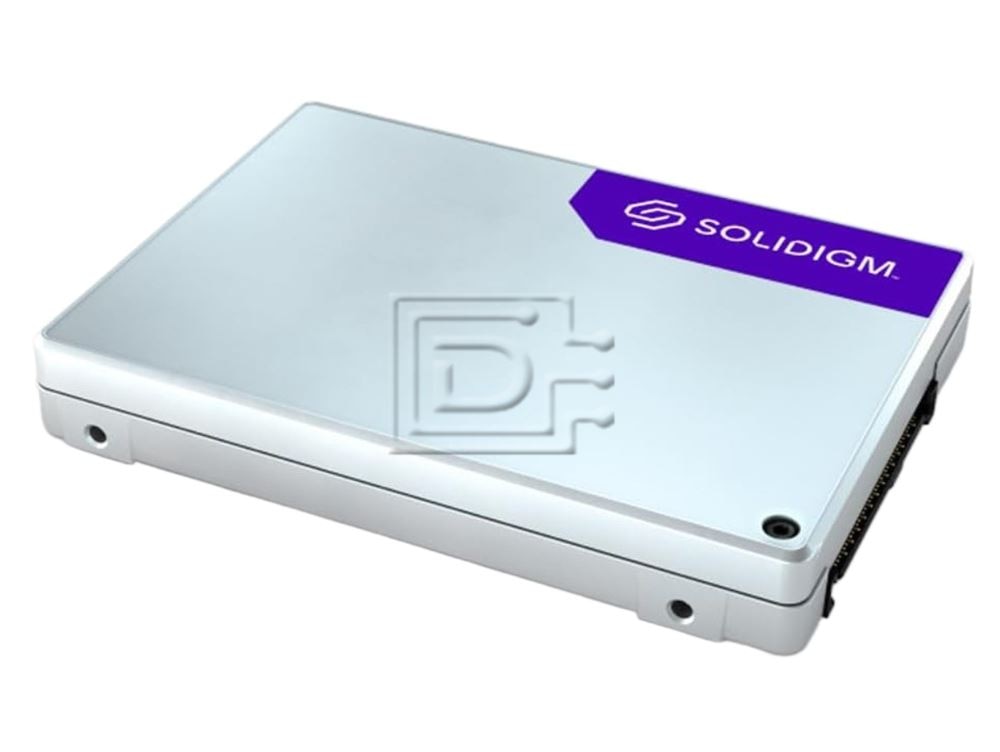

Intel / Solidigm SBFPF2BV0P12001 / D5-P5336 122.88TB 2.5" NVME U.2 PCIe 4.0 X4 192L QLC SSD - Brand New
Intel / Solidigm SBFPF2BV0P12001 / D5-P5336 122.88TB 2.5" NVME U.2 PCIe 4.0 X4 192L QLC SSD - Brand New
Intel D5-P5336 Series SSD
Redefining High-Density Storage for the AI Era.
Built on the industry’s most advanced high-density architecture, the Intel® SSD D5-P5336 is engineered to handle the massive data pipelines of modern AI, big data, and content delivery networks. By doubling down on the efficiency of QLC NAND, the P5336 provides the massive capacity required to consolidate storage footprints while significantly lowering TCO across the data center.
The Intel SSD D5-P5336 introduces refined architectural optimizations designed to eliminate storage bottlenecks in data-intensive environments, offering seamless scalability and improved endurance for read-intensive workloads.
Massive Capacity Scaling: Available in industry-leading capacities to enable extreme storage density, allowing for the replacement of aging HDD tiers with all-flash performance.
NVMe 1.4c Compliance: Supports advanced NVMe features for improved resource management and streamlined communication between the host and the drive.
Optimized Write Shaping: Intelligent firmware enhancements improve QLC endurance and predictability, ensuring reliable performance over the life of the drive.
Enterprise-Grade Security: Features robust data protection with AES-256 Hardware Encryption, Secure Boot, and TCG Opal 2.0 to safeguard sensitive at-rest data.
Advanced Telemetry 2.0: Provides granular insights into drive health and performance metrics. This deep-visibility approach allows for proactive maintenance, reducing downtime and optimizing fleet management in hyperscale environments.
Compatibility
This drive is compatible with any server that accepts 2.5"x15mm (SFF SSD) PCIe drives.
Specifications
| Solidigm™ D5-P5336 Series (122.88TB, 2.5in PCIe 4.0 x4, 3D5, QLC) Generic No Opal Single Pack | |
| Essentials | |
| Product Collection | Solidigm™ D5-P5336 Series |
| Capacity | 122.88TB |
| Lithography Type | 192 L QLC 3D NAND |
| Use Conditions | Server/Enterprise |
| MMID | AA0019882 |
| Performance Specifications | |
| Sequential Bandwidth - 100% Read (up to) | 7000MB/s |
| Sequential Bandwidth - 100% Write (up to) | 3000MB/s |
| Random Read (100% Span) | 900,000 IOPS (4K, QD256) |
| Random Write (100% Span) | 19,000 IOPS (16K, QD256) |
| Latency - Sequential Read (typ.) | 8μs (4K Blocks) |
| Latency - Sequential Write (typ.) | 21μs (32K Blocks) |
| Latency - Read | 110μs (4K Blocks) |
| Latency - Write | 40μs (32K Blocks) |
| Power - Active | 24W |
| Power - Idle | 5W |
| Reliability | |
| Vibration - Operating | 2.17 GRMS (5 - 700 Hz) Max |
| Vibration - Non-Operating | 3.13 GRMS (5 - 800 Hz) Max |
| Shock (Operating and Non-Operating) | 1,000 G (Max) at 0.5 msec |
| Operating Temperature Range | 0 - 70°C |
| Endurance Rating (Lifetime Writes) | 0.6 DWPD (32K RW) / 134.3 PBW |
| Mean Time Between Failures (MTBF) | 2 million hours |
| Uncorrectable Bit Error Rate (UBER) | <1 sector per 10^17 bits read |
| Warranty Period | 5 years |
| Package Specifications | |
| Weight | 166.4g +/- 10g |
| Form Factor | U.2 15mm |
| Interface | PCIe 4.0 x4, NVMe |
| Compliance | |
| ECCN | 5A992C |
| US HTS | 8523510000 |
| CCATS | G162706L3 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 0.5 lb
Warranty: 5 Year Manufacturer
Condition
The product is brand new.
Warranty
5 Year Manufacturer Warranty
