SUN MICROSYSTEMS Part #/MPN: 540-7151
DiscTech Item #: SUN-540-7151-UP-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 146GB
Speed: 10,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Average Seek Time: 4.0 / 4.5
Electrical Interface: SAS-1 Serial Attached SCSI - 3.0Gbps
On-Board Cache: 16MB

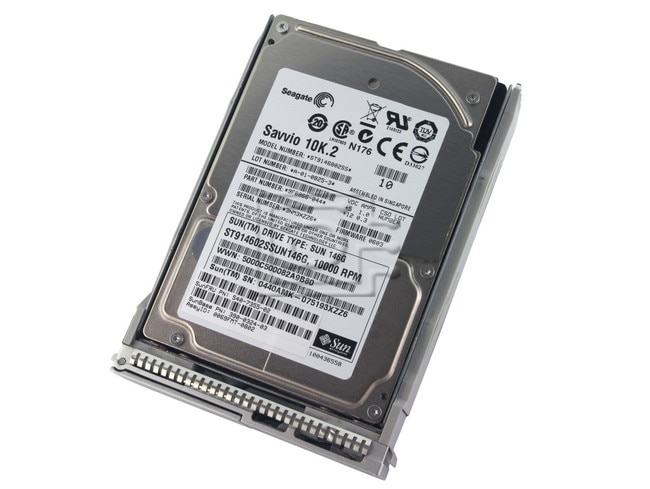

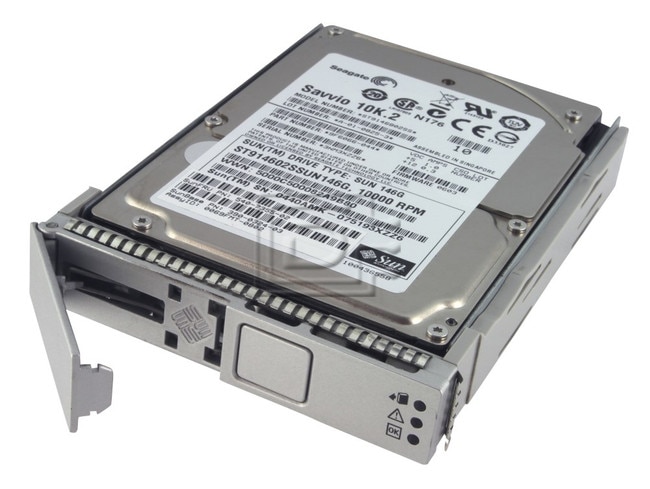

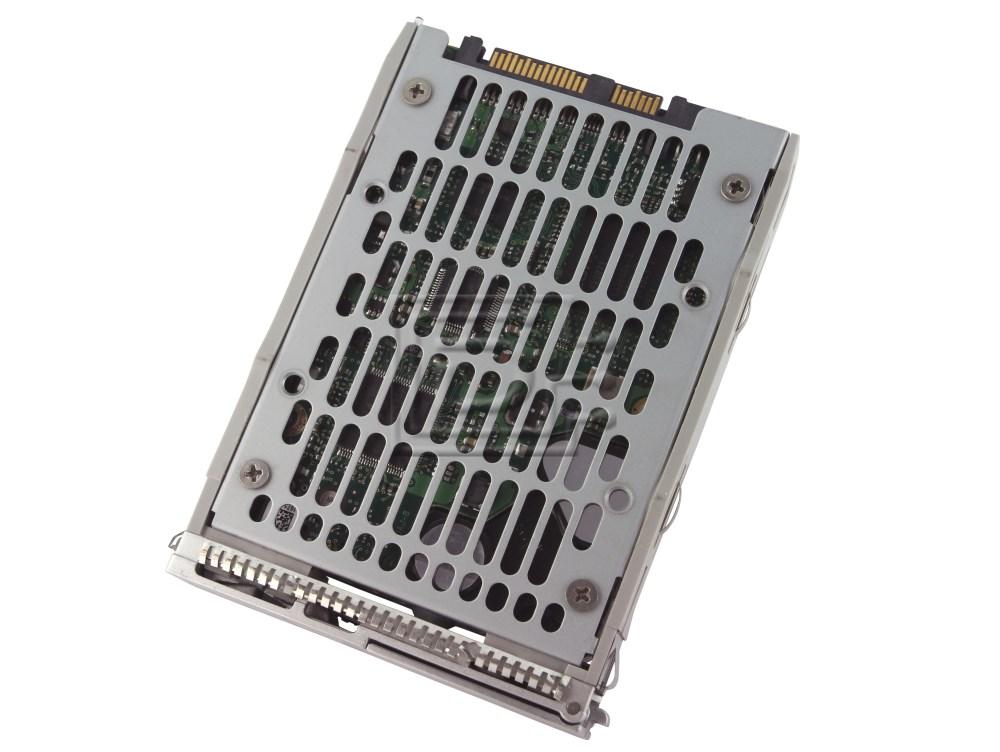

Sun Original 540-7151 146GB 2.5-in SFF 10000 RPM 3.0Gbps SAS / Serial Attached SCSI Hard Drive Nemo Bracket 541-0239 - Used Pull
Sun Original 540-7151 146GB 2.5-in SFF 10000 RPM 3.0Gbps SAS / Serial Attached SCSI Hard Drive Nemo Bracket 541-0239 - Used Pull
Alt Model Number: 5407151, 540-7151-01, XRA-SS2CD-146G10KZ, XRA-SS2CD146G10KZ. XRASS2CD-146G10KZ. XRASS2CD146G10KZ, XRB-SS2CD-146G10KZ, XRB-SS2CD146G10KZ, XRBSS2CD-146G10KZ, XRBSS2CD146G10KZ, SEPX3C11Z, 390-0324-02, 390-0375-02, 390-0377-02, ST9114602SSUN146G, MBB2147RCSUN146G, H101414SCSUN146G
Compatible With:Sun Fire V445, T1000, T2000, X4100, X4200, SPARC Enterprise T2000, V215, V245, X4100 M2, X4200 M2, X4600 M2, Sun Blade X8400, X8420, T6300, X6220, X62.
Compatibility:
| Sun Fire V215 Server | Sun Fire V245 Server | Sun Fire V445 Server | Sun Fire X4100 Server |
| Sun Fire X4100-M2 Server | Sun Fire X4140 Server | Sun Fire X4150 Server | Sun Fire X4170 Server |
| Sun Fire X4170-M2 Server | Sun Fire X4200 Server | Sun Fire X4200-M2 Server | Sun Fire X4240 Server |
| Sun Fire X4250 Server | Sun Fire X4270 Server | Sun Fire X4270-M2 Server | Sun Fire X4440 Server |
| Sun Fire X4450 Server | Sun Fire X4470 Server | Sun Fire X4600 Server | Sun Fire X4600-M2 Server |
| Sun Fire T1000 Server | Sun Fire T2000 Server | Sun Blade T6300 Server | Sun Blade T6320 Server |
| Sun Blade T6340 Server | Sun Blade X6220 Server | Sun Blade X6240 Server | Sun Blade X6250 Server |
| Sun Blade X6270 Server | Sun Blade X6270-M2 Server | Sun Blade X8400 Server | Sun Blade X8420 Server |
| Sun Blade X8440 Server | Sun Blade X8450 Server | Sun SPARC Enterprise M4000 Server | Sun SPARC Enterprise M5000 Server |
| Sun SPARC Enterprise M8000 Server | Sun SPARC Enterprise M9000 Server | Sun SPARC Enterprise T1000 Server | Sun SPARC Enterprise T2000 Server |
| Sun SPARC Enterprise T5120 Server | Sun SPARC Enterprise T5140 Server | Sun SPARC Enterprise T5220 Server | Sun SPARC Enterprise T5240 Server |
| Sun SPARC Enterprise T5440 Server | Oracle Exadata V2 Server | Sun Netra 210 Telco | Sun Netra CP3020 Telco |
| Sun Netra T2000 Telco | Sun Netra T5220 Telco | Sun Netra T5440 Telco | Sun Netra X4200-M2 Telco |
| Sun Netra X4250 Telco | Sun Netra X4450 Telco | Sun Netra X6270-M2 Telco | Sun Storage 7110 Disk Array |
| Functional Specifications | |
|---|---|
| Model/Part No. | 540-7151 |
| Alt Model/Part No. | |
| Formatted Storage Capacity | 146 GB |
| Seek Time (Track to Track) | Read 0.2 / Write 0.4 ms. Typ |
| Seek Time (Average) | 4.0/4.5 ms. Typ. (Read/Write) |
| Seek Time (Full Track) | 8.0/9.0 ms. Typ. (Read/Write) |
| Average Latency Time | 2.99 ms. |
| Rotational Speed | 10,000 RPM |
| Data Buffer Size | 16 MB |
| Physical Specifications | |
| Power Requirement Idle (Ready) | 4.5 W Typ. |
| Form Factor | 2.5-Inch x 15mm High |
| Height | 15.0 mm |
| Width | 69.85 mm |
| Depth | 100.45 mm |
| Weight | 0.22 kg |
| Ambient Temperature (Operating) | 5 to 55°C |
| Ambient Temperature (Non-Operating) | -40 to 70°C |
| Maximum DE Surface Temperature (Operating) | 55°C Max |
| Gradient | 15°C Per Hour |
| Relative Humidity (Operating) | 5 to 95% RH (Non-Condensing) |
| Relative Humidityh (Non-Operating) | 5 tp 95% RH (Non-Condensing) |
| Maximum Wet Bulb | 29°C (Non-Condensing) |
| Vibration (Operating) | 0.6mm (5 to 20 Hz)/ 1.0G (20 to 300 Hz) |
| Vibration (Non-Operating) | 3.1mm (5 to 20 Hz)/ 5.0G (20 to 300 Hz) |
| Shock (Operating) | 100G Max (1ms) |
| Shock (Non-Operating) | 400G Max (1ms) |
| Altitude (Operating) | 3,000 Meters |
| Altitude (Non-Operating) | 12,000 Meters |
| Acoustic Noise (At 1 Meter Idle) | >/=2.9 (Ready Bels |
| Reliability | |
| MTBF (Mean Time Between Failures) | 1,400,000 Power on Hours |
| Unrecoverable Errors | 1 per 10^15 Bits Read |
| Seek Errors | 10 per 10^8 Seeks |
Alternate MPNs: 5407151 540-7151-01 XRA-SS2CD-146G10KZ XRA-SS2CD146G10KZ XRASS2CD-146G10KZ XRASS2CD146G10KZ XRB-SS2CD-146G10KZ XRB-SS2CD146G10KZ XRBSS2CD-146G10KZ XRBSS2CD146G10KZ SEPX3C11Z 390-0324-02 390-0375-02 390-0377-02 ST9114602SSUN146G MBB2147RCSUN146G H101414SCSUN146G
