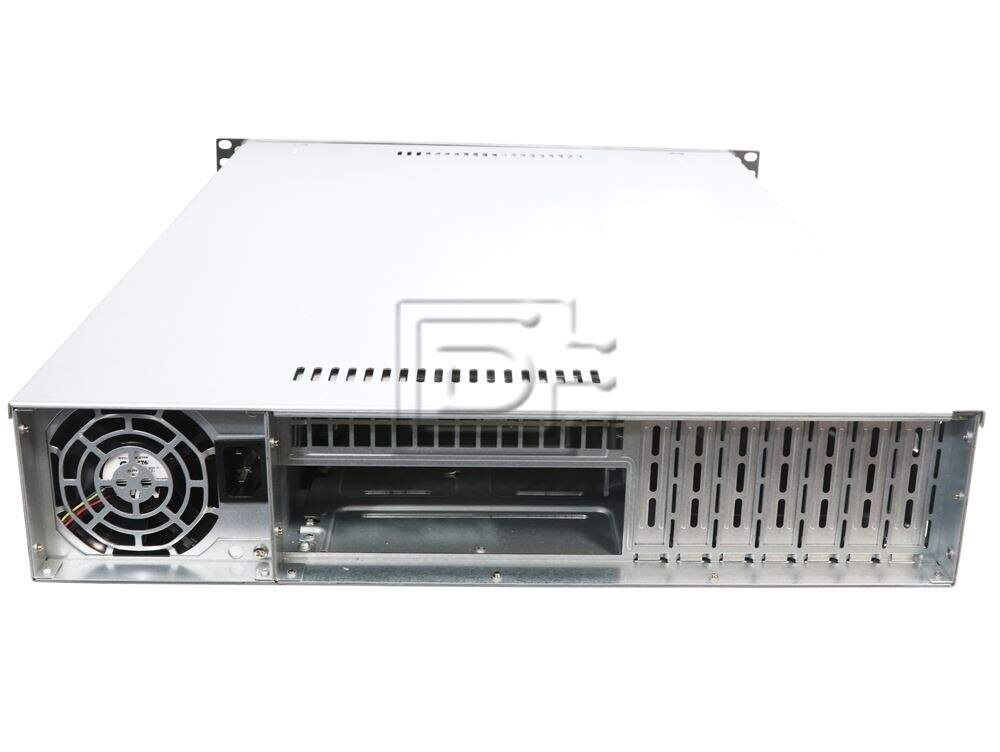

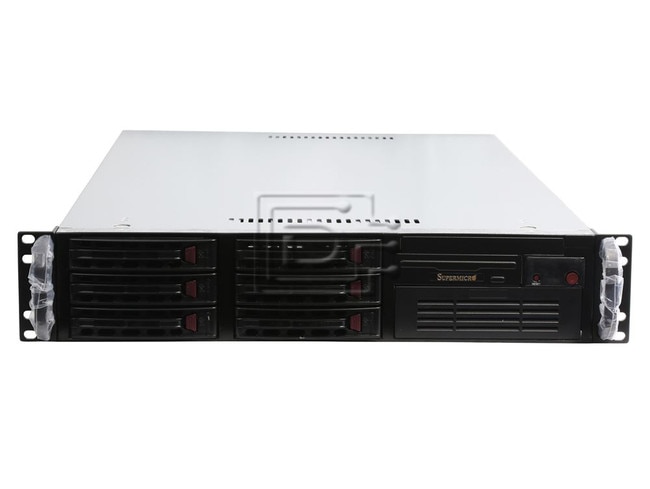

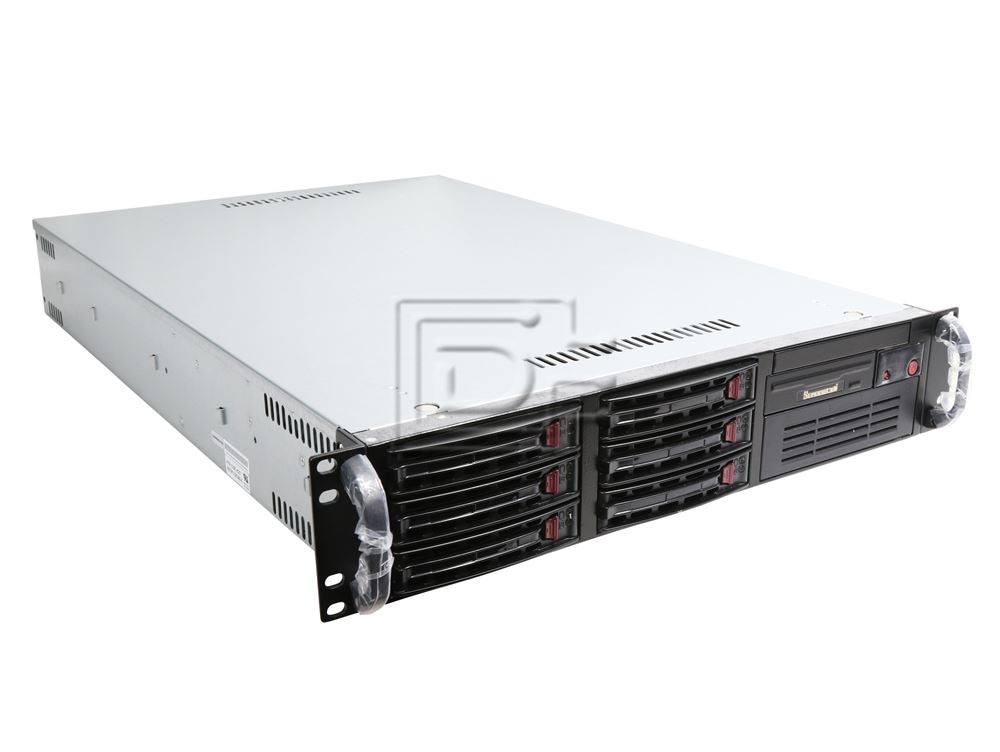

Supermicro SuperChassis SC823TQ-653LPB Black 2U 6x 3.5" HDD Bay Rackmount Server Chassis

SUPERMICRO COMPUTER SC823TQ-653LPB Rackmount Server Chassis Image 1 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Special Order - Call for Lead Time
    Special Order - Call for Lead Time

    This item has a variable lead time for fulfilment. Please call us to discuss. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$429.00

Bays/Ports/Slots:8
U Height:2U
Voltage:110-240V Multi
Color:Black

Description

Supermicro SuperChassis SC823TQ-653LPB Black 2U 6x 3.5" HDD Bay Rackmount Server Chassis - Brand New

Supermicro SuperChassis SC823TQ-653LPB Black 2U 6x 3.5" HDD Bay Rackmount Server Chassis - Brand New**

**Server Chassis Only - Motherboard, CPU, RAM, HDDs, not included.**

Key Features

  • 2U chassis supports for maximum motherboard sizes - E-ATX 12" x 13", ATX 12" x 10" motherboards
  • 6 x 3.5" hot-swap HDD / SSD drive bay (3.5" HDD caddys included.)
  • 6-port 2U TQ (W/ AMI 9072) backplane, support up to 6x 3.5-inch SAS/SATA HDD (SATA connectors x6)
  • 2U 600/650W Multi output power supply 24pin output
  • 7 low-profile expansion slot(s)
  • Rack mount 2U Chassis
  • 4 x 8cm (7000 RPM) hot-swap PWM cooling fan(s)

Specifications

Specifications
Form FactorRackmount / 2U  for maximum motherboard sizes - E-ATX 12" x 13", ATX 12" x 10" motherboards
Processor SupportSupports dual, single Intel® / AMD processors
Dimensions
Height3.5" (89 mm)
Width16.8" (426 mm)
Depth25.6" (650 mm)
Gross Weight53 lbs (24.04 kg)
Packaging Dims23.8" (605 mm) x 9.8" (249 mm) x 32.9" (836 mm)
Expansion Slots
Expansion slots7 low profile slots
Drive Bays
Hot-swap8x 3.5" SCA Ultra320/160 Hot-swap Drives
Drive Bay(s)
  • 6 x 3.5" hot-swap drive bay
    • HDD Backplane
    SAS / SATA Backplane6-port 2U TQ (W/ AMI 9072) backplane, support up to 6x 3.5-inch SAS/SATA HDD (6X SATA type connectors for SAS or SATA)
    Front Panel
    Buttons
  • Power On/Off button
  • System Reset button
    • LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network Activity LEDs
  • Power Status LED
  • Power Fail LED
  • System Information LED
    • Other Bays
  • 1x 3.5" FDD Bay
  • 1x Slim CD/DVD bay
    • System Cooling
    Fans
  • 4 x 8cm (7000 RPM) hot-swap PWM cooling fan(s)
    • System
    System Monitoring
    Operating Environment (System)
    Operating Temperature Range5°C ~ 35°C (41°F ~ 95°F)
    Non-Operating Temperature Range-40°C ~ 70°C (-40°F ~ 158°F)
    Operating Relative Humidity Range8% ~ 90% (non-condensing)
    Non-Operating Relative Humidity Range5% - 95% (non-condensing)
    Power Supply and Distributor
    Total Output Power and Input
    • 600W with Input 100 - 140Vac
    • 650W with Input 180 - 240Vac
    AC Voltage100 - 240V, 50-60Hz
    +5V Max: 30A / Min: 1A
    +12V
    • Max: 49A / Min: 1A (100Vac - 140Vac)
    • Max: 54A / Min: 1A (180Vac - 240Vac)
    Power Distribution
  • +3.3V Max: 25A / Min: 0.8A
  • -12V: Max: 0.5A / Min: 0A
    • Regulatory (Power Supply)
    Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • TUV/CB
  • UL/CUL
    • Click here to view the manufacturer's item description/brochure
