Supermicro SuperServer 6026T-NTR+ Server


DiscTech Item #: SMI-6026T-NTR-RF-OE

  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.


Interface Types: SAS Serial Attached SCSI, SATA, USB 2.0, Ethernet RJ45, PCI-X, PCIe, VGA, PS2, Riser

Form Factor: 3.5inx1.0in LFF Hard Drive

Electrical Interface: SATA 300 - 3.0Gbps

On-Board Cache: 1GB

Bays/Ports/Slots: 8

U Height: 2U

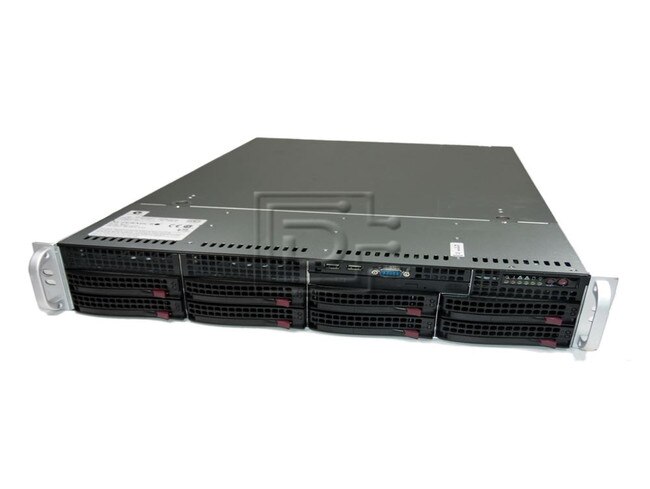

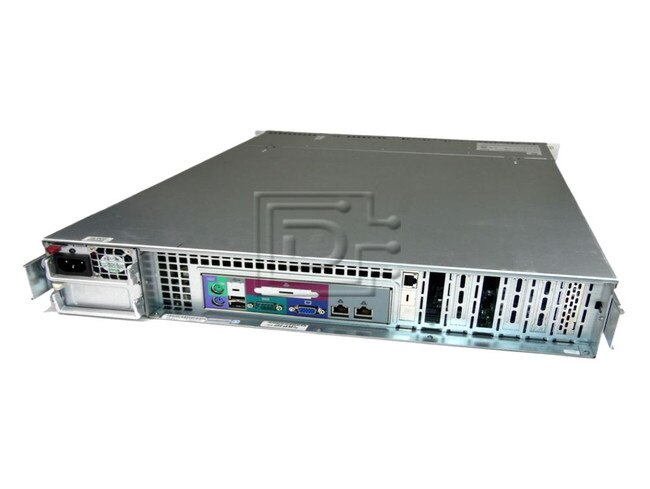

Supermicro SuperServer 6026T-NTR+ 2U Rackmountable Server - Refurbished

Supermicro SuperServer 6026T-NTR+ 2U Rackmountable Server - Refurbished

This server includes :

  • 2x Intel Xeon E5502 Dual Core 1.86GHz Processor
  • 4x Kingston KVR1333D3E9S 1G Unbuffered ECC 1GB DIMM DDR3 1333 memory module
  • 3x Sanyo Denki 9G0812P1G09 San ACE 80 fan
  • 1x Adaptec ASR-5805 512MB 8-Port PCI-e SAS RAID Controller Card
  • 2x SuperMicro PWS-721P-1R 720W 100-120V 80PLUS GOLD Switching Power Supply

SuperServer Benefits:

  • Uncompromising Quality Control
  • Most Comprehensive Line of Rackmount/Tower Servers
  • Best Selection of High-End Servers - Itanium, Xeon & P4
  • Redundant Components (virtually eliminating system downtime)
  • Best Price/Performance Ratio
  • Superior Product Design (all under one roof)
  • Consistently First-to-Market
  • Maximized Performance
  • Reduced Total Cost of Ownership (TCO)
  • Top-Notch Finishing Materials

These benefits combined with an excellent track record have earned Supermicro a reputation as a true leader in the high-end PC/server industry. After all, Supermicro provides the most outstanding product line in the industry, ranging from single Pentium 4 and dual Xeon to quad Xeon MP and dual Itanium systems. Their proven high level of quality and performance has made SuperServers the platform of choice for supercomputer clusters and enterprise databases as well as business-critical, front-end server applications.

Model Number6026T-NTR+
MotherboardSuper X8DTN+
  • Dual 1366-pin LGA Sockets
  • Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
    Intel® Xeon® Processor X5600/E5600/L5600 Series (Westmere) 40W - 130W
    Intel® Xeon® Processor X5500/E5500/L5500 Series (Nehalem-EP) 38W - 95W
  • QPIup to 6.4 GT/s
    System Memory
    Memory Capacity
  • 18x 240-pin DIMM slots
  • Supports up to 288GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory
  • Supports up to 48GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
  • Memory Mirroring supported
  • Memory Type1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
    DIMM Sizes1GB, 2GB, 4GB , 8GB , 16GB
    Memory Voltage1.5 V / 1.35V
    Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
  • Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
  • On-Board Devices
  • Intel® 5520 (Tylersburg) chipset
  • ICH10R + IOH-36D
  • SATA
  • Intel ICH10R SATA 3.0Gbps Controller
  • RAID 0, 1, 5, 10 support
  • IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • 200-pin IPMI slot (SIMLP)
  • Optional: AOC-SIMLP-B(+)
  • Optional: AOC-SIMLP-3(+) with 3rd LAN support
  • Network Controllers
  • Intel® 82576 Dual-Port Gigabit Ethernet Controller
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • Intel® I/OAT 3 support for fast, scaleable, and reliable networking
  • VMDq support for better performance of virtualization
  • GraphicsATI ES1000 controller with 32 MB of video memory
    Super I/OWinbond 83627HF chip
    Expansion Slots
  • 2 (x8) PCI-E slots (1 in x16 slot)
  • 1 (x4) PCI-E slot (in x8 slot)
  • PCI-X
  • 1x 64-bit 133MHz PCI-X (3.3V) slots
  • 2x 64-bit 133/100MHz PCI-X (3.3V) slots
  • UIO1 UIO slot (PCI-E 2.0 x8 slot)
    Input / Output
    Serial ATA
  • Six Serial ATA ports
  • Six SATA hard drives supported
  • IDE
  • Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S) including CF(Compact Flash) Card
  • Supports UDMA Mode 5, PIO Mode 4, and ATA/100
  • Floppy1 Floppy controller; 1.44 MB
    LAN2x RJ45 LAN ports
  • 2x USB rear ports
  • 2x USB on-board
  • 2x USB internal headers( 3 ports)
  • 7 total USB ports, 2.0 Compliant
  • VGA1x VGA Port
    Keyboard / MousePS/2 keyboard and mouse ports
    Serial Port / Header
  • 1 Fast UART 16550 serial port
  • 1 Fast UART 16550 serial header (Option)
  • Chassis
    Form Factor2U Rackmount
    Height3.5" (89mm)
    Width17.2" (437mm)
    Depth25.5" (648mm)
    Gross Weight55 lbs (24.9kg)
    Available ColorsBlack
    Front Panel
  • Power On/Off button
  • System Reset button
  • LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat / Fan Fail LED
  • Power fail LED
  • Ports2x USB Ports
    Drive Bays
  • 8x 3.5"SATA Hot-swap drive trays
  • Supports up to 6x SATA hard drives
  • Peripheral Drives
    DVD-ROMSlim 8x DVD, 24x CD, DVD-ROM Drive
    SAS / SATA 1x 2U SAS / SATA backplane
    System Cooling
    Fans3x 80mm 6300 RPM fans
    Shroud1x Air Shroud
    Power Supply with Power Distributor
    Power Supply720W (1+1) Redundant high-efficiency power supply with PMBus
    AC Input100-240 V, 50-60 Hz, 4-9 Amp
    DC Output
  • 3 Amp @ +5V standby
  • 59 Amp @ +12V
  • With Power Distributor
  • +5V: 30 Amp
  • +3.3V: 24 Amp
  • -12V: 0.6 Amp
  • System BIOS
    BIOS Type32Mb SPI Flash EEPROM with AMI® BIOS
    BIOS Features
  • Plug and Play (PnP)
  • PCI 2.2
  • ACPI up to 3.0
  • USB Keyboard support
  • PC Health Monitoring
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT Voltages.
  • 5-Phase-switching voltage regulator
  • FAN
  • Total of eight fan headers supporting up to 8 fans
  • Eight 4-pin fan headers
  • 8x fans with tachometer status monitoring
  • Support 3-pin fans (w/o speed control)
  • Low noise fan speed control
  • Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for 8x fan connectors
  • PECI
  • Other Features
  • Chassis intrusion detection
  • Chassis intrusion header
  • Operating Environment / Compliance
    RoHSRoHS Compliant
    Environmental Spec.
  • Operating Temperature: 10°to 35°C (50°to 95°F)
  • Non-operating Temperature: -40°to 70°C (-40°to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5 to 95% (non-condensing)

  • Click here to view the manufacturer's item description/brochure

    Alternate MPNs: 6026T-NTR

    Weight: 60 lb

    Warranty: 1 Year DiscTech
