Synology Part #/MPN: DS116
DiscTech Item #: SYN-DS116-BN-2Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:2 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: SATA, USB 3.0 3.1 3.2, Ethernet RJ45
Encryption/SED Supported
Electrical Interface: Ethernet Gigabit - 1Gbps
On-Board Cache: 1GB
Bays/Ports/Slots: 1
Wattage/VA: 36W
Voltage: 110-240V Multi

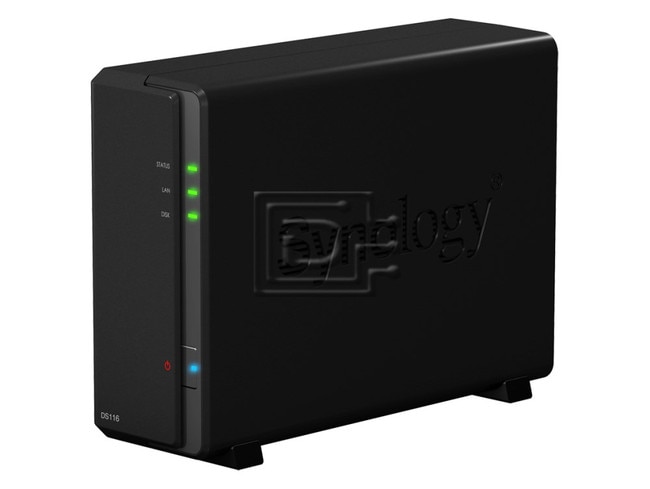

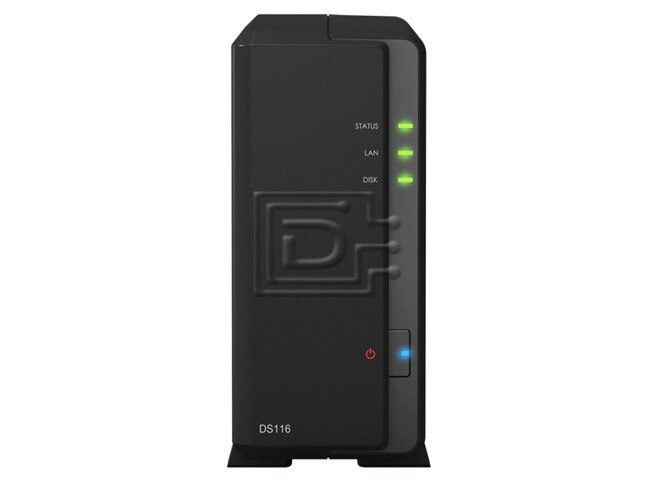

Synology DiskStation DS116 1 Bay Serial /ATA SATA Dual Core NAS Server - Diskless - Brand New
Synology DiskStation DS116 1 Bay SATA Dual Core NAS Server - Diskless - Brand New
Synology Diskstation DS116 1-bay Network Attached Storage Server includes ...

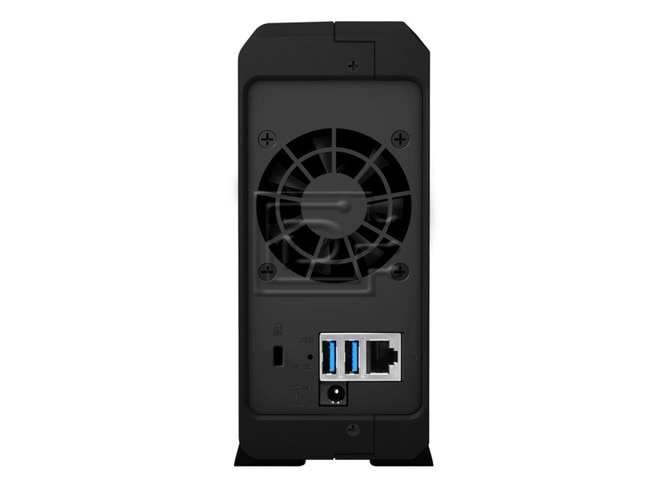

- 2x USB 3.0 port
- 1x Ethernet RJ45 1GbE LAN port
- 1GB DDR3 Ram
- 1 drive bay
- Marvel Armada 385 88F6820 Dual Core 1.8 GHz CPU
- Accepts 3.5" and 2.5" SATA hard drives and 2.5" SATA solid state drives.
- Encryption Capable
DiskStation DS116
Discover the power of anywhere access, streamline your workflow
This compact 1-bay NAS server comes with comprehensive features, allowing you to share and synchronize files across any device wherever you are, boost work productivity, and enhance team collaboration – everything you need for small offices and workgroup environments.
A private cloud beyond just data storage
DS116 lets you do much more than store important digital assets. It allows you to sync files across multiple devices and popular public cloud storage services in one single interface, increase work productivity with collaboration tools, and protect sensitive data with advanced backup packages.
Great value, speedy performance
Powered by a 1.8 GHz dual-core processor, DS116 delivers high speed performance exceeding 112 MB/s writing and 111 MB/s reading. With a dedicated hardware encryption engine, DS116 delivers significantly improved performance when transferring encrypted data, with 112 MB/s encrypted reading and 93 MB/s encrypted writing — an increase exceeding 241% in encrypted reading speed and 364% in encrypted writing speed when compared with its predecessor.
Dual USB 3.0 ensures high speed data transmission
The dual USB 3.0 ports offer fast and efficient data transmission to a wide range of external devices. USB 3.0 supports faster transfer speed to external hard drives while consuming less power.
Award winning OS – DiskStation Manager
Synology DiskStation Manager (DSM) is a sleek, browser-based operating system running on every DiskStation and RackStation, which makes managing your Synology NAS a breeze. Featuring an intuitive user interface, DSM makes accessing and sharing your data smarter and simpler. Synology's Package Center lets you download and install useful add-on packages designed specifically for individual or business needs, meaning you can enjoy more entertainment in your life or better productivity at work.
Modern collaboration tools
DS116 comes with a comprehensive set of office applications, allowing you to maximize work productivity and improve team dynamics. Whether you are keeping track of household expenses or updating your project status, with SpreadSheet you can work together with other people on the same document in real-time as if you were sitting next to each other – even when you are miles apart. In addition, Note Station lets you and your team keep detailed notes and accomplish more tasks with features such as charts, presentation view, mail clipper, and much more.
The most compatible sharing
Enjoy seamless files sharing across Windows®, Mac®, and Linux® platforms as DS116 offers comprehensive network protocol support including FTP, SMB2, AFP, NFS and WebDAV. With Windows AD and LDAP integration, DS116 can fit effortlessly into any existing network environment - there is no need for IT administrators to maintain two sets of credentials. You also won't worry about missing files with the Recycle Bin feature which is supported on AFP, CIFS, File Station, and WebDAV. All files deleted in a shared folder will be automatically moved into the Recycle Bin.
Your files anywhere with cloud service
DS116 brings you comprehensive cloud service. Cloud Station lets you sync files among DiskStations and multiple devices, including Windows PC, Mac, Linux, iOS, Android, as well as Windows mobile devices, whereas 2-way sync allows file synchronization among different DiskStations. With Cloud Sync, you can even sync your DiskStation with Amazon Cloud Drive, Google Drive, Microsoft OneDrive, Dropbox, Box, Baidu Cloud, and many more — establish your hybrid cloud to enjoy more storage flexibility and prevent data loss.
- Amazon Drive
- DropBox
- Google Drive
- OneDrive
- Amazon S3
- Microsoft Azure
- Google Cloud Storage
- OpenStack Swift
Home surveillance, accessible for all
With the Surveillance Station add-on package and two free IP camera and device licenses, DS116 serves as your home surveillance hub. Simply connect multiple IP cameras or I/O modules to the home network, pair them with DS116, and then easily view live surveillance feeds, record videos, or enjoy other advanced features like motion detection or push notifications. Support for thousands of IP cameras makes it easy to find compatible models and brands. Safeguard your home, without breaking the bank.
Enjoy multimedia library
DS116 provides you a central platform to organize, backup, and share photos, music, and video collections. Featuring a streamlined and sleek interface, Synology packages — Photo Station, Audio Station and Video Station — let you build a seamless entertainment hub effortlessly. Since everything is saved on DS116, you can enjoy more customizable content arrangement, and no worries about extra monthly fees for storage capacity. Better yet, your digital collections can be shared with others via a simple link.
- Photo Station
- Video Station
- Audio Station
Stream content to your TV
DS116 is highly compatible with other devices, letting you manage and enjoy digital content with the devices you already have: computers, mobile devices, TVs, DLNA devices, and stereos. Synology offers the latest support for TV streaming, including Samsung TV, Roku players, Apple TV, and Google Chromecast, meaning you can stream digital content stored on DS116 to your widescreen TV effortlessly.
- Samsung TV
- Apple TV
- Chromecast
- Roku
DLNA Certified® media server
As a DLNA Certified® DMS (Digital Media Server), DS116 can serve as your primary media server, with the capability to host digital multimedia content for local or remote playback. Once connected to a router, DS116 streams music, photos, and videos to DLNA-compliant devices, such as DLNA TVs or gaming consoles without any pre-configuration. You can even browse and select content on DS116 using DS audio and designate a DLNA player within the same local network to play it.
Get mobility with our apps
Synology develops versatile mobile apps — DS note, DS audio, DS video, DS photo, DS cloud, DS file, DS get and DS cam — allowing you to access and manage the contents of your DS116 with smartphones and tablets. QuickConnect brings an easier network experience as it eliminates complicated router configuration or port forwarding. With Synology mobile apps, your multimedia collection and work files are always on the go.
Connect your data quickly and easily
Synology aims to provide you the most convenient way to enjoy all services on DS116. With Synology QuickConnect, you don't have to deal with difficult DDNS setup. QuickConnect frees you from complicated router configuration and port-forwarding, so your entertainment and work files can be accessed on any computer, laptop, or mobile devices instantly without extra charge.
Eco-friendly NAS server
All Synology NAS is designed with energy efficiency in mind. DS116 only consumes 6.28W in HDD Hibernation and 10.68W in access*. With special fan and the smart airflow design, the DS116 keeps the system running cool 24/7, while its noise dampening design makes it quieter than PC counterparts. Synology acknowledges the responsibility as a global citizen, so all Synology products are produced with RoHS compliant parts and packed with recyclable packing materials.
* The power consumption figures may vary on different environments.
SPECIFICATIONS | |
---|---|
Model Number | DS116 |
CPU | |
CPU Model | Marvell Armada 385 88F6820 |
CPU Architecture | 32-bit |
CPU Frequency | Dual Core 1.8 GHz |
Hardware Encryption Engine | Yes |
MEMORY | |
System Memory | 1 GB DDR3 |
STORAGE | |
Drive Bay(s) | 1 |
Compatible Drive Type | |
Maximum, Internal Raw Capacity | 10 TB (10 TB HDD x 1) (Capacity may vary by RAID types) |
Maximum Single Volume Size | 16 TB |
EXTERNAL PORTS | |
USB 3.0 Port | 2 |
APPEARANCE | |
Size (Height x Width x Depth) | 166 mm x 71 mm x 224 mm |
Weight | 0.7 kg |
OTHERS | |
RJ-45 1GbE LAN Port | 1 |
Wake on LAN/WAN | Yes |
System Fan | 60 mm x 60 mm x 1 pcs |
Fan Speed Mode | |
Wireless Support (dongle) | Yes |
Brightness adjustable front LED indicators | yes |
Power Recovery | Yes |
Noise Level | 16.4 dB(A) |
Scheduled Power On/Off | Yes |
Power Supply Unit / Adapter | 36W |
AC Input Power Voltage | 100V to 240V AC |
Power Frequency | 50/60 HZ, Single Phase |
Power Consumption | |
British Thermal Unit |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 2 lb
Warranty: 2 Year Manufacturer
Brand New
The product is brand new.
2 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
