Synology Part #/MPN: DS1618-PLUS
DiscTech Item #: SYN-DS1618-PLUS-BN-3Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:3 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: SATA, eSATA External, USB 3.0 3.1 3.2, Ethernet RJ45
Form Factor: 3.5inx1.0in LFF Hard Drive
Encryption/SED Supported
Electrical Interface: Ethernet Gigabit - 1Gbps
On-Board Cache: 4GB
Bays/Ports/Slots: 6
Wattage/VA: 250W
Voltage: 110-240V Multi

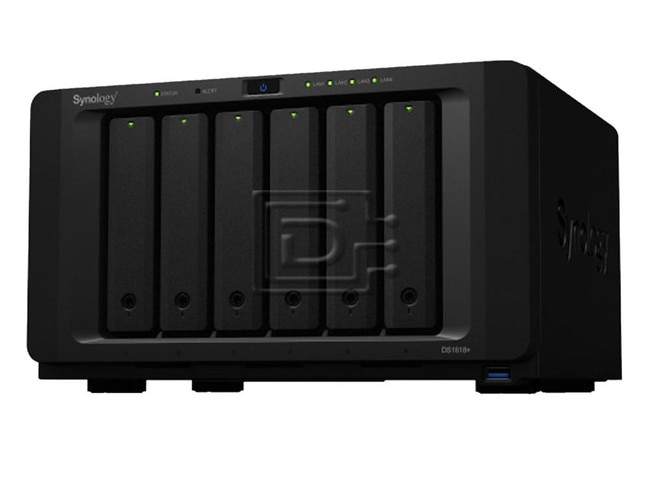

Synology DiskStation DS1618+ 6-bay SATA Quad Core NAS Server - Diskless - Brand New
Synology DiskStation DS1618+ 6-bay SATA Quad Core NAS Server - Diskless - Brand New
Synology Diskstation DS918+ 4-bay Network Attached Storage Server includes ...
- 3x USB 3.0 ports
- 2x eSATA ports
- 4x Ethernet RJ45 1Gb LAN ports
- 4GB DDR4 Ram, expandable up to 32GB (16 GB X 2)
- 6 drive bays, expandable to 16 when paired with an expansion unit
- Intel Atom C3538 Quad Core 2.1 GHz CPU
- accepts 3.5" and 2.5" SATA hard drives and 2.5" SATA solid state drives.
- Encryption capable
DiskStation DS1618+
High-performance and 6-bay NAS ideal for tackling multi-tasking challenges
User-oriented server with high-speed computing
DS1618+ is a 6-bay NAS that provides storage scalability perfect for tech enthusiasts and small- to medium-sized businesses by effortlessly handling workloads. Further boost storage performance with the optional M.2 SSD cache or enhance network speeds by adding a 10 GbE NIC.
- CPU
Quad-core 2.1GHz - RAM options
4GB DDR4 SO-DIMM, expandable up to 32GB - High Performance
2,037 MB/s sequential reading - RAID type
More flexible in RAID configuration
Supercharge your storage with speedy performance
DS1618+ comes with a PCIe expansion slot to support add-in cards. Install a dual M.2 SSD card for high-IOPS system caching or a 10GbE NIC for ultra-fast data transmission.
- M2D18
Dual M.2 NVMe / SATA SSD slot, compatible with 2280/2260/2242 form factors - 10GbE
10GbE network capacity for intensive bandwidth environments
Ultimate file management and sharing
File Station is a web-based, fast and secure management tool built to allow easy, drag-and-drop operations without requiring any complex setup on Mac or PC. Advanced search and filtering tools allow for easy organization and file sharing. For complete compatibility, DS1618+ supports the following protocols: AFP, FTP, iSCSI, NFS, SMB, and WebDAV.
Real-time collaboration on your private cloud
Office is a collaboration package combining the convenience and usability of public clouds with the data privacy and security guaranteed by private clouds. It allows you to work seamlessly together on documents and spreadsheets in a protected environment.
Ultimate Backup Solution
DS1618+ integrates various backup applications to safeguard your important data on any device with an intuitive user interface and durable storage technologies.
- Active Backup for Business
Centralize backup tasks for VMware, Windows, and file servers. Restore whatever you want fast and reliably when needed. - Hyper Backup
Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety. - Desktop Backup
Safeguard your PC with Cloud Station Backup. Effortlessly back up data stored on macOS to Synology NAS with Time Machine. - Active Backup for Office 365 / G Suite
On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology.
Btrfs: Next generation storage efficiency
Btrfs file system introduces the most advanced storage technologies to meet the management needs of modern large scale businesses:
- Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
- Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
- File or folder level data restoration makes data recovery fast and flexible
- Automatic file self-healing detects and recovers corrupted files without user intervention
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
Powered by Synology DSM
- DSM UI
Award-winning operating system with an intuitive user interface and powerful capabilities. - Public Cloud Integration
Backup and synchronize data easily between your public cloud accounts and your NAS. - Surveillance Station
Complete surveillance solution for recording, monitoring, and management. - Cloud Station Suite
Synchronize cross-platform data automatically with file version control on all your devices. - Snapshot Replication
Provides schedulable and instantaneous data protection for shared folders and virtual machines on iSCSI LUNs in the event of disaster. - Security
Comprehensive built-in security tools are constantly updated to tackle evolving threats and protect your devices.
| SPECIFICATIONS | |
|---|---|
| Model Number | DS1618+/DS1618-PLUS |
| CPU | |
| CPU Model | Intel Atom C3538 |
| CPU Architecture | 64-bit |
| CPU Frequency | Quad Core 1.5 burst up to 2.3 GHz |
| Hardware Encryption Engine | Yes |
| MEMORY | |
| System Memory | 4 GB DDR4 |
| Memory Module Pre-installed | 4GB (1 x 4GB) |
| Total Memory Slots | 2 |
| Memory Expandable up to | 32 GB (16 GB x 2) |
| STORAGE | |
| Drive Bay(s) | 6 |
| Maximum Drive Bays with Expansion Unit | 16 |
| Compatible Drive Type | |
| Maximum, Internal Raw Capacity | 84 TB (14 TB HDD x 6) (Capacity may vary by RAID types) |
| Maximum Raw Capacity with Expansion Units | 224 TB (84 TB + 14 TB x 10) (Capacity may vary by RAID types) |
| Maximum Single Volume Size | 108 TB |
| Hot Swappable Drives | Yes |
| EXTERNAL PORTS | |
| RJ-45 1GbE LAN Port | 4 (with Link Aggregation / Failover support) |
| USB 3.0 Port | 3 |
| eSATA Port | 2 |
| PCIe | |
| PCIe Expansion | 1 x Gen3 x8 slot (black, x4 link) |
| Add-in-card support | |
| APPEARANCE | |
| Size (Height x Width x Depth) | 166 mm x 282 mm x 223 mm |
| Weight | 5.05 kg |
| OTHERS | |
| System Fan | 92 mm x 92 mm x 2 pcs |
| Fan Speed Mode | |
| Easy Replacement System Fan | Yes |
| Brightness adjustable front LED indicators | Yes |
| Power Recovery | Yes |
| Noise Level | 23.7 dB(A) |
| Scheduled Power On/Off | Yes |
| Wake on LAN/WAN | Yes |
| Power Supply Unit / Adapter | 250W |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 HZ, Single Phase |
| Power Consumption | 56.86 W (Access) 25.76 W (HDD Hibernation) |
| British Thermal Unit | 194.01 BTU/hr (Access) 87.9 BTU/hr (HDD Hibernation) |
| ENVIRONMENT TEMPERATURE | |
| Operating Temperature | 0°C to 40°C 32°F to 104°F |
| Storage Temperature | -20°C to 60°C -5°F to 140°F |
| Relative Humidity | 5% to 95% RH |
| Certification | |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: DS1618+
Weight: 12 lb
Warranty: 3 Year Manufacturer
Brand New
The product is brand new.
3 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
