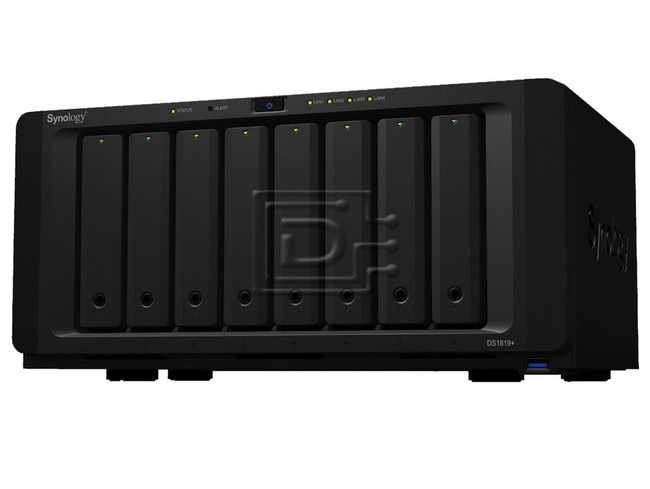

Synology DiskStation DS1819+ 8-bay NAS Server

Synology Part #/MPN: DS1819-PLUS

DiscTech Item #: SYN-DS1819-PLUS-BN-3Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Interface Types: SATA, eSATA External, USB 3.0 3.1 3.2, Ethernet RJ45

Form Factor: 3.5inx1.0in LFF Hard Drive

Encryption/SED Supported

Electrical Interface: Ethernet Gigabit - 1Gbps

On-Board Cache: 4GB

Bays/Ports/Slots: 5

Wattage/VA: 250W

Voltage: 110-240V Multi

Synology DiskStation DS1819+ 8-bay SATA Quad Core NAS Server - Diskless - Brand New

Synology DiskStation DS1819+ 8-bay SATA / Serial ATA Quad Core NAS / Network Attached Storage Server - Diskless - Brand New

Synology Diskstation DS1819+ 8-bay Network Attached Storage Server includes ...

  • 4x USB 3.0 ports
  • 2x eSATA ports
  • 4x Ethernet RJ45 1Gb LAN ports
  • 4GB DDR3L Ram, expandable up to 32GB (16 GB X 2)
  • 8 drive bays, expandable to 18 when paired with an expansion unit
  • Intel Atom C3538 Quad Core 2.1 GHz CPU
  • accepts 3.5" and 2.5" SATA hard drives and 2.5" SATA Solid State Drives.
  • Encryption capable

DiskStation DS1819+
Scalable 8-bay NAS for small- to medium-sized businesses

Ready to Grow as Your Business Thrives
DS1819+ is an 8-bay desktop NAS providing superior performance with great expandability, allowing for seamless expansion and upgradability to satisfy your growing business needs.

  • CPU
    Quad-core 2.1GHz with AES-NI encryption engine
  • Memory
    4GB DDR4, expandable up to 32GB
  • Scalability
    Up to 18 drives with two DX517
  • Performance
    2,045 MB/s sequential reading and 656 MB/s writing

Fulfills Intensive Workloads with PCIe Expansion
DS1819+ comes with four Gigabit Ethernet ports and one PCIe expansion slot, providing great configuration flexibility, thereby satisfying your intensive workload demands.

  • Instal one M.2 SSD adapter M2D18
    Boosting random IOPS with M.2 NVMe/SATA SSD cache
  • Install one 10GbE add-on card
    Breaking through data transmission bandwidth with a certified network interface
  • Four built-in Gigabit Ethernet ports
    Support for failover and Link Aggregation

Real-time collaboration on your private cloud
Office is a collaboration package combining the convenience and usability of public clouds with the data privacy and security guaranteed by private clouds. It allows you to work seamlessly together on documents and spreadsheets in a protected environment.

Digital asset protection
Powered by Synology DiskStation Manager (DSM), Synology NAS offers advanced security measures to protect against sudden data loss and potential security holes.

  • Security Advisor
    Analyzes system settings, password strength, network preferences, and removes any possible malware.
  • AppArmor
    A kernel-level enhancement that blocks malicious programs from accessing unauthorized system resources.
  • AES 256-bit encryption
    Encrypt shared folders and network data transmission to keep data from unauthorized access.
  • 2-step verification
    Prevent others from logging in to your DSM by generating a one-time password (OTP) on your mobile device. Trust Level
    Customize the trust level in Package Center to avoid installing packages from untrusted sources, safeguarding your NAS from unknown or tampered package files.

Ultimate Backup Solution
DS1819+ integrates various backup applications to safeguard your important data on any device with an intuitive user interface and durable storage technologies.

  • Active Backup for Business
    Centralize backup tasks for VMware, Windows, and file servers. Restore whatever you want fast and reliably when needed.
  • Hyper Backup
    Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.
  • Desktop Backup
    Safeguard your PC with Cloud Station Backup. Effortlessly back up data stored on macOS to Synology NAS with Time Machine.
  • Active Backup for Office 365 / G Suite
    On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology.

Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.

Powered by Synology DSM

  • DSM UI
    Award-winning operating system with an intuitive user interface and powerful capabilities.
  • High Availability
    Ensures seamless service transition between clustered servers in the event of a server failure.
  • Public Cloud Integration
    Backup and synchronize data easily between your public cloud accounts and your NAS.
  • Snapshot Replication
    Provides schedulable and instantaneous data protection for shared folders and virtual machines on iSCSI LUNs in the event of disaster.
  • Drive
    A versatile solution for file management and synchronization.
  • Security
    Comprehensive built-in security tools are constantly updated to tackle evolving threats and protect your devices.

Model NumberDS1819+/DS1819-PLUS
CPU ModelIntel Atom C3538
CPU Architecture64-bit
CPU FrequencyQuad Core 2.1 GHz
Hardware Encryption EngineYes
System Memory4 GB DDR4
Memory Module Pre-installed4 GB (4 GB x 1)
Total Memory Slots2
Memory Expandable up to32 GB (16 GB x 2)
Drive Bay(s)8
Maximum Drive Bays with Expansion Unit18
M.2 Drive Slots2 (NVMe)
Compatible Drive Type
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
  • Maximum, Internal Raw Capacity112 TB (14 TB HDD x 8) (Capacity may vary by RAID types)
    Maximum Raw Capacity with Expansion Units252 TB (112 TB H+ 14 TB drive x 10) (Capacity may vary by RAID types)
    Maximum Single Volume Size108 TB
    Hot Swappable DrivesYes
    RJ-45 1GbE LAN Port4 (with Link Aggregation / Failover support)
    USB 3.0 Port4
    eSATA Port2
    PCIe Expansion1 x Gen3 x8 slot (black, x4 link)
    Add-in-card support
  • M2D18 - Dual M.2 SATA/NVMe SSD adapter card for SSD cache
  • PCIe Network Interface Card
    Size (Height x Width x Depth)166 mm x 343 mm x 243 mm
    Weight6 kg
    System Fan120 mm x 120 mm x 2 pcs
    Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
  • Easy Replacement System FanYes
    Brightness adjustable front LED indicatorsYes
    Power RecoveryYes
    Noise Level22.2 dB(A)
    Scheduled Power On/OffYes
    Wake on LAN/WANYes
    Power Supply Unit / Adapter250W
    AC Input Power Voltage100V to 240V AC
    Power Frequency50/60 HZ, Single Phase
    Power Consumption
  • 66.96 W (Access)
  • 29.39 W (HDD Hibernation)
  • British Thermal Unit
  • 228.63 BTU/hr (Access)
  • 100.35 BTU/hr (HDD Hibernation)
    Operating Temperature
  • 0°C to 40°C
  • 32°F to 104°F
  • Storage Temperature
  • -20°C to 60°C
  • -5°F to 140°F
  • Relative Humidity5% to 95% RH
  • FCC
  • CE
  • BSMI
  • EAC
  • VCCI
  • CCC
  • RCM
  • KC

  • Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Alternate MPNs: DS1819+

    Weight: 14 lb

    Warranty: 3 Year Manufacturer

    Brand New

    Condition Levels Explained

    The product is brand new.

    3 Year Manufacturer Warranty

    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.
