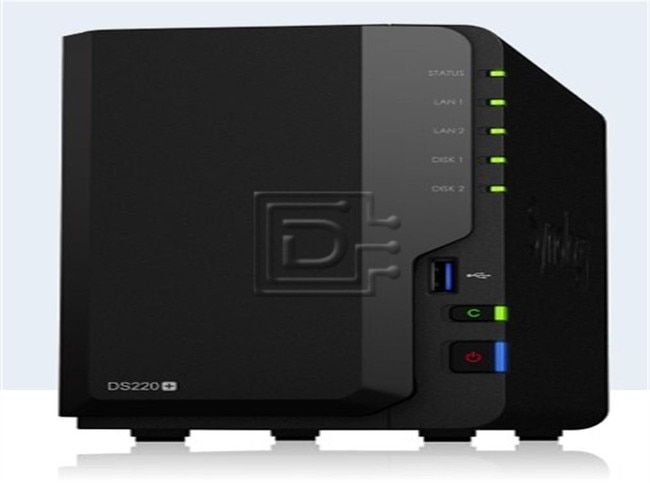

Synology DiskStation DS220-PLUS NAS Server

Synology Part #/MPN: DS220+

DiscTech Item #: SYN-DS220-PLUS-BN-2Y

  • Special Order - Call for Lead Time
    Special Order - Call for Lead Time

    This item has a variable lead time for fulfilment. Please call us to discuss. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.


Interface Types: SATA, eSATA External, USB 3.0 3.1 3.2, Ethernet RJ45

Form Factor: 3.5inx1.0in LFF Hard Drive

Encryption/SED Supported

Electrical Interface: Ethernet Gigabit - 1Gbps

On-Board Cache: 2GB

Bays/Ports/Slots: 2

Wattage/VA: 60W

Voltage: 110-240V Multi

Synology DiskStation DS220+ 2-Bay SATA Dual Core AES-NI NAS Server - Diskless - Brand New

Synology DiskStation DS220+/ DS220-PLUS 2-Bay Serial ATA / SATA Dual Core Advanced Encryption Standard New Instructions / AES-NI Network-Attached Storage / NAS Server - Diskless - Brand New

Synology Diskstation DS220+ 2-bay Network Attached Storage Server includes ...

  • 3x USB 3.0 ports
  • 1x eSATA ports
  • 1x Ethernet RJ45 1GbE LAN ports
  • 2GB DDR3L Ram
  • 2 drive bays
  • INTEL Celeron J3355 Dual Core 2.0 burst up to 2.5 GHz CPU
  • Accepts 3.5" and 2.5" SATA hard drives and 2.5" SATA solid state drives.

DiskStation DS220+
All-around storage solution optimized to safeguard your data

Compact yet powerful storage solution
Equipped with a dual-core processor and AES-NI hardware encryption engine, DS220+ delivers exceptional file transfer speeds. Supporting real-time 4K video streaming, DS220+ is ideal not only for protecting critical data but for storing ultra-high definition media contents as well.

Model NumberDS220+/DS220-PLUS
CPU ModelIntel Celeron J4025
CPU Architecture64-bit
CPU FrequencyDual Core 2.0 burst up to 2.9 GHz
Hardware Encryption Engine (AES-NI)Yes
System Memory2 GB DDR4 non-ECC
Total Memory Slots1
Maximum Memory Capacity6 GB (2 GB + 4 GB)
Drive Bay(s)2
Compatible Drive Type3.5" SATA III / SATA II HDD
Maximum Single Volume Size108 TB
Hot Swappable DriveYes
RJ-45 1GbE LAN Port2
USB 3.2 Port2
Size (Height x Width x Depth)165 mm x 108 mm x 232.2 mm
Weight1.30 kg
System Fan92 mm x 92 mm x 1 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
  • Brightness adjustable front LED indicatorsYes
    Power RecoveryYes
    Noise Level19.3 dB(A)
    Scheduled Power On/OffYes
    Wake on LAN/WANYes
    Power Supply Unit / Adapter60W
    AC Input Power Voltage100V to 240V AC
    Power Frequency50/60 HZ, Single Phase
    Power Consumption
  • 14.69 W (Access)
  • 4.41 W (HDD Hibernation)
  • British Thermal Unit
  • 50.12 BTU/hr (Access)
  • 15.05 BTU/hr (HDD Hibernation)

  • Click here to view the manufacturer's item description/brochure

    Alternate MPNs: DS220-PLUS

    Weight: 12 lb

    Warranty: 2 Year Manufacturer

    Brand New

    Condition Levels Explained

    The product is brand new.

    2 Year Manufacturer Warranty

    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.
