Synology Part #/MPN: DS3615XS
DiscTech Item #: SYN-DS3615XS-BN-5Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: SATA, USB 3.0 3.1 3.2, Ethernet RJ45
Electrical Interface: Ethernet Gigabit - 1Gbps
On-Board Cache: 4GB
Voltage: 110-240V Multi

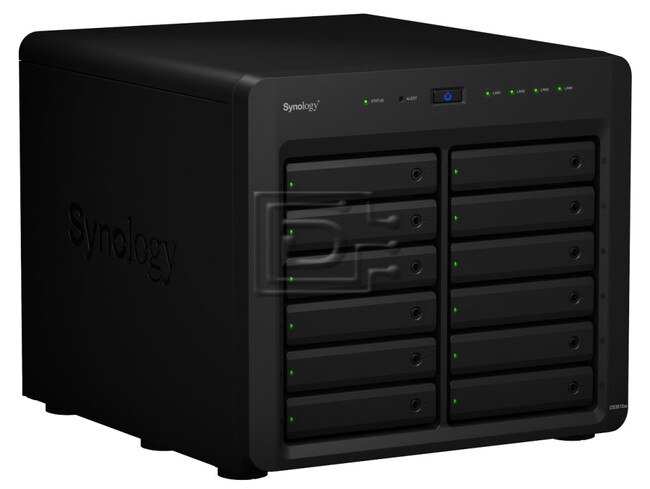

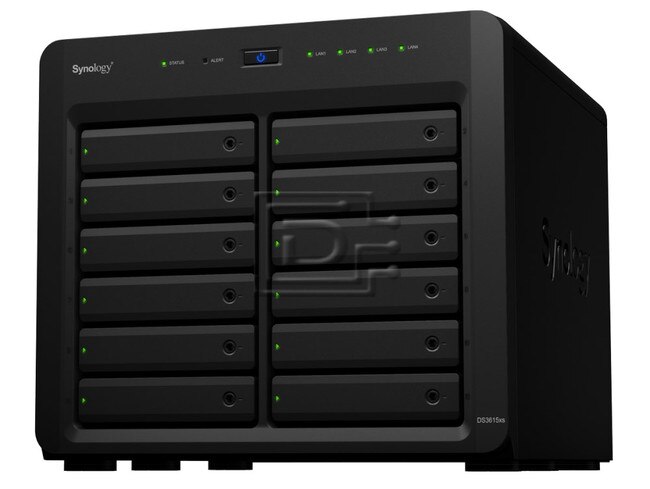

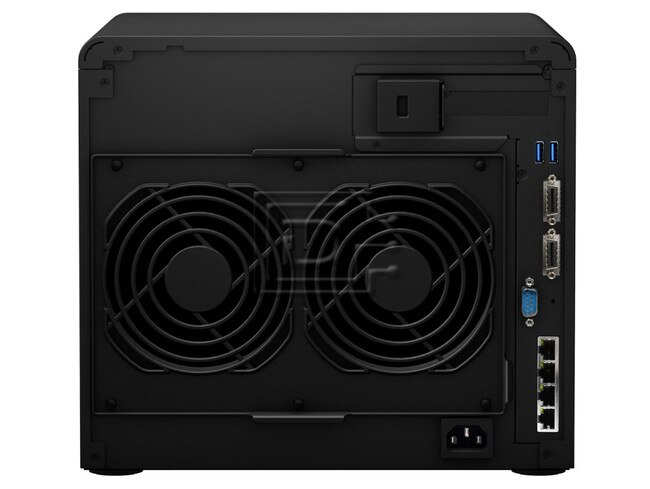

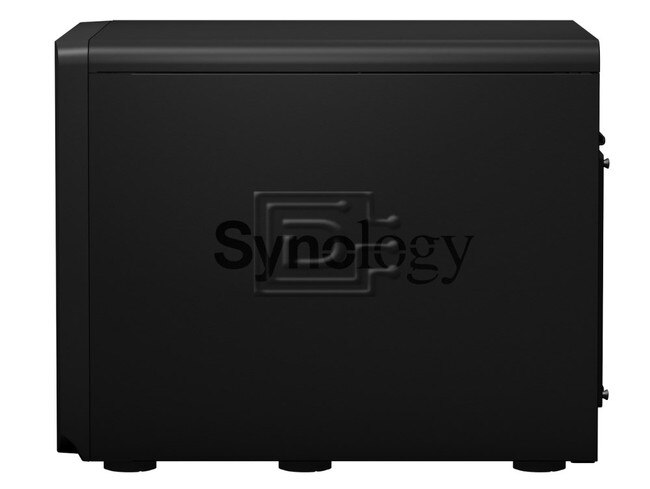

Synology DiskStation DS3615xs 12-Bay SATA Dual Core NAS Server - Brand New
Synology DiskStation DS3615xs Network Attached Storage Server includes...
- 2x USB 3.0 ports
- 4x Ethernet RJ45 1Gb LAN ports
- Intel Dual Core 3.4 GHz
- 4GB DDR3 ECC Ram, expandable up to 32GB (8 GB X 4)
- 12 drive bays, expandable to 36 when paired with an expansion unit
- accepts 3.5" and 2.5" SATA hard drives and 2.5" SATA solid state drives.
DiskStation DS3615xs Premium performance and scalability for distributed enterprises
Synology DiskStation DS3615xs provides a premium-performance NAS solution for large scale businesses that require an efficient way to centralize data protection, simplify data management, deploy virtualization solutions, and rapidly expand storage capacity with minimal time spent on setup and maintenance.
DS3615xs delivers up to 2,214.77 MB/s throughput in reading and 231,295 read IOPS1. DS3615xs is equipped with 4GB RAM and up to 32GB ECC RAM expansion support, so enterprises can guarantee data accuracy as well as superior performance.
Hardware encryption engine enhances file transfer speeds
Encrypting data is essential to a healthy security policy. Equipped with a dedicated hardware encryption engine, DS3615xs is the ideal digital locker for sensitive data; files and folders are encrypted on the fly and transferred without significant performance loss. DS3615xs delivers encrypted data transmission speeds at 2,182.16MB/s.
Robust scalability up to 36 drives
With 12 HDD trays and support for adding up to two Synology DX12152 expansion units, DS3615xs provides the ability to seamlessly expand up to 216TB3 of raw storage capacity and expand a single volume up to 108TB on the fly. When the storage capacity of DS3615xs nears it limit, expansion is easily accomplished as it supports up to 36 HDDs or SSDs. DS3615xs provides enterprises flexible capacity and balanced performance to meet the needs of varying applications and processes.
10GbE and SATA III 6Gb/s support
In addition to the default 4 Gigabit ports, DS3615xs comes with one PCI Express 3.0 x8 slot, allowing installation of 10GbE Network Interface Cards (NIC) for maximized bandwidth. Coming with native SATA III 6Gb/s support, DS3615xs ensures the optimum data process under heavy system loading.
SSD cache technology
DS3615xs enables the combination of hard drives and read/write-optimized SSD cache, boosting throughput efficiently while minimizing cost per gigabyte. With full SSD cache reading and writing support, DS3615xs offers a significant reduction in I/O latency without crippling your budget. With only a small upfront investment, businesses can benefit from significant server performance enhancement.
Award winning OS - DiskStation Manager
Synology DiskStation Manager (DSM) is a sleek, browser-based operating system running on every DiskStation and RackStation, which makes managing your Synology NAS a breeze. Featuring an intuitive user interface, DSM makes accessing and sharing your data smarter and simpler. Synology's Package Center lets you download and install useful add-on packages designed specifically for individual or business needs, meaning you can enjoy more entertainment in your life or better productivity at work.
Fit into business environments easily
With the support of Windows AD, LDAP, and Domain Trust, DS3615xs enables seamless account integration. The User Home feature can automatically create a "home" folder for every user account to minimize the administrator's effort in repeatedly creating "home" folders for all accounts. Windows ACL support on DS3615xs allows IT administrators to fine tune access controls and set up privileges to files and folders on DS3615xs through the familiar Windows user interface. With compatibility for major protocols, DS3615xs can eliminate server configuration overhead and enhance IT administrators’ efficiency.
Seamless storage solution for virtualization environments
DS3615xs provides seamless storage solutions for virtualization environments, including VMware, Citrix, and Microsoft Hyper-V. With VMware vSphere® 5 & VAAI integration, DS3615xs helps offload specific storage operations and optimizes computation power in VMware environments. Windows ODX support speeds up data manipulation as the data transfer is offloaded. iSCSI also lets SMB users consolidate storage into data center storage arrays while providing hosts with the illusion of locally-attached disks.
Unified storage system
DS3615xs enables businesses to cost-effectively manage multi-protocol data by integrating file-level (NAS) and block-level (SAN) storage into one unified storage system. Files can be shared across Windows®, Mac®, and Linux® platforms seamlessly with comprehensive network protocol support (CIFS/SMB, AFP, and NFS). DS3615xs provides a cost-effective iSCSI solution, allowing large scale businesses to consolidate storage into data center storage arrays. With thin provisioning available for file-level iSCSI LUN, you can maximize storage utilization by oversubscribing provisions and grow storage space as needed.
Protection by LUN backup, snapshot, and clone
DS3615xs enhances the ease of moving and copying data in a virtualized environment with the features - LUN Backup, LUN Snapshot, and LUN Clone. DS3615xs offers iSCSI LUN backup at storage level without extra charge. Synology LUN Clone and LUN Snapshot only take up 1/1000 of the original size which highly optimizes storage usage. In addition, Synology's LUN Snapshot lets you create up 256 snapshots per LUN using point-in-time technology without having any impact on system performance. With better support to servers under VMware vSphere or Windows environment, IT managers can expect guaranteed VM status and data consistency through application-consistent snapshots.
Synology CMS (Central Management System)
For enterprises with more than one Synology NAS server, CMS offers the flexibility and convenience for IT administrators to manage all of them from a single point of entry. Through a simple interface, you can obtain a clear overview on resource consumption and logs, helping you identify any issue right away. With group policies, CMS can do much more for your daily tasks. Once a NAS joins a group, it will automatically adopt its rules and behave as intended, without extra configuration.
Increase business productivity with cloud solutions
With comprehensive cloud solutions, DS3615xs lets you create your own private cloud easily. Cloud Station is the perfect package to sync files across multiple devices. Files can be edited in offline mode and later synced to Cloud Station, which keeps up to 32 historical versions, allowing you to restore a file back to previous version or recover deleted files. With the mobile app DS cloud, any change made to a file is automatically synced to your smartphones and tablets. For distributed enterprises, Synology's 2-way sync between different DiskStations ensures employees at different locations share the same information in real-time. IT administrators can handpick individual folders that they want to sync to different devices, manually or automatically based on file format and size. Folders synced by Cloud Station can be encrypted on DSM — no one will be able to access its content without your private key.
Ensuring business continuity & reliability
Uninterrupted availability is a critical goal for all businesses. DS3615xs offers Synology High Availability (SHA) technology which combines an active and passive server into one cluster, the former always mirrored to the latter. Shared Folder Sync can replicate data in real-time to another Synology NAS at a remote location, giving your business the Recovery Time Objective (RTO) for prompt disaster recovery. With multiple LAN ports, DS3615xs also ensures redundancy in the event of unexpected network failure.
Secure your data
DS3615xs offers advanced security measures to protect you from potential security holes. Security Advisor analyzes system settings, password strength, network preferences and removes any possible malware. AppArmor blocks malicious programs from accessing unauthorized system resources. You can also customize the trust level in Package Center to avoid installing packages from untrusted sources, safeguarding your NAS from unknown or tampered files. In addition, DS3615xs provides other security add-ons, such as AES encryption, 2-Step verification, IP block & allow list, Antivirus packages, firewall, and DoS attack prevention.
|CPU Model||INTEL Core i3-4130|
|CPU Frequency||Dual Core 3.4 GHz|
|Hardware Encryption Engine (AES-NI)||Yes|
|System Memory||4 GB DDR3 ECC|
|Memory Module Pre-installed||2 GB x 2|
|Total Memory Slots||4|
|Memory Expandable up to||32 GB (8 GB x 4)|
|Maximum Drive Bays with Expansion Unit||36|
|Compatible Type||3.5in SATA III / SATA II HDD |
2.5in SATA III / SATA II HDD
2.5in SATA III / SATA II SSD
|Maximum Internal Raw Capacity||72 TB (6 TB HDD x 12) |
(Capacity my vary by RAID types)
|Hot Swappable Drive||Yes|
|USB 3.0 Port||2|
|External Drives||EXT4 |
|Size (Height x Width x Depth)||270 mm x 300 mm x 340 mm|
|Weight||9.8 kg/22 lb|
|RJ-45 1GbE LAN Port||4 (with Link Aggregation / Failover support)|
|Wake on LAN/WAN||Yes|
|PCIe x8 Slot for Network Card||2 (at x8 mode)|
|System Fan||120 mm x 120 mm x 2 pcs|
|Fan Speed Mode||Cool Mode |
|Easy Replacement System Fan||Yes|
|Wireless Support (dongle)||Yes|
|Noise Level||27.4 dB(A)|
|Scheduled Power On/Off||Yes|
|Power Supply Unit / Adapter||500W|
|AC Input Power Voltage||100V to 240V AC|
|Power Frequency||50/60 HZ, Single Phase|
|Power Consumption||88.48 W (Access) |
43.54 W (HDD Hibernation)
|British Thermal Unit||301.90 BTU/hr (Access) |
148.56 BTU/hr (HDD Hibernation)
|Operating Temperature||5°C to 35°C |
(40°F to 95°F)
|Storage Temperature||-20°C to 60° |
(-5°F to 140°F)
|Relative Humidity||5% to 95% RH|
|Certification||FCC Class B |
CE Class B
BSMI Class B
Click here to view the manufacturer's item description/brochure
Weight: 22 lb
Warranty: 5 Year Manufacturer
The product is brand new.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
