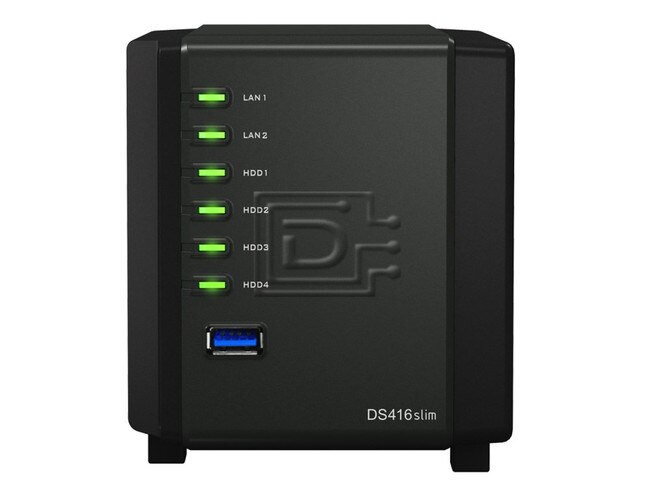

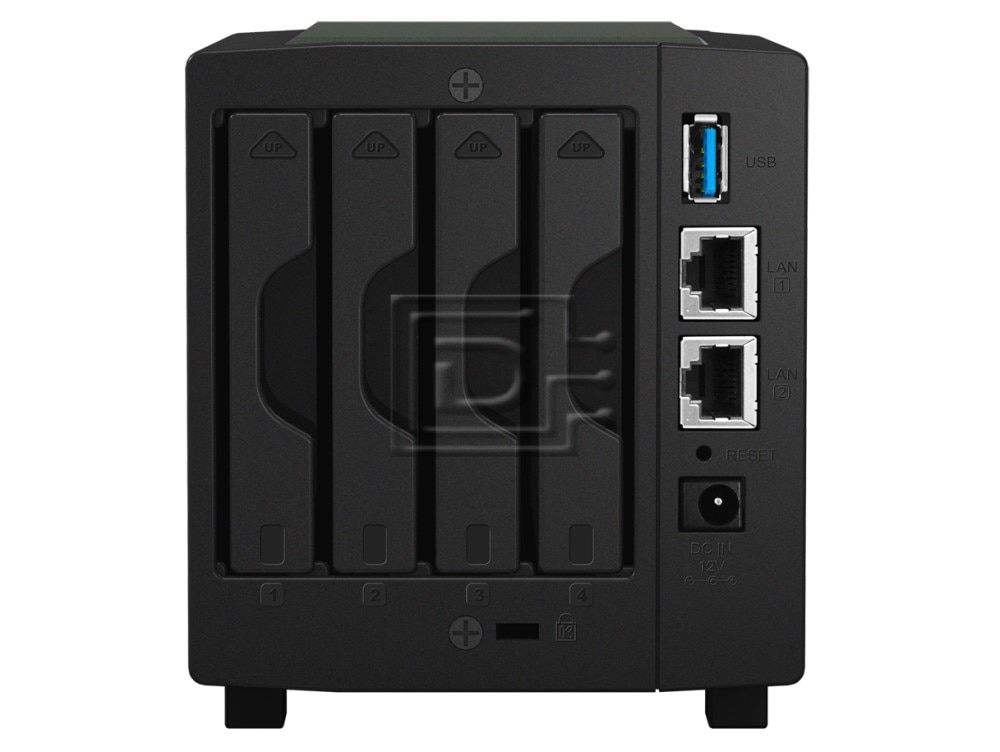

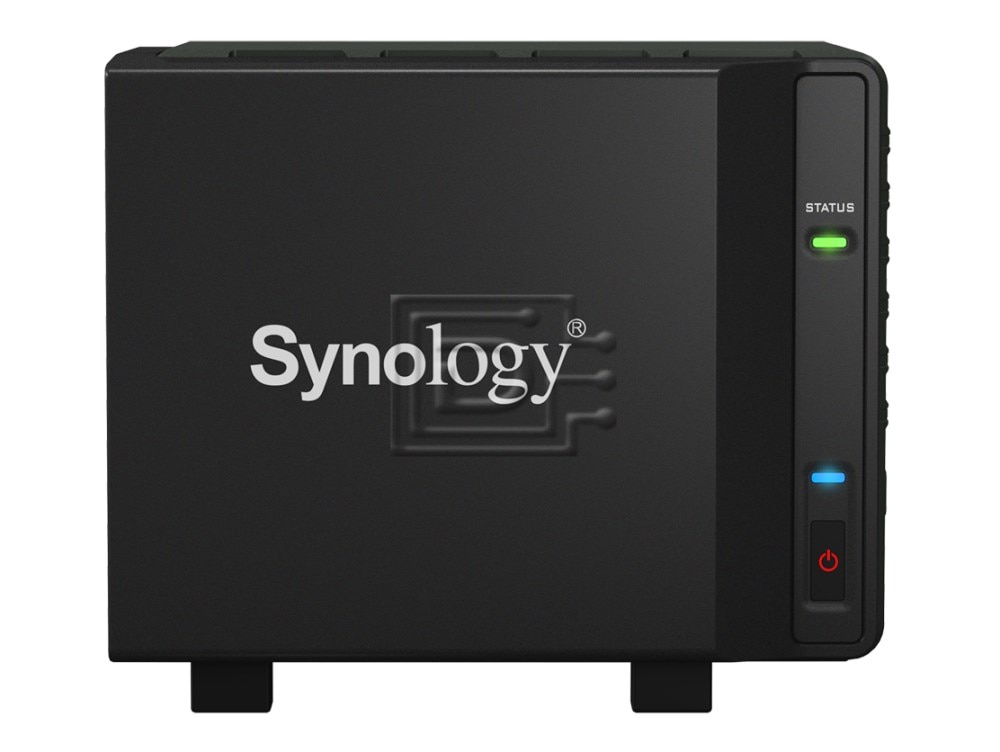

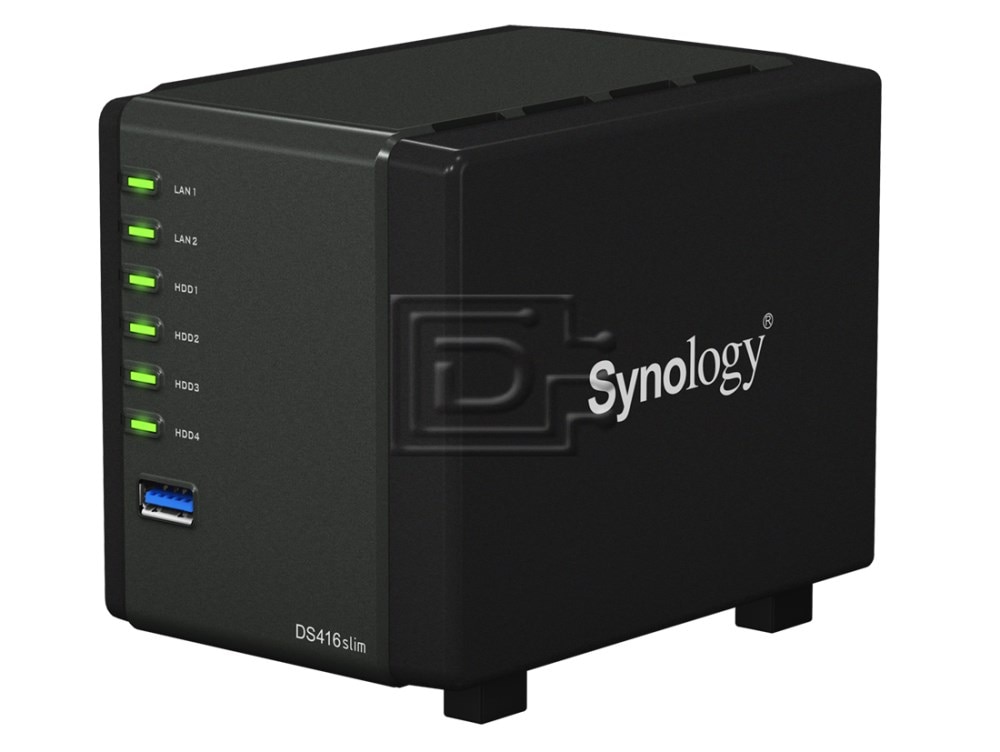

Synology DiskStation DS416SLIM NAS Server

Synology Part #/MPN: DS416SLIM

DiscTech Item #: SYN-DS416SLIM-BN-2Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Interface Types: SATA, USB 3.0 3.1 3.2, Ethernet RJ45

Form Factor: 2.5inx15mm SFF Server Drive

Encryption/SED Supported

Electrical Interface: Ethernet Gigabit - 1Gbps

On-Board Cache: 512MB

Bays/Ports/Slots: 4

Wattage/VA: 30W

Voltage: 110-240V Multi

Synology DiskStation DS416SLIM 2.5in 4-Bay SATA Dual Core Compact NAS Server - Diskless - Brand New

Synology DiskStation DS416SLIM 2.5in 4-bay Network Attached Storage Server includes ...

  • 2x USB 3.0 ports
  • 2x Ethernet RJ45 1GbE LAN ports
  • 512MB DDR3 Ram
  • 4 drive bays
  • Marvell Armada 385 88F6820 Dual Core 1.0 GHz CPU
  • Accepts 2.5" SATA hard drives (Up to 12.5mm drive height) and 2.5" SATA solid state drives
  • Encryption capable

DiskStation DS416slim Small size, huge possibilities.
DS416slim is a 4-bay NAS server for 2.5" drives, aimed at home users and professionals in need of a compact, power-saving, easily transportable storage solution. Accommodating up to four disks, it provides all essential services to increase productivity at work or serve as a comprehensive media center solution.

Model NumberDS416SLIM
CPU ModelMarvell Armada 385 88F6820
CPU Architecture32-bit
CPU FrequencyDual Core 1.0 GHz
Floating PointYes
Hardware Encryption EngineYes
System Memory512 MB DDR3
Drive Bay(s)4
Compatible Drive Type
  • Maximum, Internal Raw Capacity8 TB (2 TB HDD x 4) (Capacity may vary by RAID types)
    Maximum Single Volume Size16 TB
    Hot Swappable DriveYes
    USB 3.0 Port2
    Size (Height x Width x Depth)120 mm x 105 mm x 142 mm
    Weight0.66 kg
    RJ-45 1GbE LAN Port2 (with Link Aggregation / Failover support)
    Wake on LAN/WANYes
    System Fan60 mm x 60 mm x 1 pcs
    Fan Speed Mode
  • Cool Mode
  • Quiet Mode
  • Lower-power Mode
  • Easy Replacement System FanYes
    Wireless Support (dongle)Yes
    Brightness adjustable front LED indicationsYes
    Power RecoveryYes
    Noise Level20.3 dB(A)
    Scheduled Power On/OffYes
    Power Supply Unit / Adapter30W
    AC Input Power Voltage100V to 240V AC
    Power Frequency50/60 HZ, Single Phase
    Power Consumption
  • 17.17 W (Access)
  • 11.63 W (HDD Hibernation)
  • British Thermal Unit
  • 58.63 BTU/hr (Access)
  • 39.71 BTU/hr (HDD Hibernation)

  • Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Weight: 3 lb

    Warranty: 2 Year Manufacturer

    Brand New

    Condition Levels Explained

    The product is brand new.

    2 Year Manufacturer Warranty

    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.
