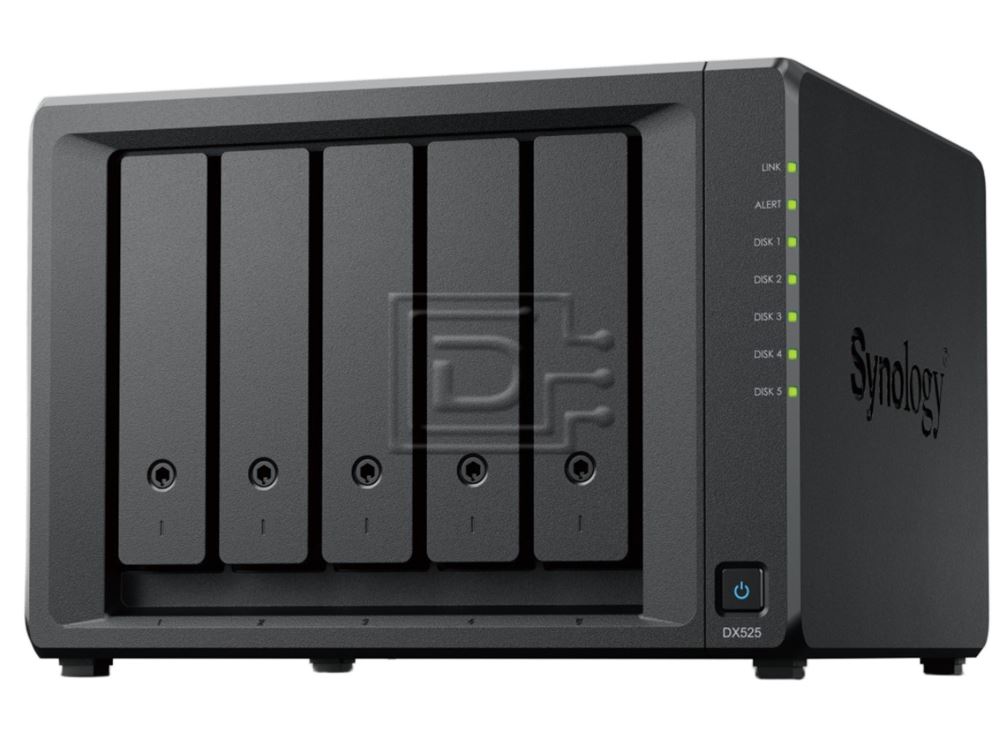

Synology DiskStation DX525 5-Bay SATA NAS Expansion Unit
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 3 Year ManufacturerWarrantyProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
| Interface Types: | eSATA External |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SATA 600 - 6Gbps |
| Bays/Ports/Slots: | 5 |
| Voltage: | 110-240V Multi |
Description
Synology DiskStation DX525 5-Bay SATA NAS Expansion Unit - Brand New
Synology DiskStation DX525 5-Bay SATA NAS Expansion Unit
Compatible with
- DS1825+
- DS1525+
DS725+
- DS925+
Expansion Unit DX525
Seamless capacity expansion for Synology DiskStation
Storage expansion without downtime
Easily add five additional drive bays to your Synology DiskStation. The DX525 supports both 2.5" and 3.5" SATA drives and features plug-and-play setup and hot-swap capability for uninterrupted operation during capacity expansion.
Dedicated local backup solution
The Synology DX525 provides a dedicated local backup solution for your Synology DiskStation. When configured as a separate volume, it safeguards data on its local disks in case of system failure.
Online volume expansion
Managed through the host NAS's DiskStation Manager (DSM), the DX525's additional bays are immediately available upon connection. On-the-fly volume expansion ensures uninterrupted service and storage expansion on the host.
Performance backed by Synology drives
Designed for Synology systems, Synology drives deliver consistent performance and unmatched reliability for your deployments.
Synology has you covered
The DX525 is backed by Synology's three-year limited warranty including technical support and hardware replacement services. Extend your coverage to five years and gain access to premium services that accelerate recovery in the event of a disaster with Extended Warranty Plus.
Compatibility
Supported models ...
| DS1825+ | DS1525+ | DS925+ | DS725+ |
Specifications
| SPECIFICATIONS | |
|---|---|
| Model Number | DX525 |
| HARDWARE SPECIFICATOINS | |
| STORAGE | |
| EXTERNAL PORTS | |
| APPEARANCE | |
| POWER | |
| OTHERS | |
| Applied Models |
|
| Drive Bay(s) | 5 |
| Compatible Drive Type | 3.5in SATA III / SATA II HDD 2.5in SATA III / SATA II HDD 2.5in SATA III / SATA II SSD |
| Maximum Internal Raw Capacity | 60 TB (12 TB HDD x 5) (Capacity may vary by RAID types) |
| Hot Swappable Drive | Yes |
| RAID Management through Synology DSM | Yes |
| eSATA port | 1 |
| Size (Height x Width x Depth) | 157 mm x 248 mm x 233 mm |
| Weight | 3.91 kg/ 8.62 lb |
| Power Recovery | Synchronized with the Synology DiskStation |
| Power Supply Unit / Adapter | 200W |
| AV Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption |
|
| British Thermal Unit |
|
| System Fan | 80 mm x 80 mm x 2 pcs |
| Easy Replacement System Fan | Yes |
| Noise Level | 21.5 dB(A) |
| Certification |
|
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 10 lb
Warranty: 3 Year Manufacturer
Condition
The product is brand new.
Warranty
3 Year Manufacturer Warranty
