Synology Diskstation DS1815-PLUS NAS Server

Synology Part #/MPN: DS1815-PLUS

DiscTech Item #: SYN-DS1815-PLUS-BN-3Y


$999.99
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$999.99

Interface Types: SATA, eSATA External, USB 3.0 3.1 3.2, Ethernet RJ45

Encryption/SED Supported

Electrical Interface: Ethernet Gigabit - 1Gbps

On-Board Cache: 2GB

Bays/Ports/Slots: 8

Wattage/VA: 250W

Voltage: 110-240V Multi

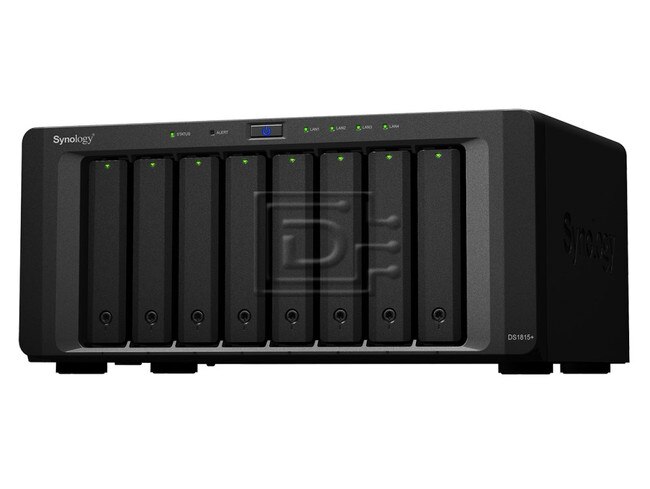

Synology Diskstation DS1815+ 8-bay SATA Quad Core AES-NI NAS Server - Brand New

Synology Diskstation DS1815+ 5-bay Network Attached Storage Server includes ...

  • 4x USB 3.0 ports
  • 2x eSATA ports
  • 4x Ethernet RJ45 1Gb LAN ports
  • 2GB DDR3 Ram, expandable up to 6GB (2 GB X 4GB)
  • 8 drive bays, expandable to 18 when paired with an expansion unit
  • INTEL Atom C2538 Quad Core 2.4 GHz CPU
  • accepts 3.5" and 2.5" SATA hard drives and 2.5" SATA solid state drives.

DiskStation DS1815+ Ultra-performance NAS optimized for intensive tasks and encryption
Featuring a quad-core processor, hardware encryption engine, and flawless software integration, DS1815+ is a powerful, expandable 8-bay NAS server that delivers outstanding speed and accelerated data encryption. Easily scalable, the DS1815+ can be equipped with up to 6GB of DDR3 RAM and host up to 108TB of raw capacity with two Synology DX513 units.

Quad-core CPU for blazing-fast performance
DS1815+ is powered by a quad-core CPU running at 2.4 GHz. Combined with 2GB of DDR3 RAM (expandable to 6GB), it delivers blazing-fast performance over 450 MB/s reading and 412 MB/s writing. That much power makes it easy for DS1815+ to multitask and provide consistently high throughput to all connected clients.

Fast encrypted data transmission with AES-NI
Encrypting data is essential to a healthy security policy. Equipped with a dedicated hardware encryption engine, DS1815+ is the ideal digital locker for sensitive data; files and folders are encrypted on the fly without any perceived performance loss. DS1815+ delivers encrypted data transmission speeds over 450 MB/s reading and 190 MB/s writing.

Quad LAN ports for failover and Link Aggregation support
Equipped with four Ethernet ports featuring failover and Link Aggregation support, DS1815+ ensures continual network uptime even if LAN connection malfunction occurs on one port, reducing the chance of service disruption and costly downtime. Link Aggregation improves connection speeds beyond the limits of a single network cable or port.

Robust scalability up to 108TB
As your data storage needs grow, DS1815+ can be connected to dedicated DX513 expansion units for additional storage on the fly, growing capacity with minimal effort. With two DX513 expansion units connected through specially designed eSATA connectors, raw capacity can be as high as 108TB

Easy installation, hassle-free maintenance
Easy installation and hot-swappable hard drive support ensures easy maintenance and continuous service uptime should a hard drive need replacement. In addition, DS1815+ incorporates a passive cooling design to reduce dependency on the dedicated processor cooling fan, thus mitigating any critical point of failure. When the system detects a fan failure, the built-in redundancy mechanism ensures continuous operation until the replacement fan arrives.

USB 3.0 and eSATA ensure speedy transfers to external storage
DS1815+ boasts USB 3.0 and eSATA ports to connect to various kinds of external storage devices, while ensuring fast and efficient file transfer speeds. Support for USB 3.0 offers transfer speeds of up to 5 Gbps (about 10 times faster than USB 2.0), meaning it takes less time to transfer data to external hard drives, while also consuming less power.

Award winning OS - DiskStation Manager
Synology DiskStation Manager (DSM) is a sleek, browser-based operating system running on every DiskStation and RackStation, which makes managing your Synology NAS a breeze. Featuring an intuitive user interface, DSM makes accessing and sharing your data smarter and simpler. Synology's Package Center lets you download and install useful add-on packages designed specifically for individual or business needs, meaning you can enjoy more entertainment in your life or better productivity at work.

Seamless storage solution for virtualization environments
DS1815+ provides seamless storage solutions for virtualization environments, including VMware, Citrix, and Microsoft Hyper-V. With VMware vSphere® 5 & VAAI integration, DS1815+ helps offload specific storage operations and optimizes computation power in VMware environments. Windows ODX support speeds up data manipulation as the data transfer is offloaded. iSCSI also lets SMB users consolidate storage into data center storage arrays while providing hosts with the illusion of locally-attached disks.

Fit into business environments easily
With the support of Windows AD, LDAP, and Domain Trust, DS1815+ enables seamless account integration. The User Home feature can automatically create a "home" folder for every user account to minimize the administrator's effort in repeatedly creating "home" folders for all accounts. Windows ACL support on DS1815+ allows IT administrators to fine tune access controls and set up privileges to files and folders on DS1815+ through the familiar Windows user interface. With compatibility for major protocols, DS1815+ can eliminate server configuration overhead and enhance IT administrators’ efficiency.

Optimize storage management
With Synology's Storage Manager, DS1815+ allows for flexible storage deployment and utilization. You can optimize RAID configuration with Synology Hybrid RAID (SHR) while providing redundant data protection. Other features such as multiple volumes on single RAID and Global Hot Spare also greatly enhance management efficiency and fit deployment of any kind.

Synology CMS (Central Management System)
For enterprises with more than one Synology NAS server, CMS offers the flexibility and convenience for IT administrators to manage all of them from a single point of entry. Through a simple interface, you can obtain a clear overview on resource consumption and logs, helping you identify any issue right away. With group policies, CMS can do much more for your daily tasks. Once a NAS joins a group, it will automatically adopt its rules and behave as intended, without extra configuration.

All-in-one server
With just one DS1815+, it's possible to handle a vast amount of tasks. DS1815+ helps your company gain a competitive edge by acting as your multi-function server. Directory Server provides LDAP service, while DNS and DHCP packages allow you to host a domain name server and automate network IP assignment at no extra cost. With Synology's Proxy Server, you can regulate content access and monitor who can access which website while saving bandwidth. You can host up to 30 websites with Web Station, safeguard the office environments with Surveillance Station, send and receive mails using your own email domain with Mail Station, share printing capability with Printer Server, make DS1815+ act as a VPN server to access company’s resources remotely, and more.

Ensuring business continuity
Uninterrupted availability is a critical goal for all businesses. DS1815+ supports Synology High Availability (SHA) technology which combines an active and passive server into one cluster, the former always mirrored to the latter. The Heartbeat mechanism detects regular "heartbeats" between the two servers. If the main server encounters unexpected downtime, the passive server immediately takes over. With multiple LAN ports, DS1815+ also ensures redundancy in the event of unexpected network failure.

Effective backup solution
Synology DS1815+ can serve as a centralized backup target. Whether you are a Windows or Mac user, you can back up everything on your computer directly to Synology NAS using Cloud Station. Whenever you modify a file, the changes are backed up to DS1815+ automatically. Mac users also enjoy native Apple® Time Machine support. You can also back up data from your DS1815+ to another DiskStation, rsync servers, external drives, or even Amazon® S3, Glacier cloud service, Microsoft Azure, SFR, and hicloud. "Backup & Replication" allows you to schedule backup tasks and restore the server to any particular point in time, while minimizing storage consumption and processing time by saving only the specific data block that has been changed between versions.

Increase business productivity with cloud solutions
With comprehensive cloud solutions, DS1815+ lets you create your own private cloud easily. Cloud Station is the perfect package to sync files across multiple devices. Files can be edited in offline mode and later synced to Cloud Station, which keeps up to 32 historical versions, allowing you to restore a file back to previous version or recover deleted files. With the mobile app DS cloud, any change made to a file is automatically synced to your smartphones and tablets. For distributed enterprises, Synology's 2-way sync between different DiskStations ensures employees at different locations share the same information in real-time. IT administrators can handpick individual folders that they want to sync to different devices, manually or automatically based on file format and size. Folders synced by Cloud Station can be encrypted on DSM — no one will be able to access its content without your private key.

Secure your data
DS1815+ offers advanced security measures to protect you from potential security holes. Security Advisor analyzes system settings, password strength, network preferences and removes any possible malware. AppArmor blocks malicious programs from accessing unauthorized system resources. You can also customize the trust level in Package Center to avoid installing packages from untrusted sources, safeguarding your NAS from unknown or tampered files. In addition, DS1815+ provides other security add-ons, such as AES encryption, 2-Step verification, IP block & allow list, Antivirus packages, firewall, and DoS attack prevention.

SPECIFICATIONS
Model NumberDS1815+/DS1815-PLUS
CPU
CPU ModelINTEL Atom C2538
CPU FrequencyQuad Core 2.4 GHz
Floating PointYes
Hardware Encryption Engine (AES-NI)Yes
MEMORY
System Memory2 GB DDR3
Memory Module Pre-installed2 GB x 1
Total Memory Slots2
Memory Expandable up to6 GB (2 GB + 4 GB)
STORAGE
Drive Bay(s)8
Maximum Drive Bays with Expansion Unit18
Compatible Drive Type3.5" SATA III / SATA II HDD
2.5" SATA III / SATA II HDD
2.5" SATA III / SATA II SSD
Maximum, Internal Raw Capacity64 TB (8 TB HDD x 8) (Capacity may vary by RAID types)
Hot Swappable DriveYes
EXTERNAL PORTS
USB 3.0 Port4
eSATA Port2
FILE SYSTEM
Internal DrivesEXT4
External DrivesEXT4
EXT3
FAT
NTFS
HFS+
APPEARANCE
Size (Height x Width x Depth)157 mm x 340 mm x 233 mm
Weight5.29 kg
OTHERS
RJ-45 1GbE LAN Port4 (with Link Aggregation / Failover support)
Wake on LAN/WANYes
System Fan120 mm x 120 mm x 20 pcs
Fan Speed ModeCool Mode
Quiet Mode
Easy Replacement System FanYes
Wireless Support (dongle)Yes
Noise Level24.3 dB(A)
Power RecoveryYes
Scheduled Power On/OffYes
Power Supply Unit / Adapter250W
AC Input Power Voltage100V to 240V AC
Power Frequency50/60 HZ, Single Phase
Power Consumption45.88 W (Access)
25.23 W (HDD Hibernation)
British Thermal Unit156.55 BTU/hr (Access)
86.09 BTU/hr (HDD Hibernation)
ENVIRONMENT TEMPERATURE
Operating Temperature5°C to 35°C
(40°F to 95°F)
Storage Temperature-20°C to 60°C
(-5°F to 140°F)
Relative Humidity5% to 95% RH
CertificationFCC Class B
CE Class B
BSMI Class B

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: DS1815+

Weight: 11.8 lb

Warranty: 3 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

3 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
