Synology Part #/MPN: DS1817-PLUS
DiscTech Item #: SYN-DS1817-PLUS-BN-3Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:3 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: SATA, eSATA External, USB 3.0 3.1 3.2, Ethernet RJ45
Encryption/SED Supported
Electrical Interface: Ethernet Gigabit - 1Gbps
On-Board Cache: 8GB
Bays/Ports/Slots: 8
Wattage/VA: 250W
Voltage: 110-240V Multi

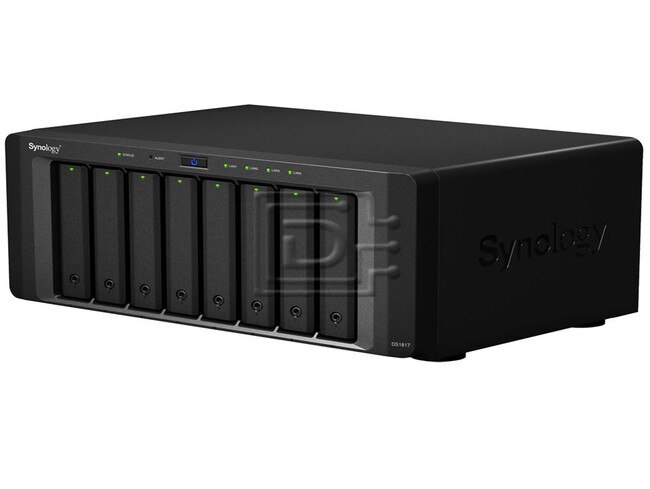

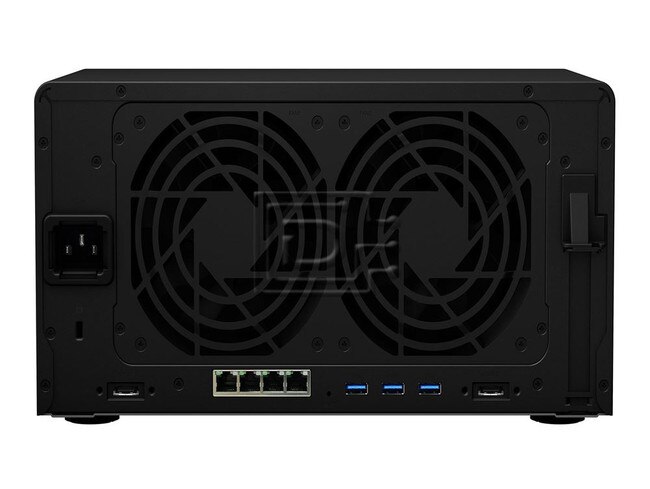

Synology Diskstation DS1817+ 8-bay SATA Quad Core AES-NI NAS Server - Brand New
Synology Diskstation DS1817+ 8-bay Network Attached Storage Server includes ...
- 4x USB 3.0 ports
- 2x eSATA ports
- 4x Ethernet RJ45 1Gb LAN ports
- 8GB DDR3 Ram, expandable up to 16GB (8 GB X 2)
- 8 drive bays, expandable to 18 when paired with an expansion unit
- INTEL Atom C2538 Quad Core 2.4 GHz CPU
- accepts 3.5" and 2.5" SATA hard drives and 2.5" SATA solid state drives.
DiskStation DS1817+
High performance NAS optimized for encryption and intensive tasks
Centralized storage solution with outstanding performance
Synology DiskStation DS1817+ is a 8-bay NAS powered by a quad-core CPU with AES-NI hardware encryption engine. Coming with quad 1GbE LAN ports, it can be installed with a 10GbE network interface card (NIC) or a dual M.2 SSD adapter card, thereby enhancing network speeds or boosting performance with SSD cache.
Supercharge your storage with speedy performance
Equipped with dual-channel memory and a PCIe slot, DS1817+ supports installing the dual M.2 SSD adapter card, M2D17, or the 10GbE NIC, for high-IOPS system cache and ultra-fast data transmission respectively.
Btrfs: Next generation storage efficiency
Btrfs file system introduces the most advanced storage technologies to meet the management needs of modern large scale businesses:
- Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
- Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
- File or folder level data restoration makes data recovery fast and flexible
- Automatic file self-healing detects and recovers corrupted files without user intervention.
Ultimate file management and sharing
File Station is a web-based, fast and secure management tool built to allow easy, drag-and-drop operation without requiring any complex setup on Mac or PC. Advanced search and filtering tools allow for easy organization and sharing of files with just a link. Supports SMB, FTP, AFP, NFS, WebDAV, compatible with any environment.
Real-time collaboration on your private cloud
Office is a collaboration package combining the convenience and usability of public clouds with the data privacy and security guaranteed by private clouds. It allows you to work seamlessly together on documents and spreadsheets in a protected environment.
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
| Synology Disk Station NAS Server | |
|---|---|
| Model Number | DS1817-PLUS |
| Alt Model Number | DS1817+ |
| Bay Provided | |
| Free Qty | |
| Total Qty | 8 |
| Cable Details | |
| Connectivity Details Type | Network cable |
| Included Qty | 2 |
| Chassis | |
| Installed Devices Modules Qty | 0 |
| Supported Devices Modules Qty | 8 |
| Dimensions & Weight | |
| Depth | 9.6 in |
| Height | 6.5 in |
| Weight | 13.23 lbs |
| Width | 13.5 in |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 104 °F |
| Min Operating Temperature | 41 °F |
| Expansion Bays | |
| Form Factor | 2.5" / 3.5" |
| Form Factor (metric) | 6.4 cm / 8.9 cm |
| Type | Hot-swap |
| Header | |
| Brand | Synology |
| Compatibility | Mac , PC |
| Manufacturer | Synology |
| Model | DS1817+ / DS1817-PLUS |
| Product Line | Synology Disk Station |
| Miscellaneous | |
| Color Category | Black |
| Compliant Standards | BSMI Class B , FCC Class B certified , RoHS |
| Features | Built-in 2 cooling fans , Hardware encryption , Wake on LAN |
| TAA Compliant | Yes |
| Connectors | |
| Networking | |
| Compliant Standards | DDLNA CERTIFIED , UPnP |
| Data Link Protocol | Ethernet , Fast Ethernet , Gigabit Ethernet |
| Features | Backup server , BitTorrent Client , DHCP server , DLNA Media Server , DNS server , E-mail alert , E-mail server , eMule client , File sharing , Firewall protection , Firmware upgradable , FTP server , iTunes server , LDAP support , MySQL server , Print server , RADIUS support , Samba support , SMS alert , SSH support , Surveillance station , Syslog support , UPnP Media Server , VPN Server , Web server |
| Host Connectivity (for SD) | Gigabit Ethernet |
| Network Services Compatibility | Apple File Protocol (AFP) , Calendaring Extensions to WebDAV (CalDAV) , File Level Security (ACLs) , FTP , Microsoft Active Directory (AD) , Microsoft CIFS , Network File System (NFS) , Web-based Distributed Authoring and Versioning (WebDAV) |
| Network Transport Protocol | FTP , iSCSI , L2TP , PPTP , TCP/IP |
| Remote Management Protocol | SNMP , SSH , Telnet |
| OS Provided | |
| Storage Operating System | Synology DiskStation Manager |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Nominal Voltage | AC 120/230 V |
| Power Provided | 250 Watt |
| Type | Internal power supply |
| Processor | |
| Clock Speed | 2.4 GHz |
| Installed Qty | 1 |
| Manufacturer | Intel |
| Number of Cores | Quad-Core |
| Processor Number | C2538 |
| Type | Atom |
| RAM | |
| Installed Size | 8 GB |
| Max Supported Size | 8 GB |
| Technology | DDR3 SDRAM |
| Security DVR | |
| IP Cameras Supported | 40 |
| Software | |
| Type | Synology Assistant , Synology Data Replicator |
| Storage | |
| iSCSI support | iSCSI |
| Max Supported Capacity | 80 TB |
| Network Storage Type | NAS Server |
| Total Storage Capacity | 0 GB |
| Storage Controller | |
| Interface Type | Serial ATA-600 |
| RAID Level | JBOD , RAID 0 , RAID 1 , RAID 10 , RAID 5 , RAID 6 |
| Type | RAID |
| System Requirements | |
| Min Operating System | Apple MacOS X 10.5 or later , Microsoft Windows XP or later , Ubuntu 9.04 or later |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 14 lb
Warranty: 3 Year Manufacturer
Brand New
The product is brand new.
3 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
