Synology Part #/MPN: DS2015XS
DiscTech Item #: SYN-DS2015XS-BN-5Y
- Brand New
- Warranty:5 Year Manufacturer
- Low Stock:Call for ETA
Interface Types: SATA, USB 3.0 3.1 3.2, Ethernet RJ45
Electrical Interface: Ethernet Gigabit - 1Gbps
On-Board Cache: 4GB
Bays/Ports/Slots: 8
Wattage/VA: 250W
Voltage: 110-240V Multi

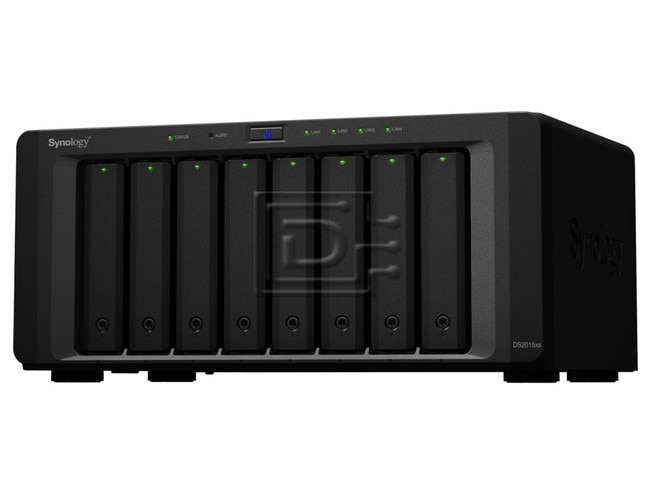

Synology Diskstation DS2015XS 8-bay SATA Quad Core NAS Server - Brand New
Synology Diskstation DS2015XS 8-bay Network Attached Storage Server includes ...
- 2x USB 3.0 ports
- 2x Ethernet RJ45 1Gb LAN ports
- 4GB DDR3 Ram, expandable up to 8GB (4 GB X 2)
- a maximum of 20 drive bays when paired with an expansion unit
- Annapurna Labs Alpine Quad Core 1.7 GHz CPU
- accepts 3.5" and 2.5" SATA hard drives and 2.5" SATA solid state drives.
DiskStation DS2015xs Promising breakthrough performance with affordability
Benefiting from its built-in 10GbE SFP+ LAN ports, the quad-core Synology NAS offers SMBs ultra-fast performance required for the rigorous data processing and virtualization tasks that our future demands.
Unparalleled performance within and beyond its tier
Powered by an all-new quad-core CPU and a RAM module expandable to 8GB (coming with 4GB by default), DS2015xs delivers over 1635.12 MB/s throughput.1 The extraordinary performance far outshines other NAS servers in its price range, and allows DS2015xs to deal with considerable amount of data processing requests from business' critical services.
Built-in 10GbE SFP+ LAN ports and SATA III 6Gb/s support
DS2015xs is equipped with two built-in 10GbE SFP+ ports and two 1GbE RJ-45 ports, entitling productivity-minded SMBs to lightning fast network connection that used to be the privilege of costly enterprise-grade servers. Enabled by Link Aggregation support, the maximized bandwidth can effortlessly handle intensive multi-tasking, such as simultaneously running multiple applications in a virtualized environment. Coming with native SATA III 6Gb/s support, DS2015xs further ensures the optimum data process under heavy system loading.
High reliability with redundancy mechanisms
The four LAN ports with failover support and hot-swappable drives ensure continual service uptime should the drives need replacement or unexpected LAN failure occurs. In addition, DS2015xs’ CPU benefits from a passive cooling design to avoid dependency upon a dedicated processor cooling fan, thus mitigating any critical point of failure. As to its hard drive fans, when the system detects a failure, the built-in redundancy mechanism will spin up the functional fan to properly ventilate the system
Robust scalability up to 120TB
DS2015xs easily scales up to 20 drives and can be expanded to a maximum 120TB raw capacity2 by using the DX1215 expansion unit. It securely connects to the Synology DX12153 with specially-designed expansion cable to ensure maximum throughput.
SSD cache technology
DS2015xs enables the combination of hard drives and SSD cache, boosting throughput efficiently while minimizing cost per gigabyte. With full SSD cache support, DS2015xs offers a significant reduction in I/O latency without crippling your budget. With only a small upfront investment, businesses can benefit from significant server performance enhancement.
Award winning OS - DiskStation Manager
Synology DiskStation Manager (DSM) is a sleek, browser-based operating system running on every DiskStation and RackStation, which makes managing your Synology NAS a breeze. Featuring an intuitive user interface, DSM makes accessing and sharing your data smarter and simpler. Synology's Package Center lets you download and install useful add-on packages designed specifically for individual or business needs, meaning you can enjoy more entertainment in your life or better productivity at work.
Fit into business environments easily
With the support of Windows AD, LDAP, and Domain Trust, DS2015xs enables seamless account integration. The User Home feature can automatically create a "home" folder for every user account to minimize the administrator's effort in repeatedly creating "home" folders for all accounts. Windows ACL support on DS2015xs allows IT administrators to fine tune access controls and set up privileges to files and folders on DS2015xs through the familiar Windows user interface. With compatibility for major protocols, DS2015xs can eliminate server configuration overhead and enhance IT administrators’ efficiency.
Seamless storage solution for virtualization environments
DS2015xs provides seamless storage solutions for virtualization environments, including VMware, Citrix, and Microsoft Hyper-V. With VMware vSphere® 5 & VAAI integration, DS2015xs helps offload specific storage operations and optimizes computation power in VMware environments. Windows ODX support speeds up data manipulation as the data transfer is offloaded. iSCSI also lets SMB users consolidate storage into data center storage arrays while providing hosts with the illusion of locally-attached disks.
Unified storage system
DS2015xs enables businesses to cost-effectively manage multi-protocol data by integrating file-level (NAS) and block-level (SAN) storage into one unified storage system. Files can be shared across Windows®, Mac®, and Linux® platforms seamlessly with comprehensive network protocol support (CIFS/SMB, AFP, and NFS). DS2015xs provides a cost-effective iSCSI solution, allowing large scale businesses to consolidate storage into data center storage arrays. With thin provisioning available for file-level iSCSI LUN, you can maximize storage utilization by oversubscribing provisions and grow storage space as needed.
Protection by LUN backup, snapshot, and clone
DS2015xs enhances the ease of moving and copying data in a virtualized environment with the features - LUN Backup, LUN Snapshot, and LUN Clone. DS2015xs offers iSCSI LUN backup at storage level without extra charge. Synology LUN Clone and LUN Snapshot only take up 1/1000 of the original size which highly optimizes storage usage. In addition, Synology's LUN Snapshot lets you create up 256 snapshots per LUN using point-in-time technology without having any impact on system performance. With better support to servers under VMware vSphere or Windows environment, IT managers can expect guaranteed VM status and data consistency through application-consistent snapshots.
Synology CMS (Central Management System)
For enterprises with more than one Synology NAS server, CMS offers the flexibility and convenience for IT administrators to manage all of them from a single point of entry. Through a simple interface, you can obtain a clear overview on resource consumption and logs, helping you identify any issue right away. With group policies, CMS can do much more for your daily tasks. Once a NAS joins a group, it will automatically adopt its rules and behave as intended, without extra configuration.
Increase business productivity with cloud solutions
With comprehensive cloud solutions, DS2015xs lets you create your own private cloud easily. Cloud Station is the perfect package to sync files across multiple devices. Files can be edited in offline mode and later synced to Cloud Station, which keeps up to 32 historical versions, allowing you to restore a file back to previous version or recover deleted files. With the mobile app DS cloud, any change made to a file is automatically synced to your smartphones and tablets. For distributed enterprises, Synology's 2-way sync between different DiskStations ensures employees at different locations share the same information in real-time. IT administrators can handpick individual folders that they want to sync to different devices, manually or automatically based on file format and size. Folders synced by Cloud Station can be encrypted on DSM — no one will be able to access its content without your private key.
Ensuring business continuity & reliability
Uninterrupted availability is a critical goal for all businesses. DS2015xs offers Synology High Availability (SHA) technology which combines an active and passive server into one cluster, the former always mirrored to the latter. Shared Folder Sync can replicate data in real-time to another Synology NAS at a remote location, giving your business the Recovery Time Objective (RTO) for prompt disaster recovery. With multiple LAN ports, DS2015xs also ensures redundancy in the event of unexpected network failure.
Secure your data
DS2015xs offers advanced security measures to protect you from potential security holes. Security Advisor analyzes system settings, password strength, network preferences and removes any possible malware. AppArmor blocks malicious programs from accessing unauthorized system resources. You can also customize the trust level in Package Center to avoid installing packages from untrusted sources, safeguarding your NAS from unknown or tampered files. In addition, DS2015xs provides other security add-ons, such as AES encryption, 2-Step verification, IP block & allow list, Antivirus packages, firewall, and DoS attack prevention.
SPECIFICATIONS | |
---|---|
Model Number | DS2015XS |
CPU SPECIFICATIONS | |
CPU Model | Annapuma Labs Alpine AL-514 |
CPU Frequency | Quad Core 1.7 GHz |
Floating Point | Yes |
Hardware Encryption Engine (AES-NI) | Yes |
MEMORY SPECIFICATIONS | |
System Memory | 4 GB DDR3 ECC |
Memory Module Pre-installed | 4 GB x 1 |
Total Memory Slots | 2 |
Memory Expandable up to | 8 GB (4 GB x 2) |
STORAGE SPECIFICATIONS | |
Drive Bay(s) | 8 |
Maximum Drive Bays with Expansion Unit | 20 |
Compatible Type | 3.5in SATA III / SATA II HDD 2.5in SATA III / SATA II HDD 2.5in SATA III / SATA II SSD |
Maximum Internal Raw Capacity | 48 TB (6 TB HDD x 8) (Capacity my vary by RAID types) |
Hot Swappable Drive | Yes |
EXTERNAL PORTS | |
USB 3.0 Port | 2 |
Expansion Port | 1 |
FILE SYSTEM | |
Internal Drives | EXT4 |
External Drives | EXT4 EXT3 FAT NTFS HFS+ |
APPEARANCE | |
Size (Height x Width x Depth) | 157 mm x 340 mm x 233 mm |
Weight | 5.21 kg/11.5 lb |
OTHERS | |
RJ-45 1GbE LAN Port | 2 (with Link Aggregation / Failover support) |
Wake on LAN/WAN | Yes |
SFP+ 10Gbe LAN Port | 2 (with Link Aggregation / Failover support) |
System Fan | 120 mm x 120 mm x 2 pcs |
Fan Speed Mode | Cool Mode Quiet Mode |
Easy Replacement System Fan | Yes |
Wireless Support (dongle) | Yes |
Noise Level | 424.1 dB(A) |
Power Recovery | Yes |
Scheduled Power On/Off | Yes |
Power Supply Unit / Adapter | 250W |
AC Input Power Voltage | 100V to 240V AC |
Power Frequency | 50/60 HZ, Single Phase |
Power Consumption | 47.44 W (Access) 22.98 W (HDD Hibernation) |
British Thermal Unit | 161.87 BTU/hr (Access) 78.41 BTU/hr (HDD Hibernation) |
Redundant Power Supply | Yes |
ENVIRONMENT TEMPERATURE | |
Operating Temperature | 5°C to 35°C (40°F to 95°F) |
Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
Relative Humidity | 5% to 95% RH |
Certification | FCC Class B CE Class B BSMI Class B |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 11.5 lb
Warranty: 5 Year Manufacturer
Brand New
5 Year Manufacturer Warranty
